[evlatests] Bad Pointing Behavior during Referenced Pointing

[Rick Perley]

     Alert readers will recall we discovered last summer a strange, new
feature in referenced pointing, in which a subset of antennas (always
the high numbered ones) headed far off the beam for the first 10 -- 20
seconds of a referenced pointing run.

     Some adjustments to timing were made, and a short test in September
indicated the problem had been fixed.

     But it hasn't, at least not completely.

     The 3C273 science/polarimetry test run, taken last Friday, included
22 referenced pointing observations.  All provided reasonable solutions,
and there were none of the failures which led to the discovery of the
problem noted above.  So the 'fix' put in a couple months ago has
definitely helped.

     However, closer examination of the data shows we still have a
residual effect, undoubtedly related to the root cause.

     The best way to see what the antennas are actually doing is to run
a 'CALIB' on the referenced pointing data.  The resulting gain solutions
will show the familiar five antenna positions.  The data dump time is 1
second, and we spend 20 seconds at each position.  I used AIPS, so the
smallest plotted values refer to the higher (closer to beam center)
location.

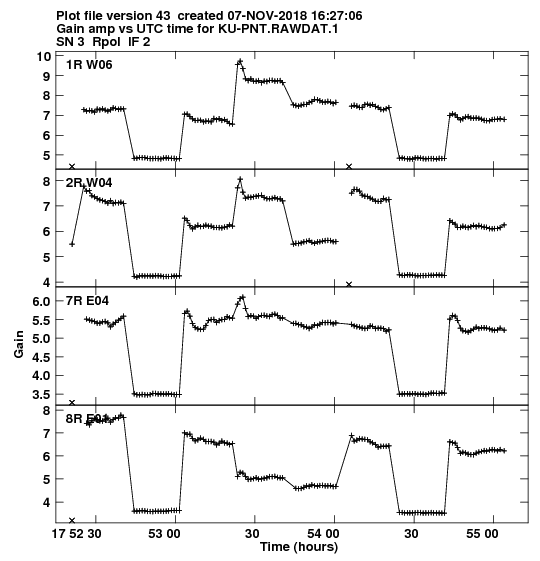

     An example, using four 'new-ACU' antennas is shown in the attached
figure: 'New-Flags.png'.  These solutions come from the flagged data.
Except for a modest overshoot in three antennas (near 17:53:22 ), the
data are excellent.

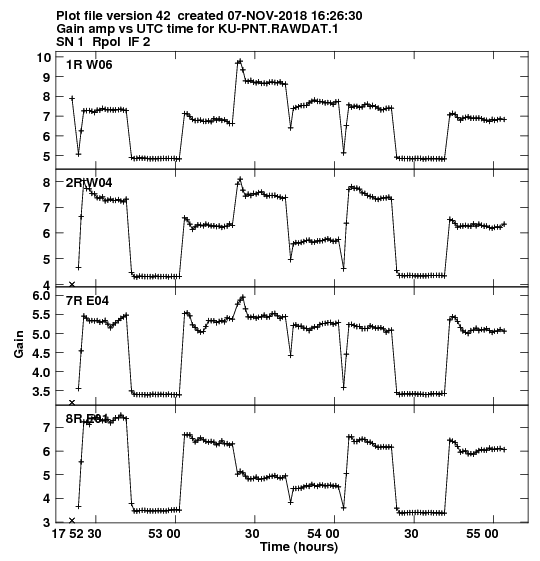

     It is useful to view the unflagged data from these same four
antennas -- shown in 'New-NoFlags.png'.  The additional points are all
lower in amplitude, and hence higher in correlation.  They reflect the
antenna motion from one offset to the next, when the motion takes the
antenna beam through the source.

     All 'new-ACU' antennas performed flawlessly.

     Not so the 'old-ACU' antennas.

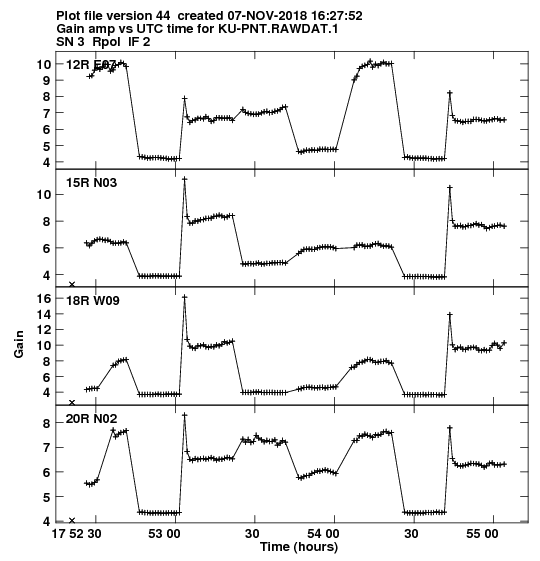

     Look first at 'Old-Flags.png'.  This shows the gain solutions using
unflagged data only.  The top two plots (ea12 and ea15) show normal
behavior for these old systems:  the high gain 'spikes' reflect the
antennas' overshoot when moving from point to point -- the encoders
think the antenna is on source, but the antenna's 2 Hz oscillations,
which last a few seconds, are reflected in the variant gains.

     The bottom two plots show the issue at hand:  For the first offset
point (centered near 17:52:35), there are *two different values* in the
same offset position.  Examination of all the plots show that antennas
numbered less than 18 behave correctly, while all antennas numbered
higher than 17 behavior badly.

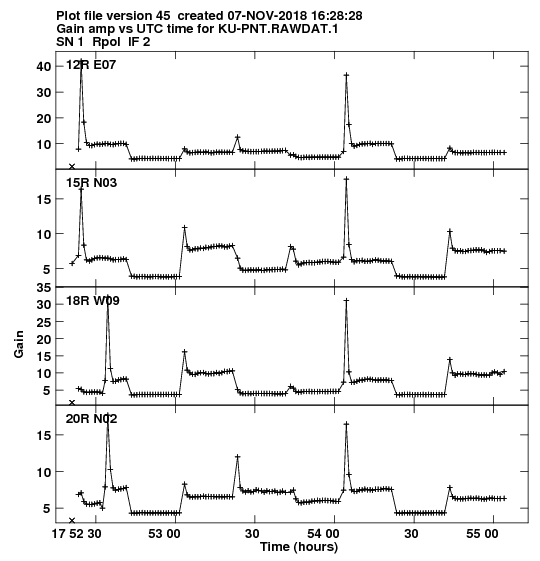

     A better idea of what is going on comes from perusal of the last
plot:  Old-NoFlags.png.  All antennas show high gain spikes at the
beginning of the 5-point cycle:  The amplitude of these spikes is large
-- they tell us the antenna gain is low by a factor of ~ 4 -- or a
factor of 16 in power!  This is a driven motion -- the antennas
initially head off away from the beam, but only for about 2 seconds.
The error is quickly corrected, and the antenna is at the correct
location about 5 seconds after the start of the cycle.  The preceding
description is correct for low numbered antennas.

     Antennas 18 and up behave differently:  For these, the antennas
don't move for 10 seconds, they then move off source for about two
seconds -- this erroneous motion is quickly corrected, and the antennas
move to the correct position, about 5 seconds before the end of the
20-second scan.

     Note that this only happens on the initial 5-point pointing
raster.  The duration was long enough for a second raster to begin
(starting at 17:54:03), and for this, all is normal.

     Also note that this errant behavior occurred on about 5 of the 22
individual referenced pointing runs.

     One more thing to note:  For that first scan with the two different
values, examination of the amplitudes shows that in every case, the
amplitude is the same as that of the 5th (and last) raster point!  It
appears that these antennas are erroneously on the wrong offset position.

-------------------------------------------------------------------------

     What is the effect of this problem?  Happily, it seems to have no
effect at all.  Bryan looked at the TelCal code, and found that the
initial pointing position is not used.  (A very wise decision!).

     Because the old antennas oscillate for a few seconds, it would be
good if the first ~5 seconds of all positions were also not utilized --
especially for the 'old-ACU' antennas.  This would prevent the
'overshoots' (which are not flagged by the system) from sneaking into
the solution.
