Hello Eric Greisen,

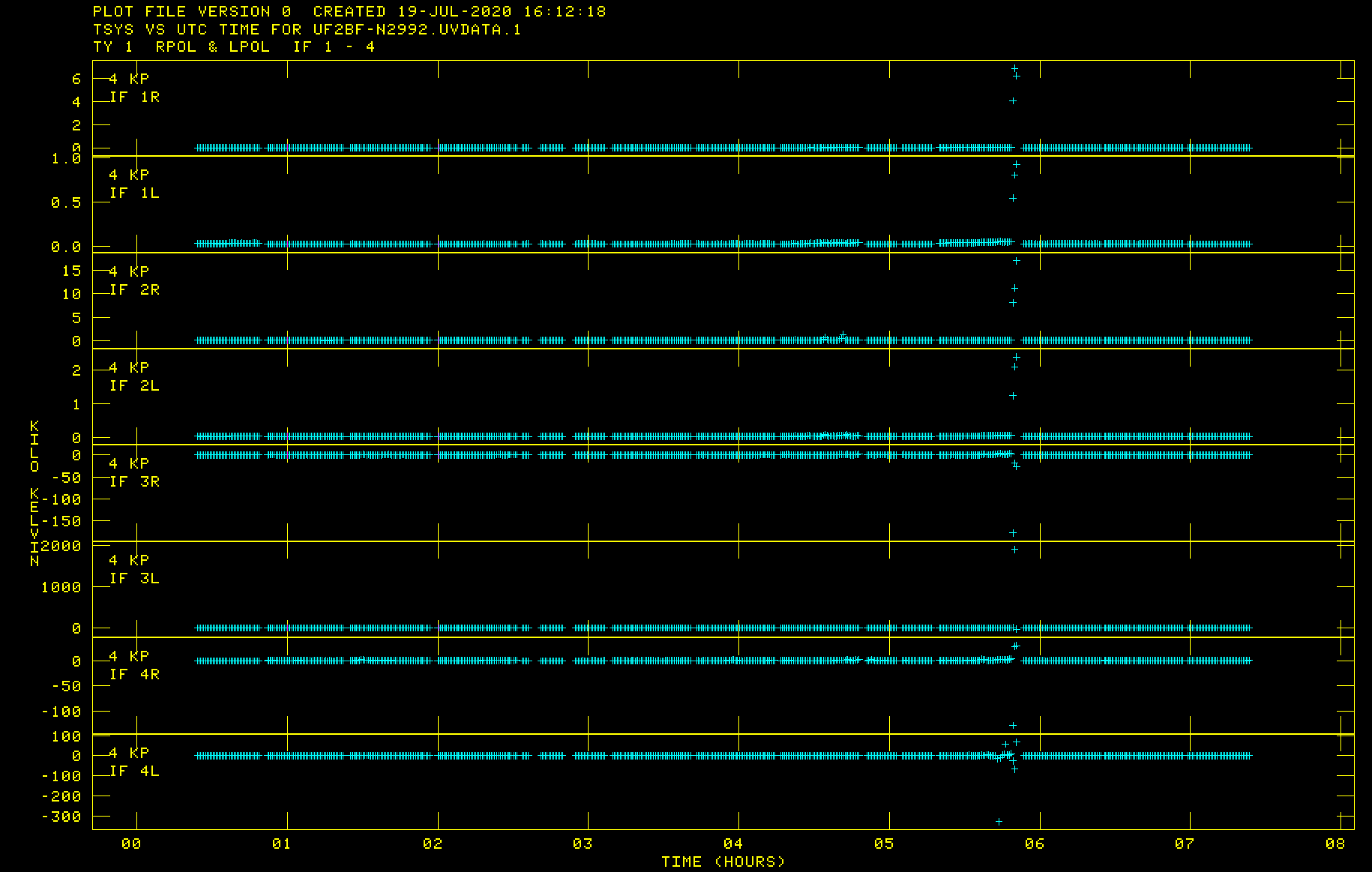

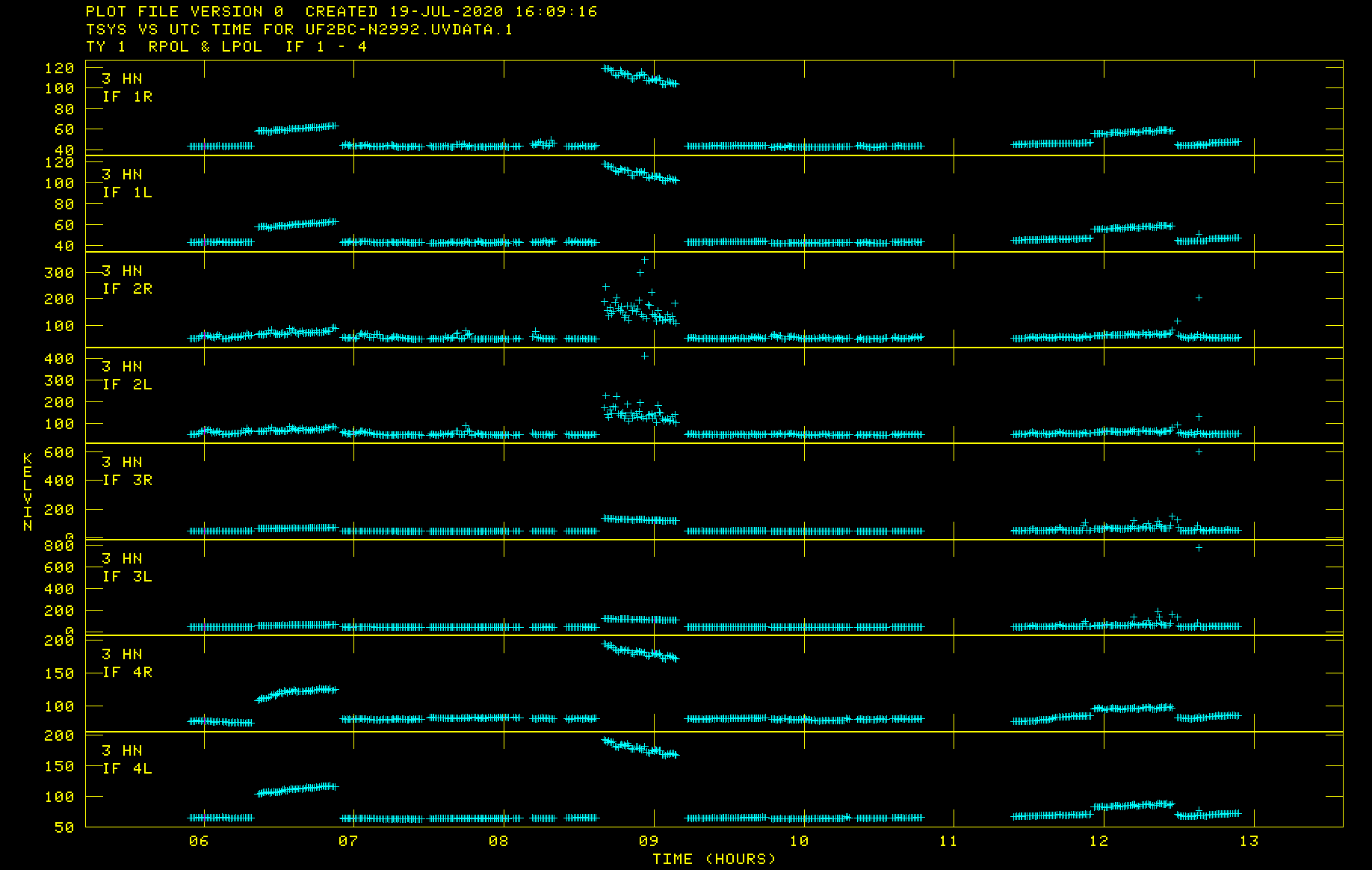

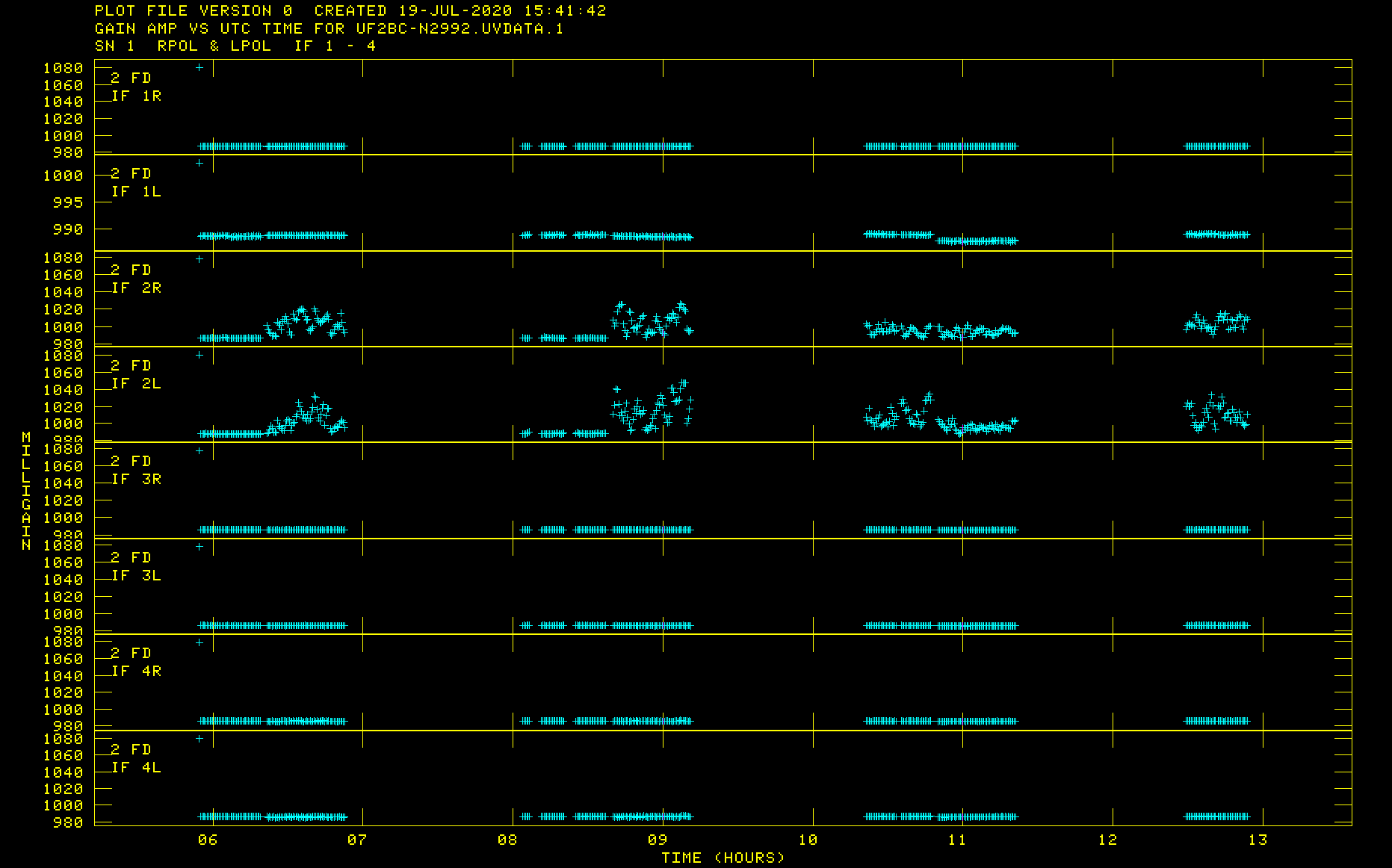

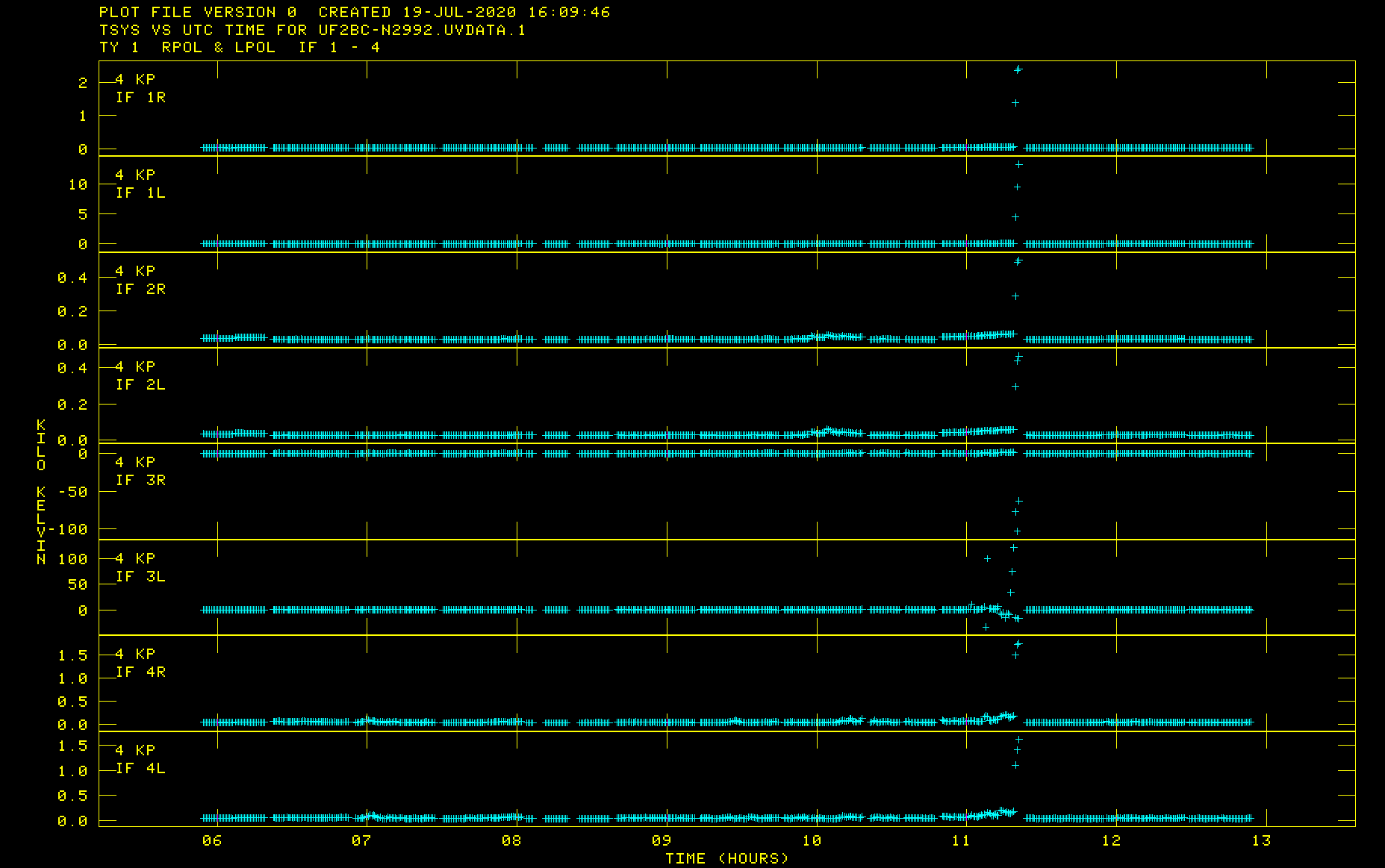

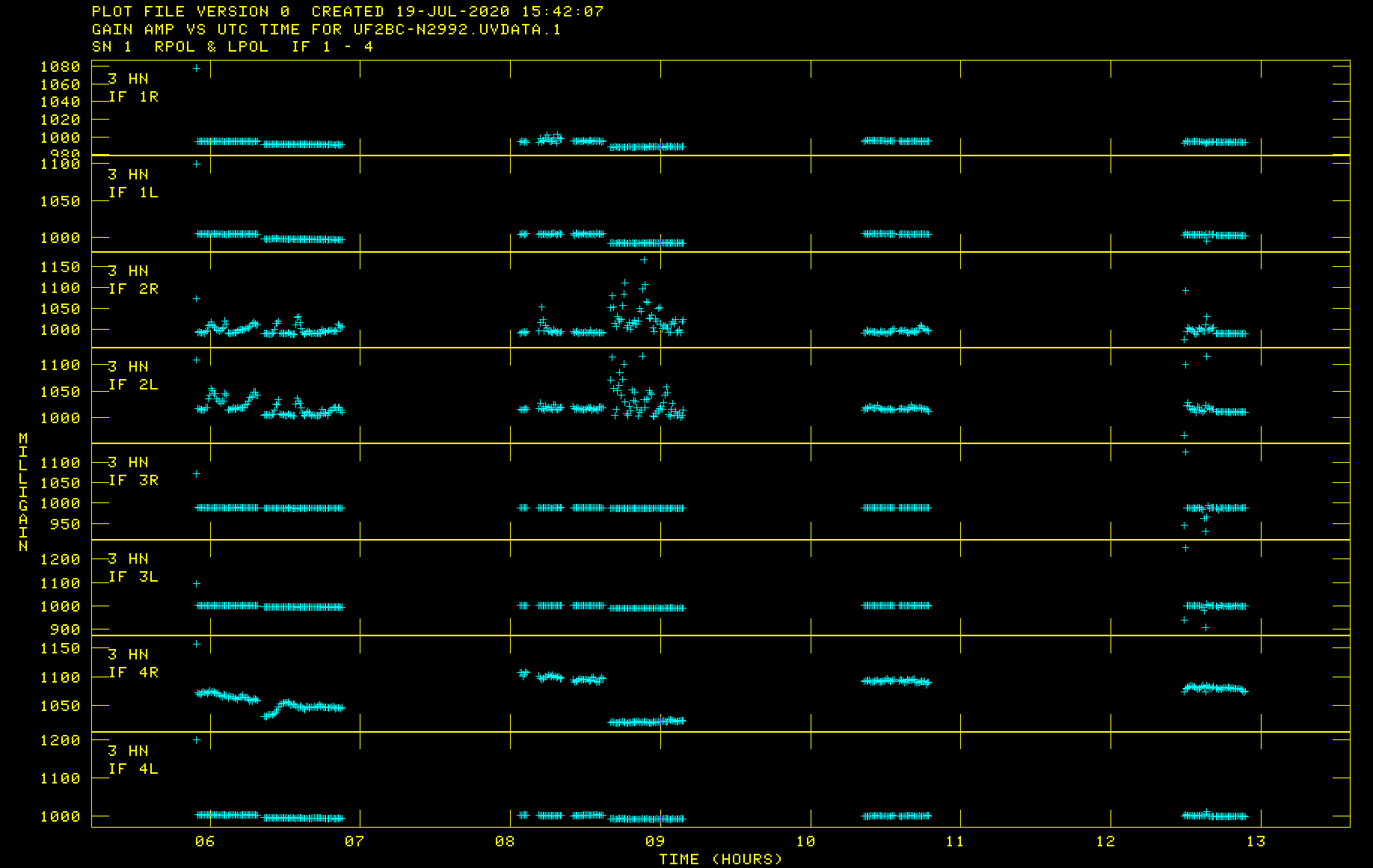

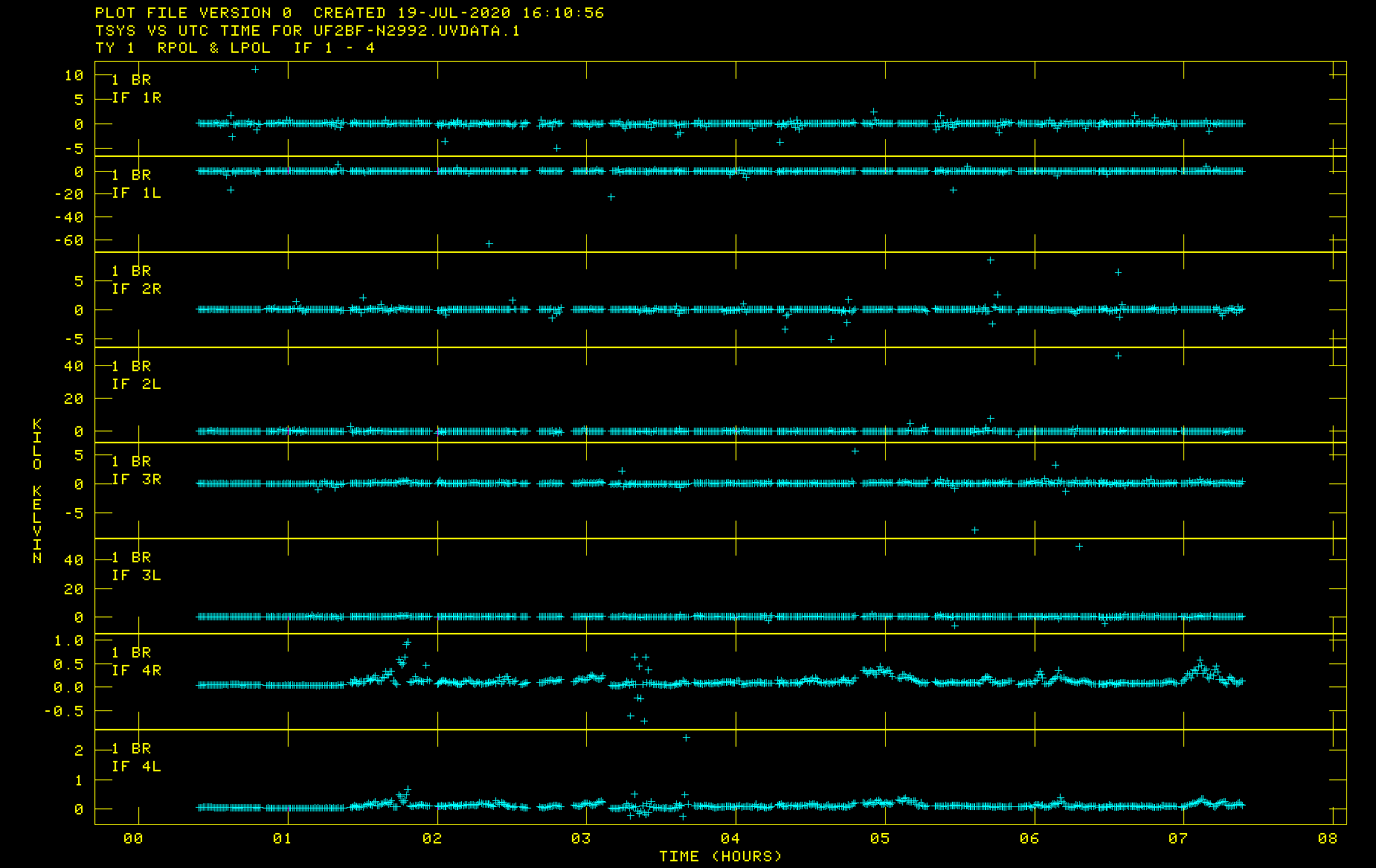

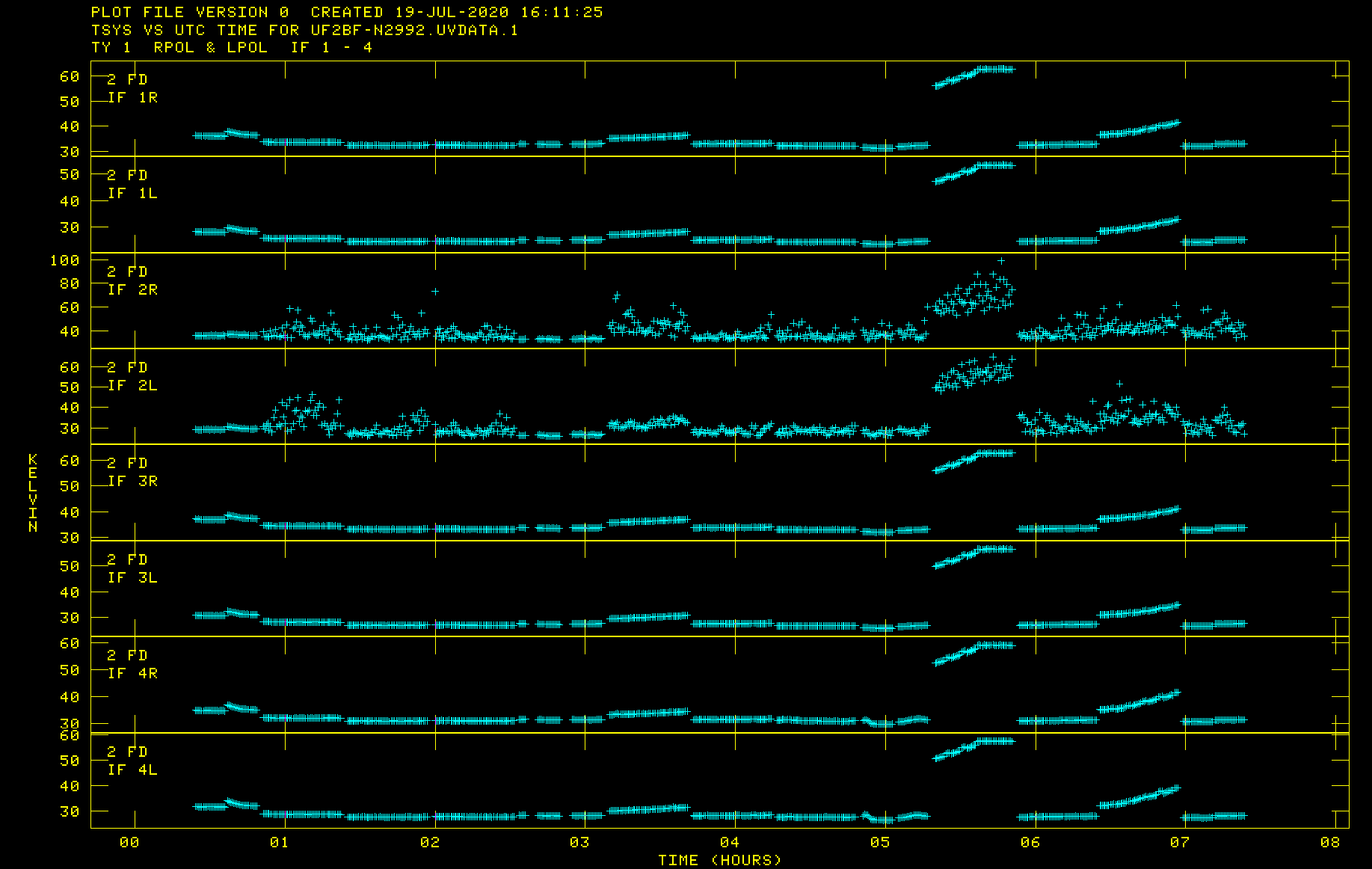

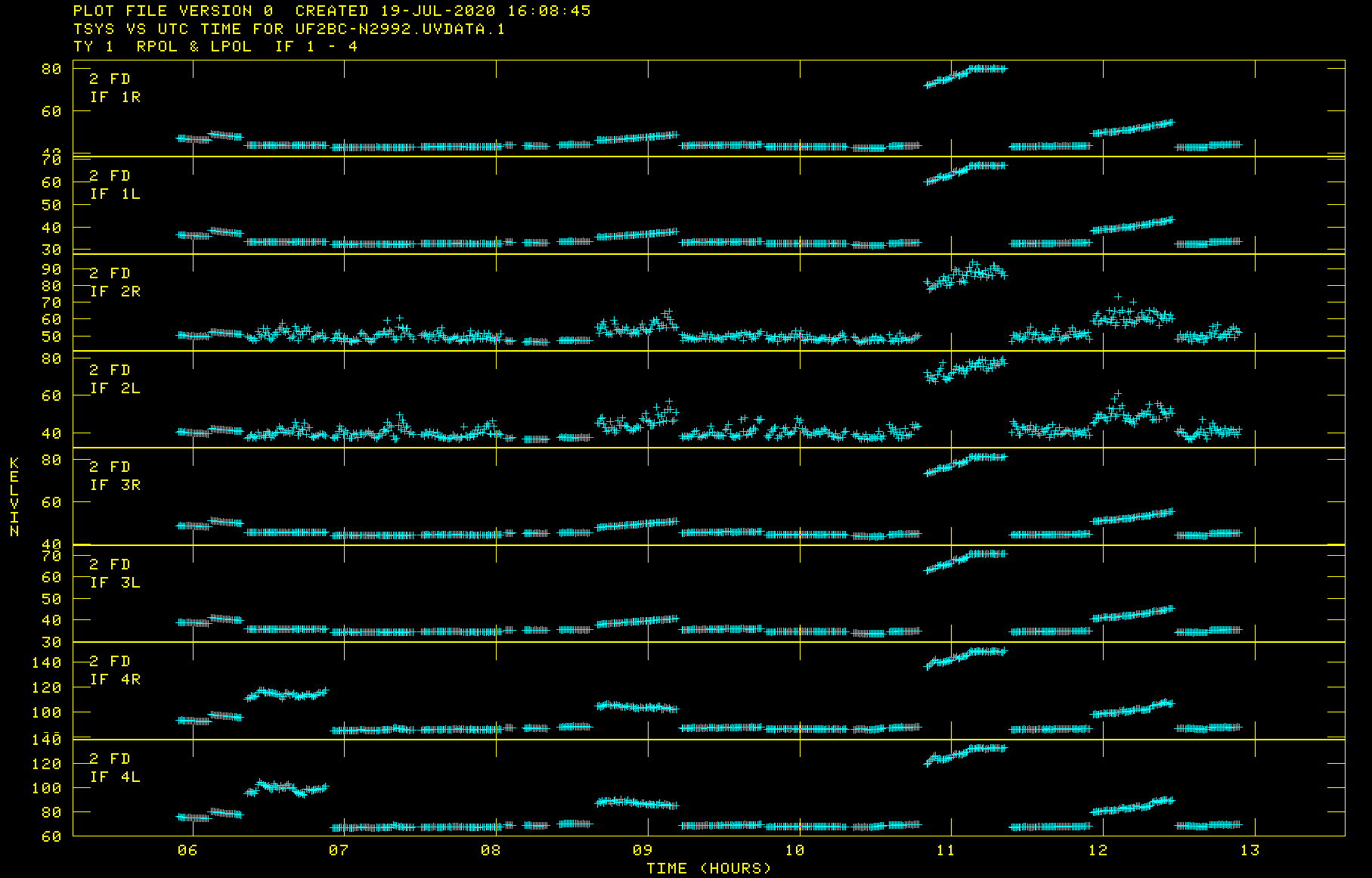

I took screen shots comparing two different datasets UF002BC (One of the problem data sets) and UF002BF (One of the best data sets) for both the SN table after running the task VLBACCOR as well as the TY table. I have attached them and only included 4 out of the 10 antennas for reference. They do seem to have similarities.
I also tried to rework fresh data from UF002BC by flagging out any bad data points using the task SNEDT for the TY table, Flagging any data under an elevation of 10 degrees as well as IF 4 (since this has an issue with phase) using the task UVFLG, and flagging out any frequencies that have RFI at different baselines before performing any calibrations using the task WIPER. There is an increase in the Integrated flux, but not significantly. For NGC 3079, this increased the Integrated Flux from originally 13.6 mJy to 14.4 mJy, but the uncertainty is 1 mJy for both. The Peak also increases from 3.01 +/- 0.18 mJy/beam to 3.78 +/- 0.22 mJy/beam. As for its phase calibrator J0956+5753, the Integrated Flux increases from 40.4 +/- 3 mJy to 42.2 +/- 1.9 mJy with a Peak increase from 26.6 +/- 1.2 mJy/beam to 31.0 =/- 0.91 mJy/beam. Which are both close to each other and not much of an increase, although the phases look much better than before and the RMS values did improve as well. It is still not accounting for the large difference in amplitude compared to the other data sets.
Could issues with the data in IF 4 cause this much of a drop in overall intensity or propagate errors to the other IF windows?
Thank you again for your help,
Luis Fernandez

------------------------------------------------------
Staff CP:  https://help.nrao.edu/staff
-------------- next part --------------
An HTML attachment was scrubbed...
URL: <http://listmgr.nrao.edu/pipermail/daip/attachments/20200720/c9c9ecf6/attachment-0001.html>
-------------- next part --------------
A non-text attachment was scrubbed...

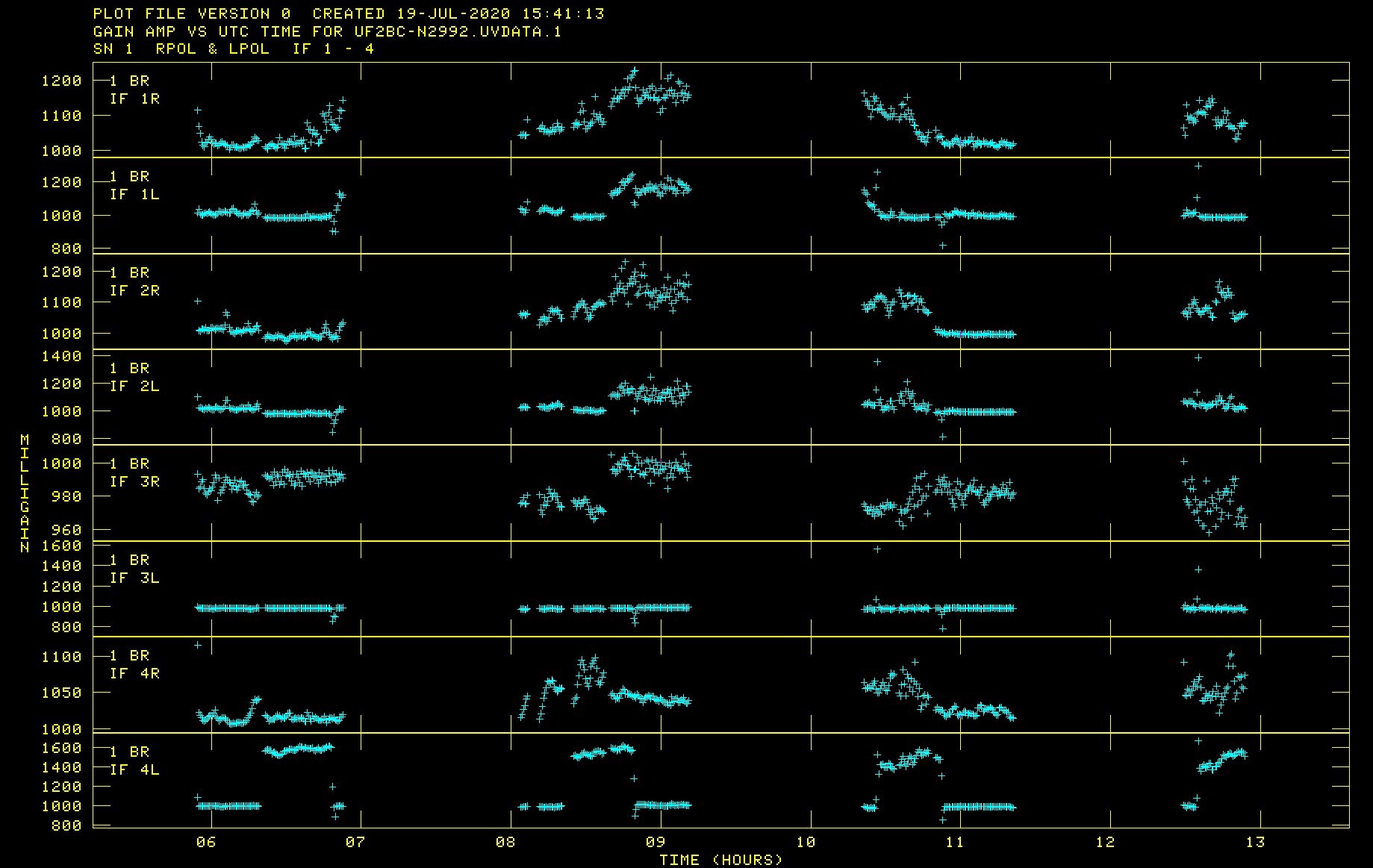

Name: SN_BR_UF002BC.png
Type: image/png
Size: 41102 bytes
Desc: not available
URL: <http://listmgr.nrao.edu/pipermail/daip/attachments/20200720/c9c9ecf6/attachment-0016.png>
-------------- next part --------------
A non-text attachment was scrubbed...

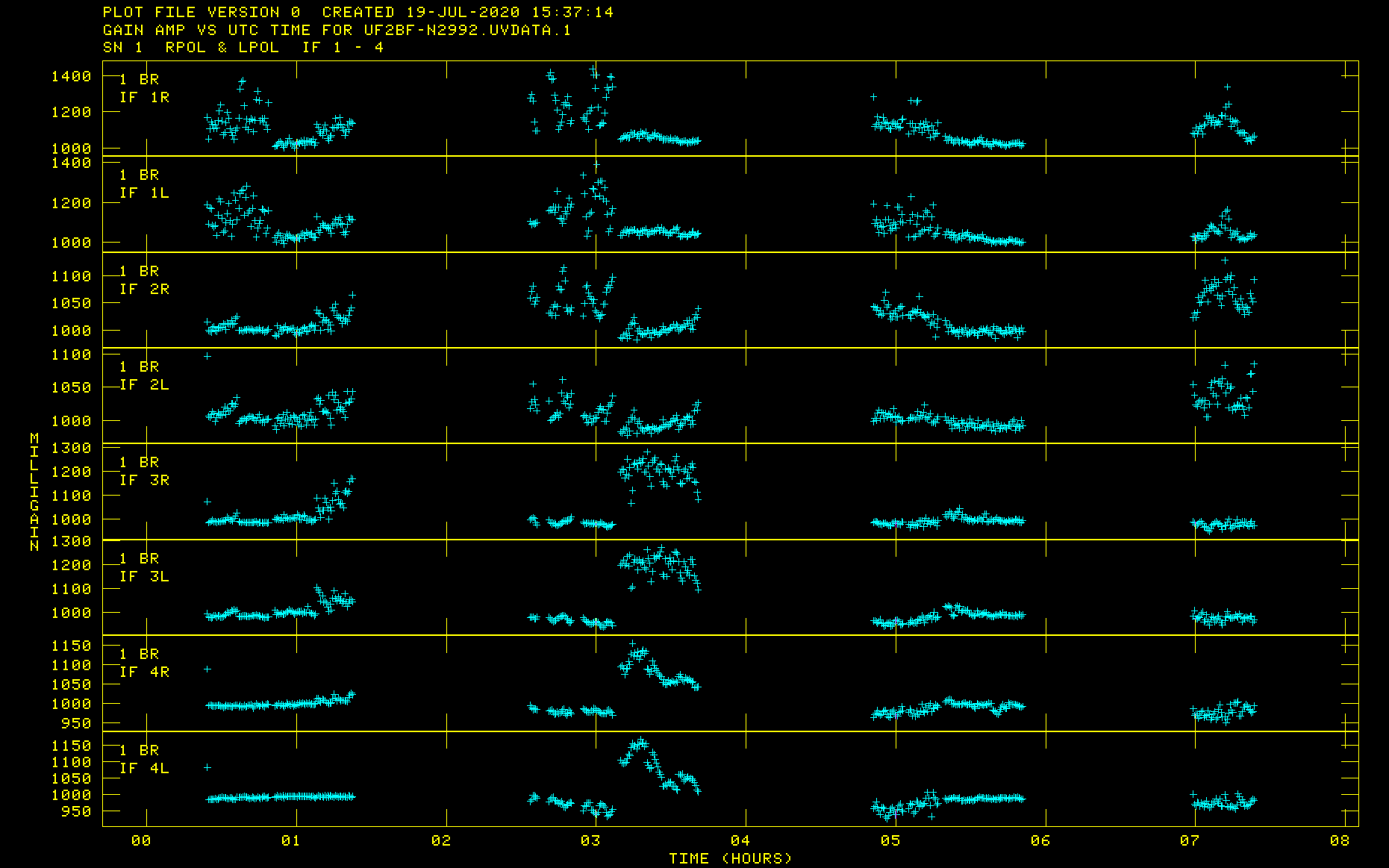

Name: SN_BR_UF002BF.png
Type: image/png
Size: 45204 bytes
Desc: not available
URL: <http://listmgr.nrao.edu/pipermail/daip/attachments/20200720/c9c9ecf6/attachment-0017.png>
-------------- next part --------------
A non-text attachment was scrubbed...
Name: SN_FD_UF002BC.png
Type: image/png
Size: 29385 bytes
Desc: not available
URL: <http://listmgr.nrao.edu/pipermail/daip/attachments/20200720/c9c9ecf6/attachment-0018.png>
-------------- next part --------------
A non-text attachment was scrubbed...

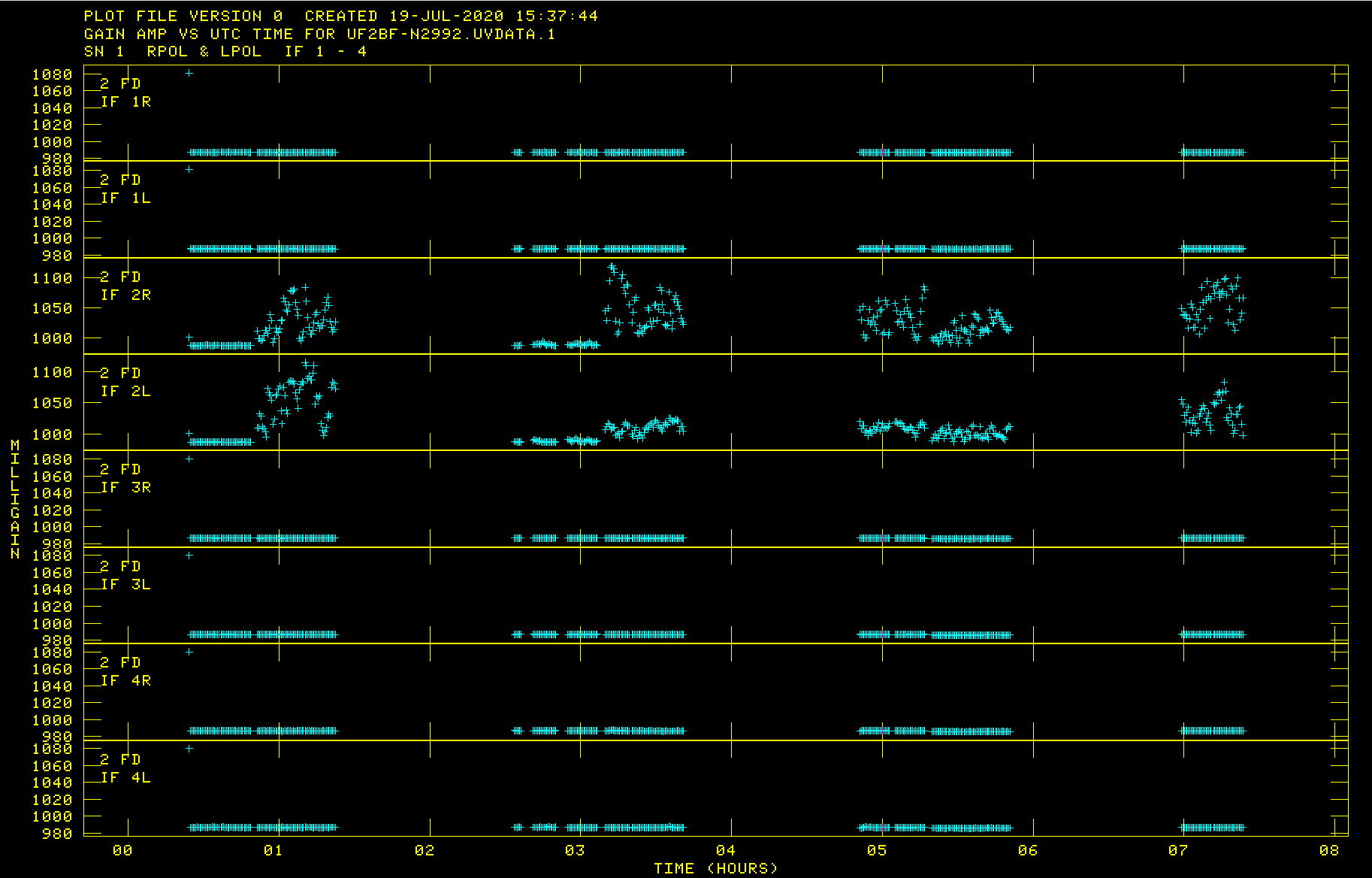

Name: SN_FD_UF002BF.png
Type: image/png
Size: 29497 bytes
Desc: not available
URL: <http://listmgr.nrao.edu/pipermail/daip/attachments/20200720/c9c9ecf6/attachment-0019.png>
-------------- next part --------------
A non-text attachment was scrubbed...
Name: SN_HN_UF002BC.png
Type: image/png
Size: 28166 bytes
Desc: not available
URL: <http://listmgr.nrao.edu/pipermail/daip/attachments/20200720/c9c9ecf6/attachment-0020.png>
-------------- next part --------------
A non-text attachment was scrubbed...

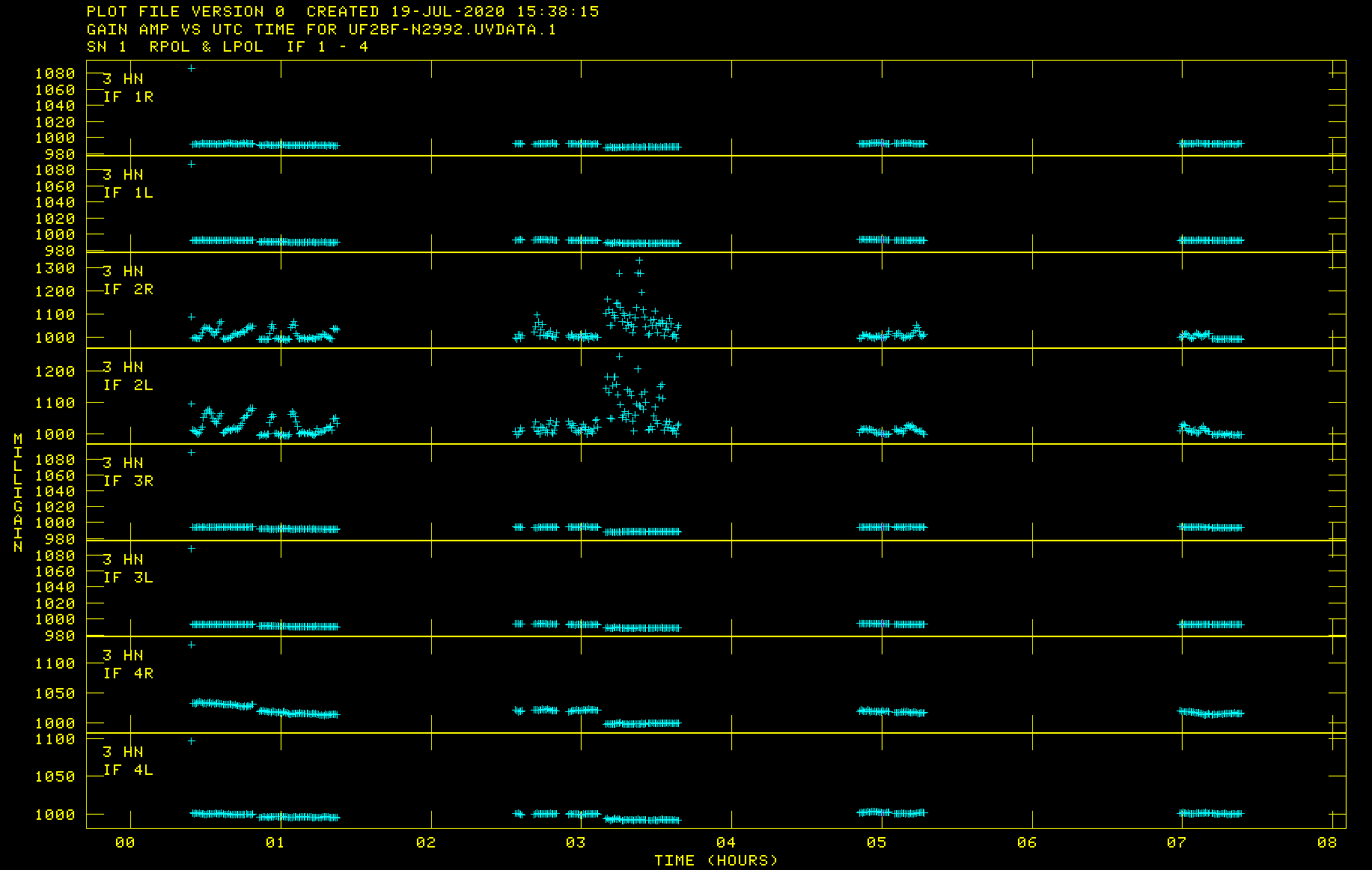

Name: SN_HN_UF002BF.png
Type: image/png
Size: 29445 bytes
Desc: not available
URL: <http://listmgr.nrao.edu/pipermail/daip/attachments/20200720/c9c9ecf6/attachment-0021.png>
-------------- next part --------------
A non-text attachment was scrubbed...

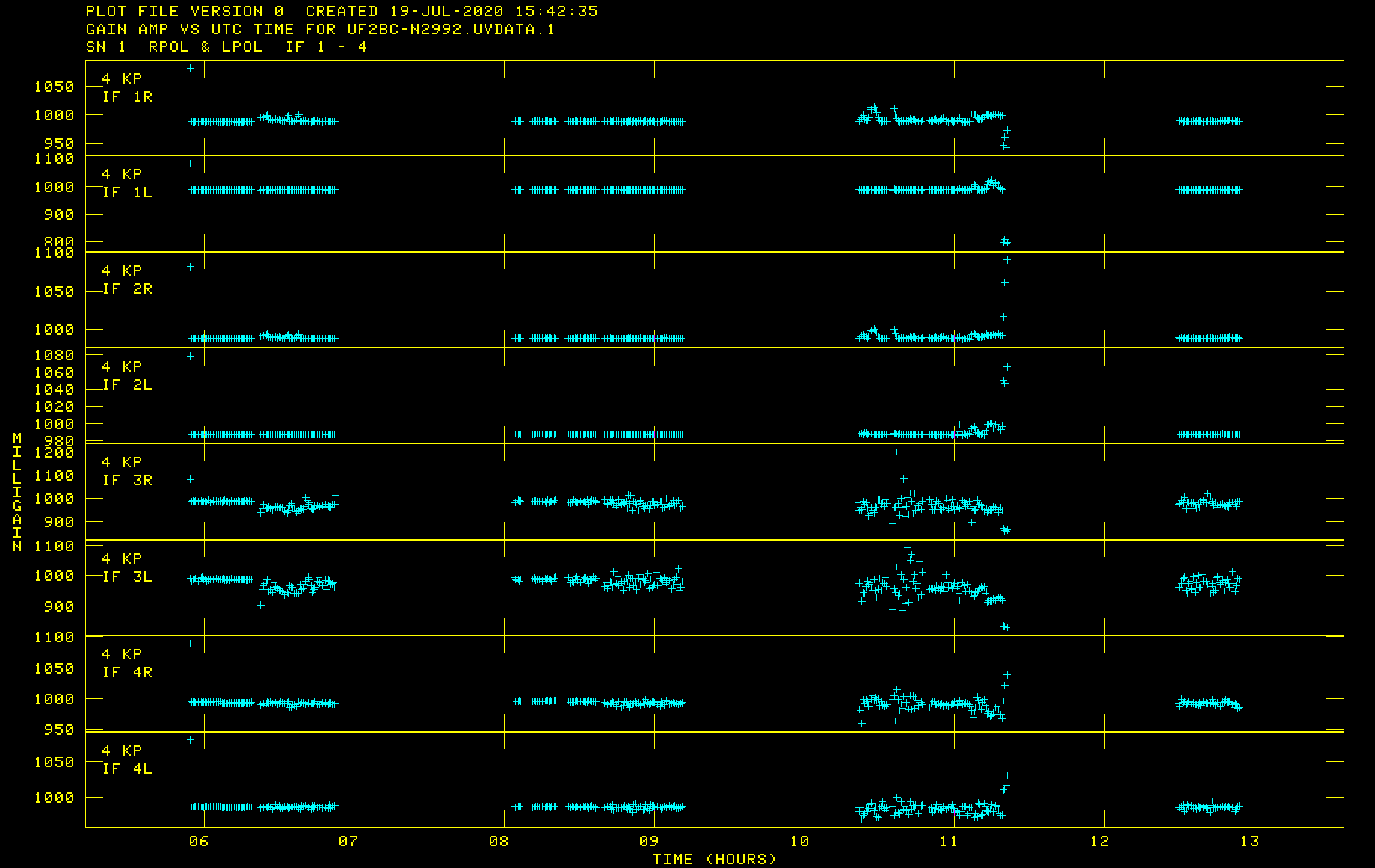

Name: SN_KP_UF002BC.png
Type: image/png
Size: 33012 bytes
Desc: not available
URL: <http://listmgr.nrao.edu/pipermail/daip/attachments/20200720/c9c9ecf6/attachment-0022.png>
-------------- next part --------------
A non-text attachment was scrubbed...

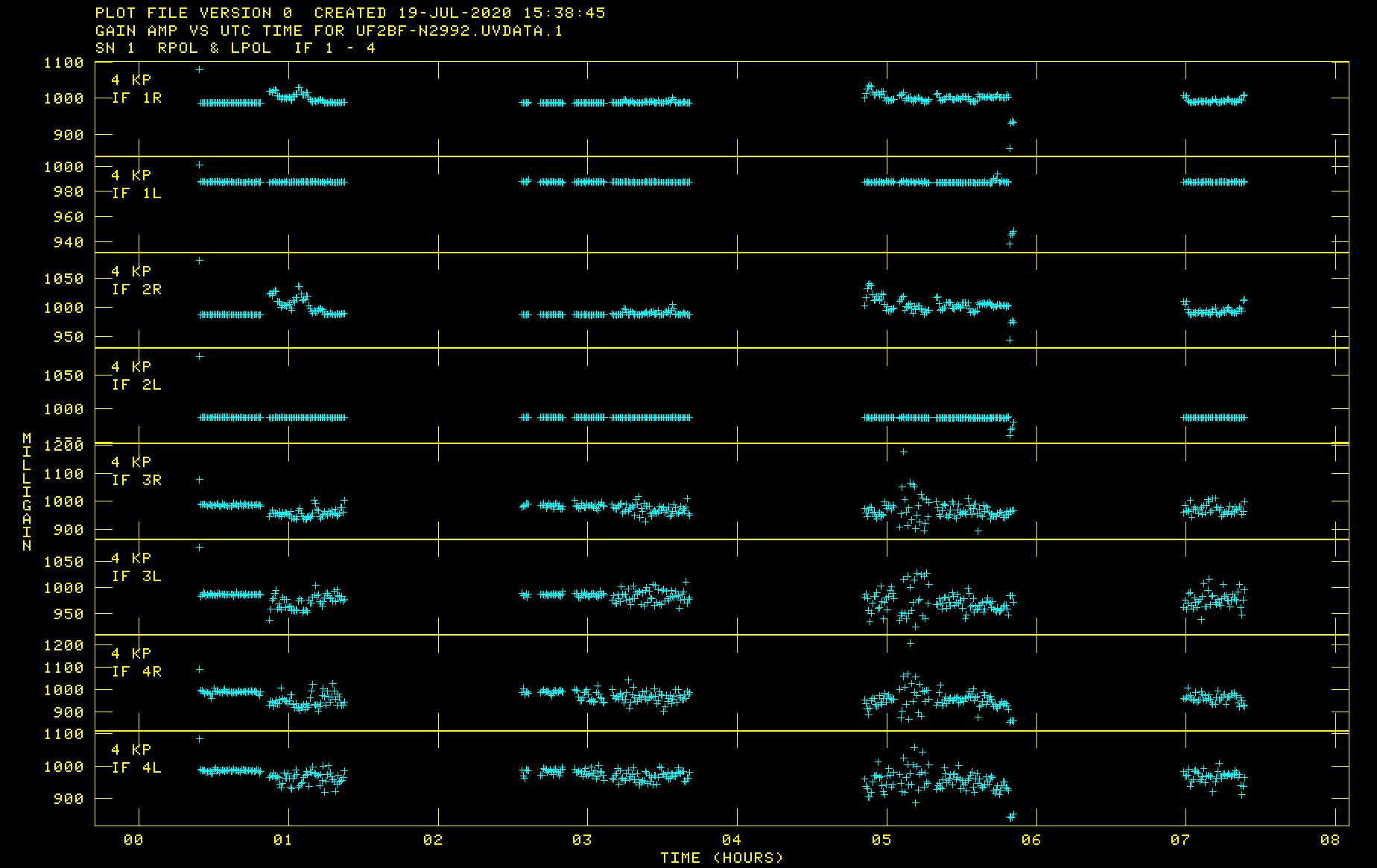

Name: SN_KP_UF002BF.png
Type: image/png
Size: 37439 bytes
Desc: not available
URL: <http://listmgr.nrao.edu/pipermail/daip/attachments/20200720/c9c9ecf6/attachment-0023.png>
-------------- next part --------------
A non-text attachment was scrubbed...

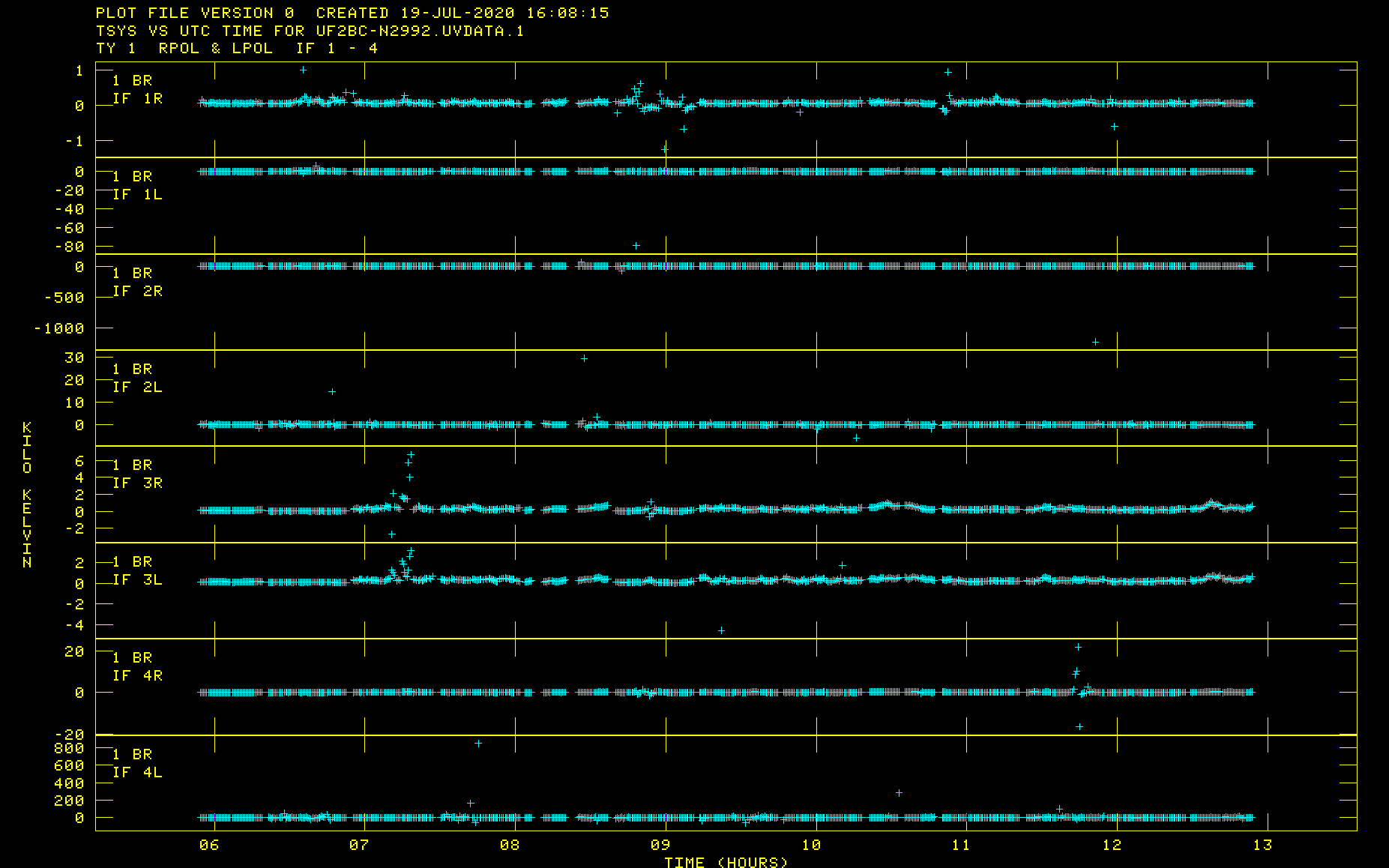

Name: TY_BR_UF002BC.png
Type: image/png
Size: 30244 bytes
Desc: not available
URL: <http://listmgr.nrao.edu/pipermail/daip/attachments/20200720/c9c9ecf6/attachment-0024.png>
-------------- next part --------------
A non-text attachment was scrubbed...
Name: TY_BR_UF002BF.png
Type: image/png
Size: 34777 bytes
Desc: not available
URL: <http://listmgr.nrao.edu/pipermail/daip/attachments/20200720/c9c9ecf6/attachment-0025.png>
-------------- next part --------------
A non-text attachment was scrubbed...
Name: TY_FD_UF002BC.png
Type: image/png
Size: 41896 bytes
Desc: not available
URL: <http://listmgr.nrao.edu/pipermail/daip/attachments/20200720/c9c9ecf6/attachment-0026.png>
-------------- next part --------------
A non-text attachment was scrubbed...
Name: TY_FD_UF002BF.png
Type: image/png
Size: 40917 bytes
Desc: not available
URL: <http://listmgr.nrao.edu/pipermail/daip/attachments/20200720/c9c9ecf6/attachment-0027.png>
-------------- next part --------------
A non-text attachment was scrubbed...
Name: TY_HN_UF002BC.png
Type: image/png
Size: 35494 bytes
Desc: not available
URL: <http://listmgr.nrao.edu/pipermail/daip/attachments/20200720/c9c9ecf6/attachment-0028.png>
-------------- next part --------------
A non-text attachment was scrubbed...

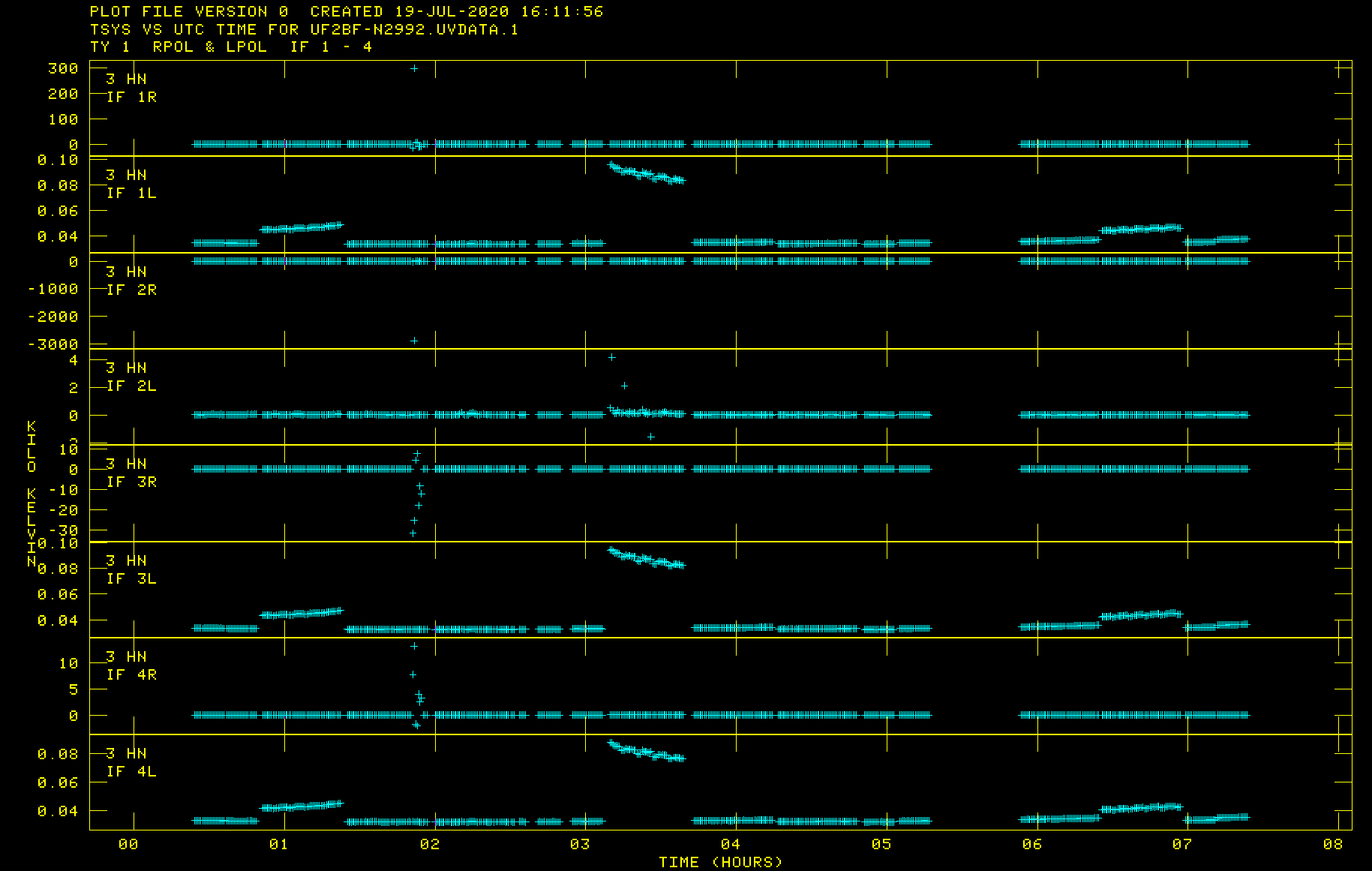

Name: TY_HN_UF002BF.png
