[daip] Flagging clean components

[Andy Biggs]

Hi Eric. My inputs to UVSUB look pretty standard, but one strange thing is
that INVER=0 does possibly do the right thing i.e. it reports that a
smaller number of clean components are being used than if I use the
unflagged CC table. However, INVER=2 or =3 give me that strange error
message about using an image as opposed to clean components.

As background, what I've done is, for a set of fly's eye fields, to take
the CC file from IMAGR and create two new CC tables, one containing
components that are to the west of the pointing centre and one with
components that are to the east. Don't ask.

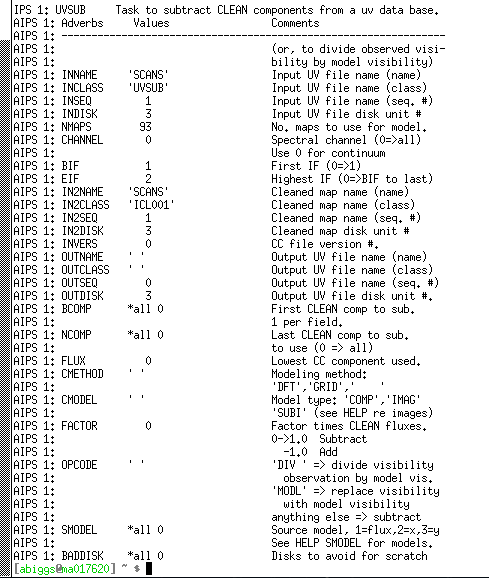

I've had to attach my inputs as a screenshot as this mail program is
insisting on screwing up the formatting.

Andy

On 31/05/2012 19:25, "Eric Greisen" <egreisen at nrao.edu> wrote:

>Andy Biggs wrote:
>> Hi. I flagged some clean components using TAFLG, but it seems that the
>> resulting CC table cannot be read by CCNTR or UVSUB. Both complain that
>> there are no clean components in the resulting file:
>>
>> localh> CCNTR1: Task CCNTR  (release of 31DEC12) begins
>> localh> CCNTR1: Start drawing Clean components
>> localh> CCNTR1: IO ERROR    0 IN CC TABLE FILE
>> localh> CCNTR1: End labeling, start contouring
>> localh> CCNTR1: Start contouring
>> localh> CCNTR1: Appears to have ended successfully
>>
>> localh> UVSUB1: Task UVSUB  (release of 31DEC12) begins
>> localh> UVSUB1: You are using a non-standard program
>> localh> UVSUB1: SETGDS: imaging done with reprojected tangent point(s)
>> localh> UVSUB1: Using images for the source model
>> localh> UVSUB1: YOU ARE USING A CLEAN IMAGE FOR A MODEL
>> localh> UVSUB1: THIS SHOULD NOT MATCH THE DATA AT ALL WELL
>I have put back a corrected CCNTR - it will be available in tomorrow's
>MNJ.
>
>I tested UVSUB and it seemed happy with various edited CC tables so I
>continue to suspect that something else is happening there.  (It is a
>much more heavily used region of the code than CCNTR and so would have
>had bugs like this ironed out.)
>
>Eric Greisen

-------------- next part --------------
A non-text attachment was scrubbed...
Name: uvsub.png
Type: image/png
Size: 26050 bytes
Desc: uvsub.png
URL: <http://listmgr.nrao.edu/pipermail/daip/attachments/20120531/546de49e/attachment.png>
