Here's some pics I sent to Bryan documenting the missing panel, and the
weather that caused it.
Not quite clear it is at one of the 'cardinal' points on the edge.
And it can't explain both of your bad edge panels in the holography, of
course!
-George
-------- Forwarded Message --------
Subject: missing panel pics
Date: Thu, 31 Oct 2019 09:24:42 -0600
From: George Moellenbrock <gmoellen at nrao.edu>
To: Bryan Butler <bbutler at nrao.edu>
Hi Bryan-
I attach some pics of the missing panel.

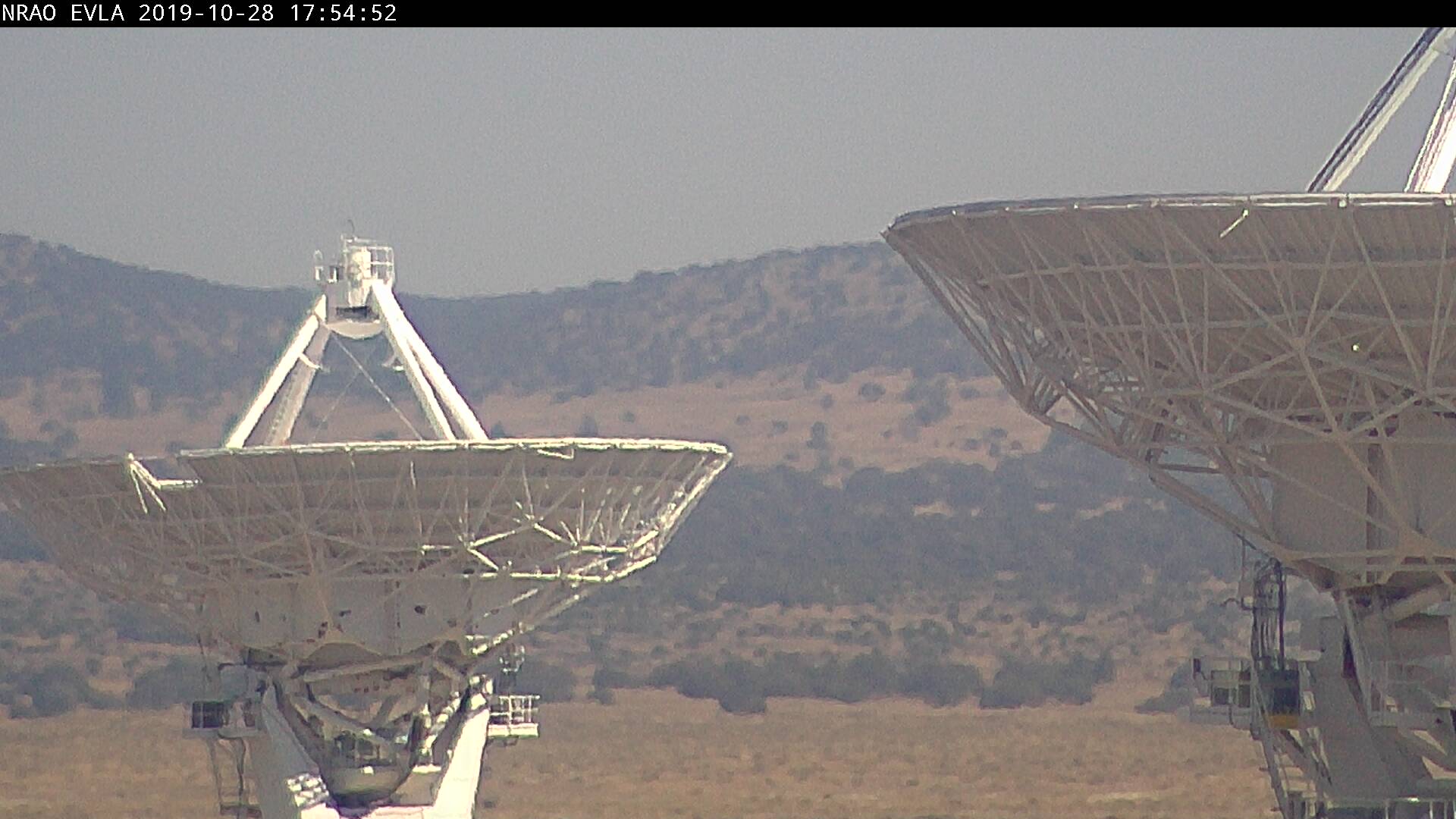

missing_panel2.jpg is an early close-up (when I noticed the missing
panel; someone else had zoomed the camera)

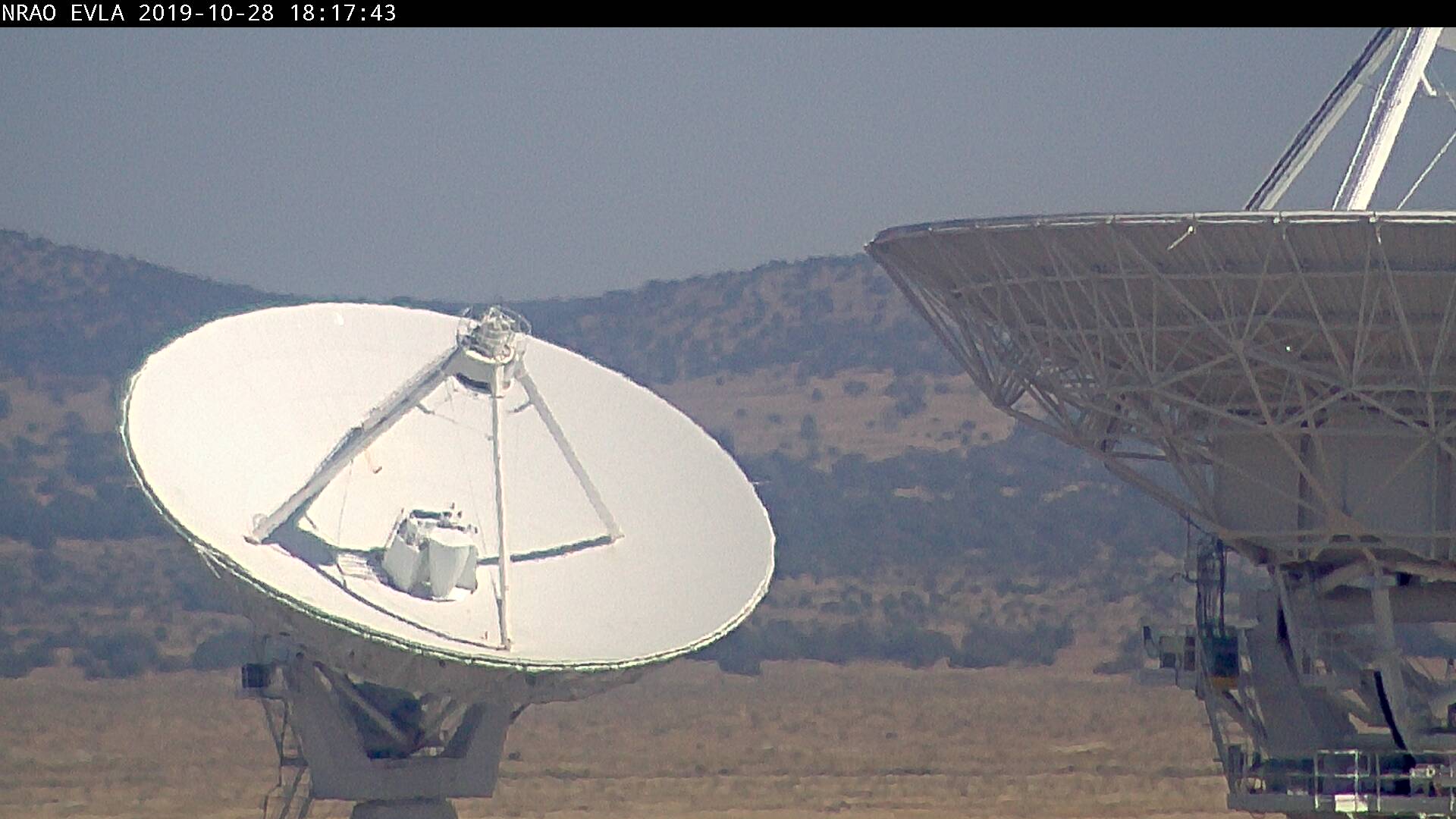

missing_panel3.jpg shows the panel lying near the center of the dish to
the left of the feed housing.

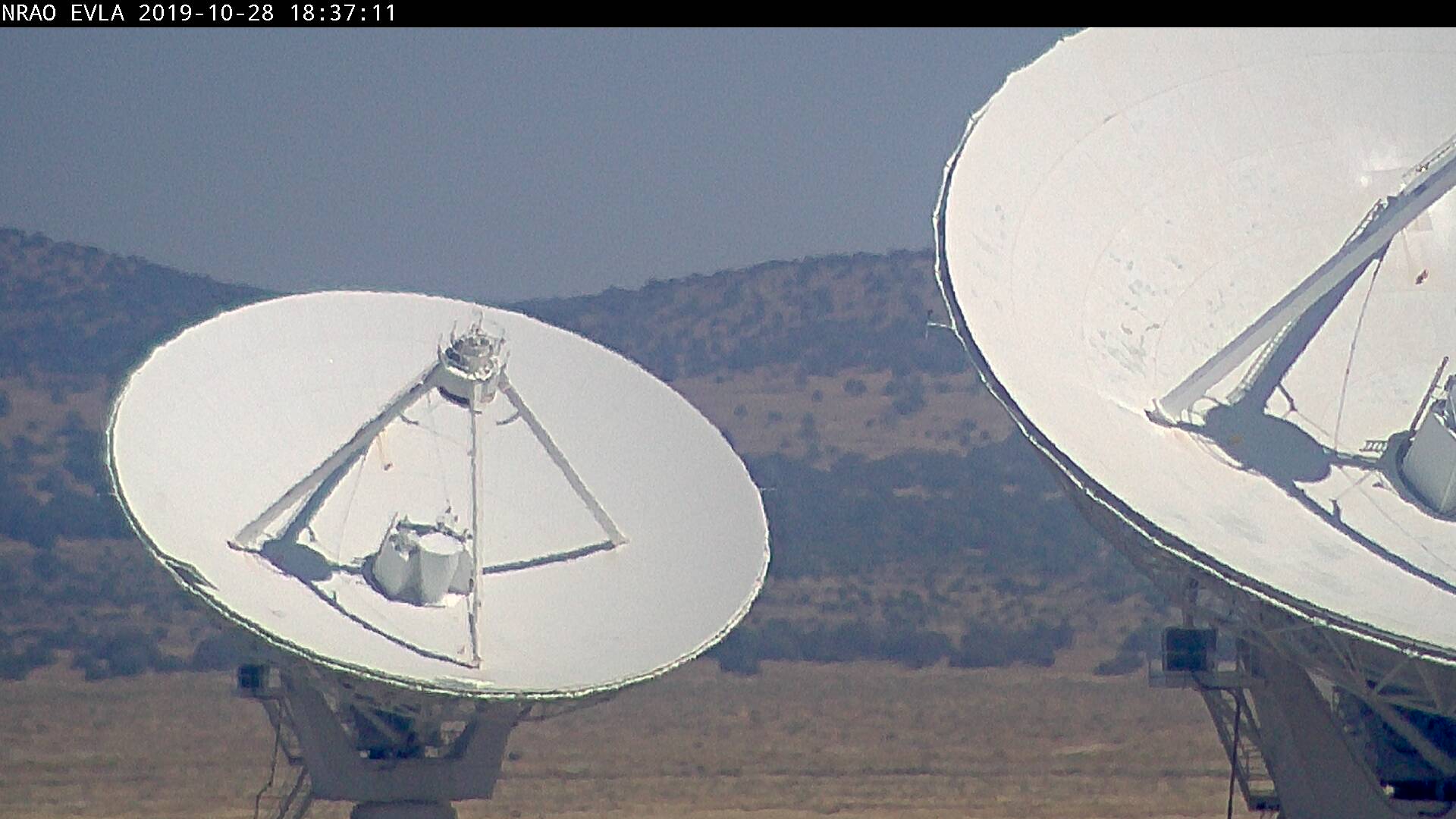

missing_panel5.jpg shows the panel has slid to the edge of the dish; at
this point, Vivek and I called the operator to have the antenna stowed
and the panel retrieved
BeforeAfter.gif toggles between UTC=150859 and 150910, which shows when
it actually happened: ~9:09am MDT. (Enlarged from web cam photos I was
capturing at a wide angle to observe the move into D-array--alas
frustrated by the wind.)

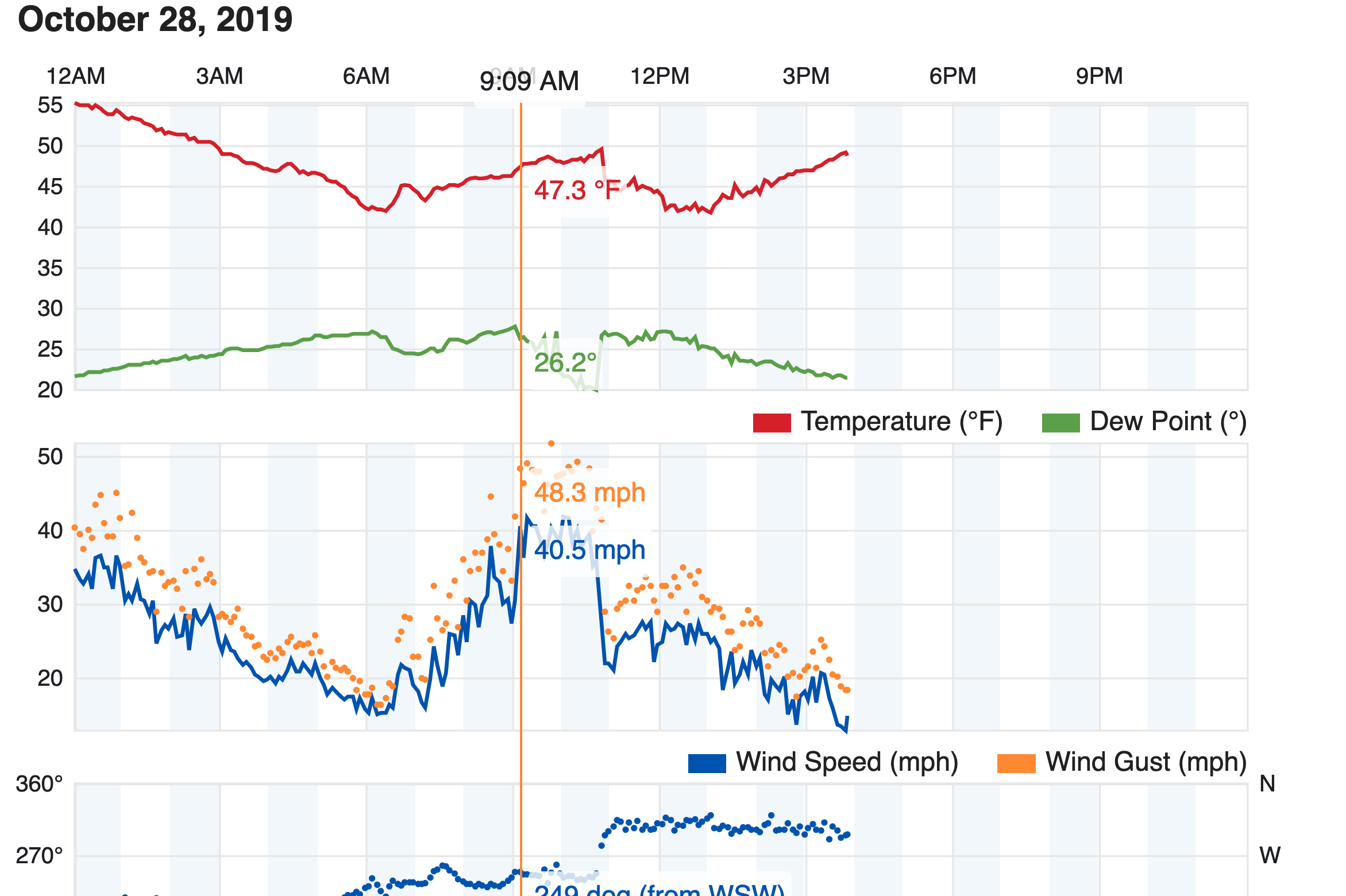

WindPlot.png is the weather station wind plot which shows that the wind
reached it peak sustained level (~40mph, gusts to 50mph) at the same
time. Apparently, the whole array got a panel mount integrity test for
~2 hours, at least for the WSW facing edges.....

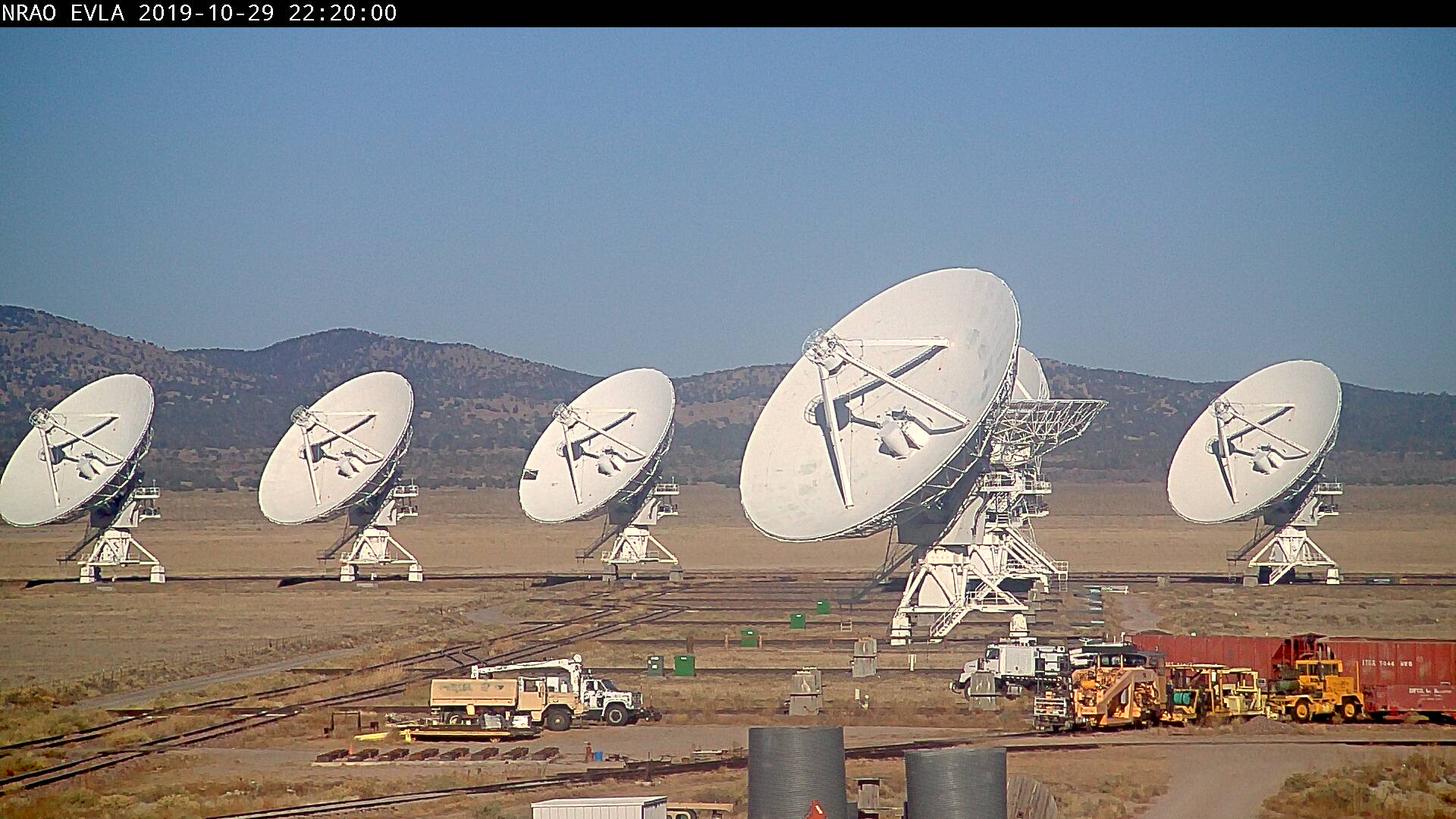

NextDay.jpg shows the antenna observing with the absent panel.
Chris and Ephraim have photos from the site guys from inside the dish,
showing some impact damage to another panel, and a view out through the gap.
-George
