[daip] Help on AIPS {External}

[Soumen Bera]

Sir, I did not understand how to run the 'STARS'. Could you elaborate with
an example?

And about the overlaying issue of Pan-STARRS images, I have already tried

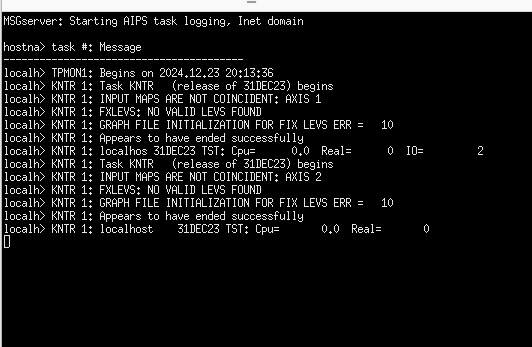

by using OHGEO or HGEOM. But it failed. It shows the maps are not

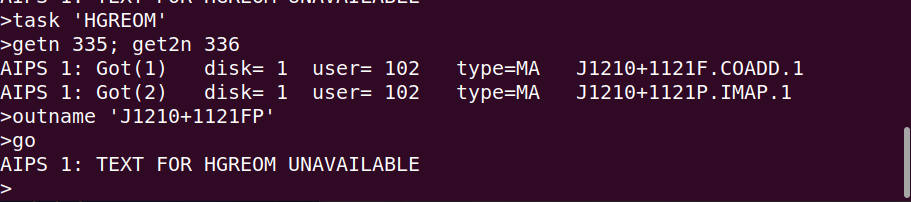

coincident either AXIS 1 or AXIS 2. However, HGREOM is unavailable. Kindly
refer to the attached images.


---
with regards,
Soumen Bera



On Sun, Dec 22, 2024 at 11:42 PM Eric Greisen <egreisen at nrao.edu> wrote:

> I am sorry but I do not see the problem.  Use OHGEO or HGREOM to put the 2
> images on identical coordinate projections.  Then STARS to make a "star" at
> the desired coordinate.  Then one of the contour tasks to make a grey scale
> of one image and contour of the other and to plot the "star".
>
> If it failed to do something pleased tell me what the failure messages
> were .
>
> Eric Greisen
>
> ------------------------------
> *From:* Soumen Bera <soumenbera.phys.rs at jadavpuruniversity.in>
> *Sent:* Friday, December 20, 2024 12:12 AM
> *To:* Eric Greisen <egreisen at nrao.edu>
> *Cc:* daip <daip at nrao.edu>
> *Subject:* Re: Help on AIPS {External}
>
> Sir, I have to overlay the radio image (contour) on the optical image
> (gray scale in the background). I have done that using the optical SDSS/DSS
> data. But the problem is that in the final image, the optical host is not
> properly visible. So, I need to mark the optical host position by a circle
> or something else.
>
> However, I am unable to produce the plot using the Pan-STARRS images as
> the optical image. I have tried using the OHGEO or HGEOM, but it failed to
> do so. If I use the Pan-STARRS instead of the SDSS or DSS, then the optical
> host might have a better visibility.
>
> I have attached an image with this email, where I would like to add a
> circle at the optical centre (lets say at the centre of the sample image).
>
> Kindly help in this regard.
>
> ---
> with regards,
> Soumen Bera
>
>
> On Fri, Dec 20, 2024 at 3:07 AM Eric Greisen <egreisen at nrao.edu> wrote:
>
> It depends a bit on what you need to do.  The task STARS will let you
> prepare a ST table with "star" coordinates and type.   Then AIPS contour
> tasks allow you to plot the "stars" on the contour image.  Alternatively,
> LWPLA makes a
> very straightforward PostScript text file which you can edit to add
> anything you like.  See the help file called POSTSCRIPT.   Circles are
> perhaps done best by the STARS route, simpler things like plus signs are
> easy to just add to the PostScript file.  Note that I always edit the
> PostScript if only to clean up the labeling.
>
> Eric Greisen
>
>
>
>
>
>
> ------------------------------
> *From:* Soumen Bera <soumenbera.phys.rs at jadavpuruniversity.in>
> *Sent:* Thursday, December 19, 2024 2:20 PM
> *To:* Eric Greisen <egreisen at nrao.edu>
> *Subject:* Help on AIPS {External}
>
> Respected Sir,
>
> Kindly help me to draw mark at a particular region with circle or place
> any mark in anywhere in the contour image in AIPS, as given in the attached
> example image figure.
>
>
