Dear VLA staff,

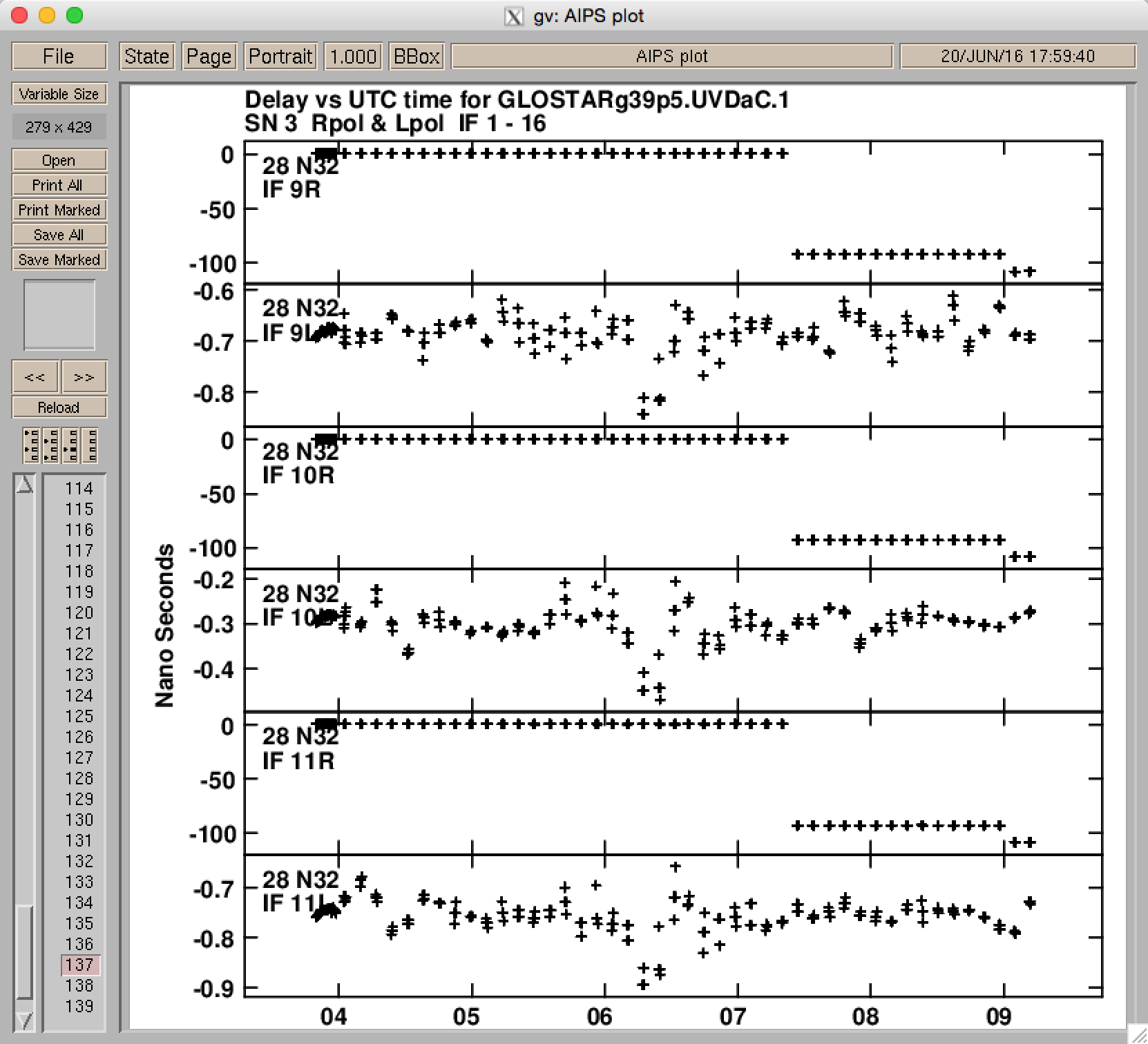

I am new the AIPS to do the calibration and found that there are large delay on antenna18, spectral window 9-16 and polarization R, as shown below:

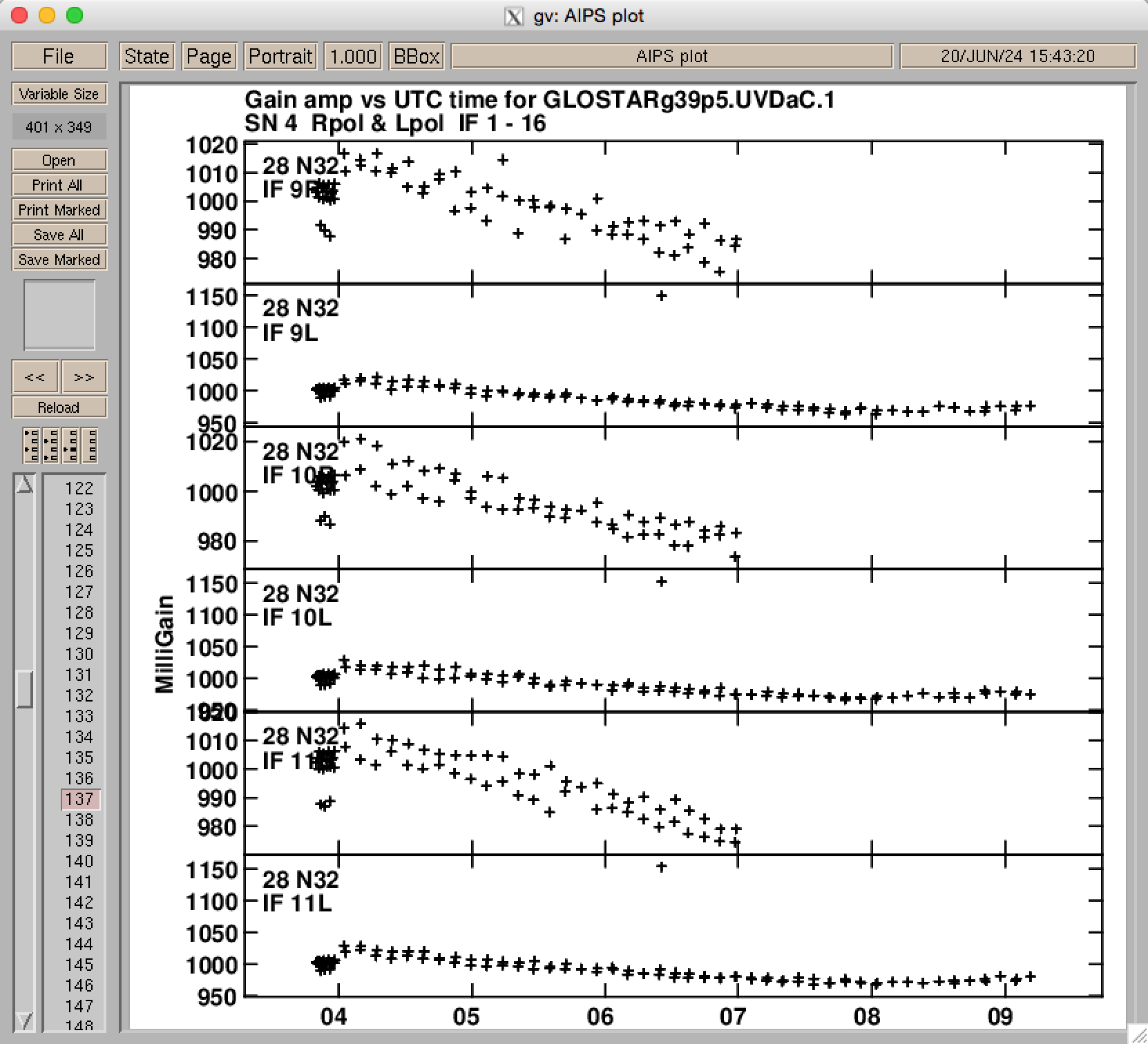

But the amplitude solution on the corresponding antenna28, spw9-16, and R seems correct, as shown in the following,



In this situation, do I need to flag the data of antenna28, spw9-16, and stokes RR?

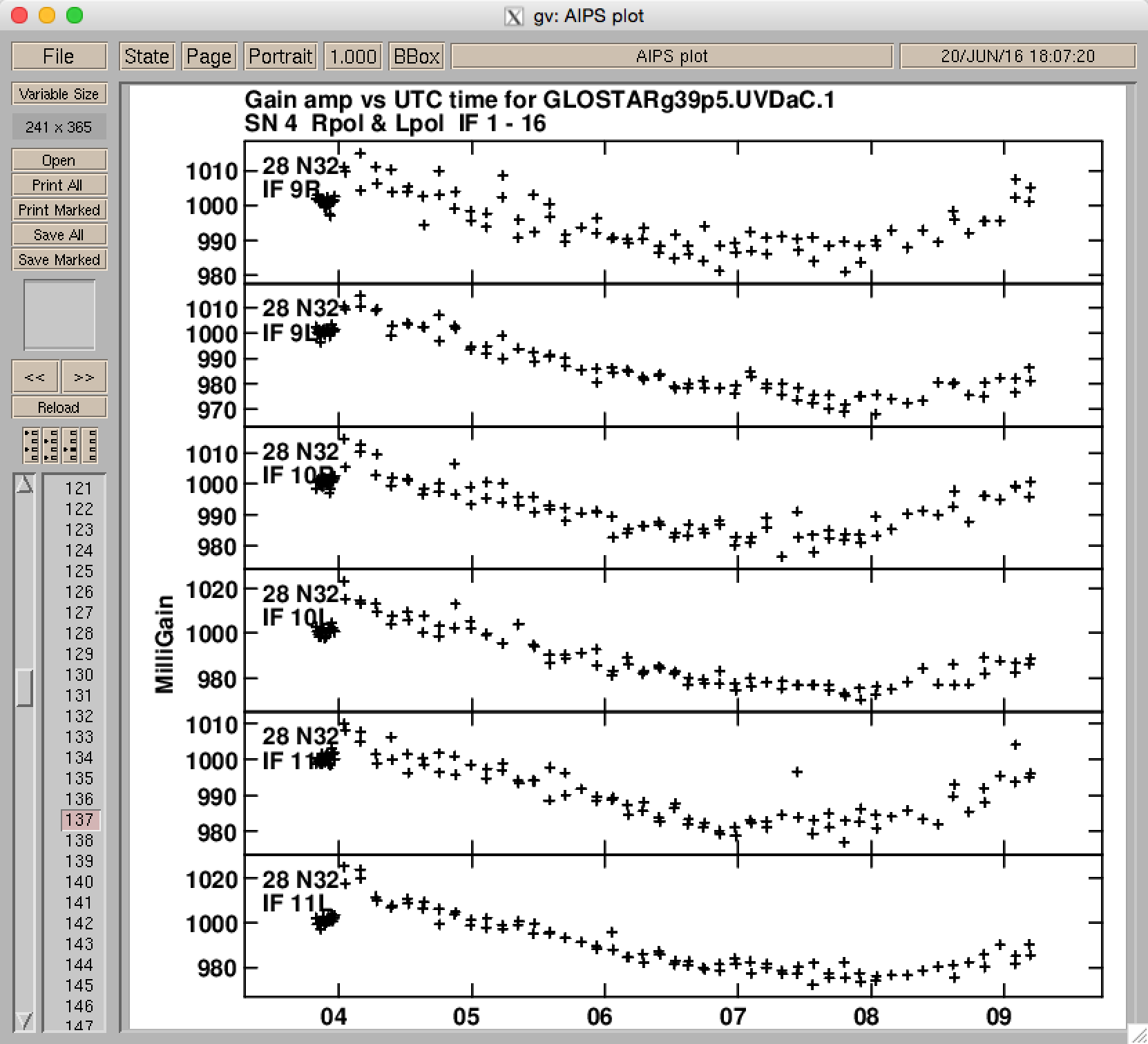

Actually, I have flagged them  and re-calibrated, but there seems to have a new outlier on L polarization for amplitude solutions, as shown below:

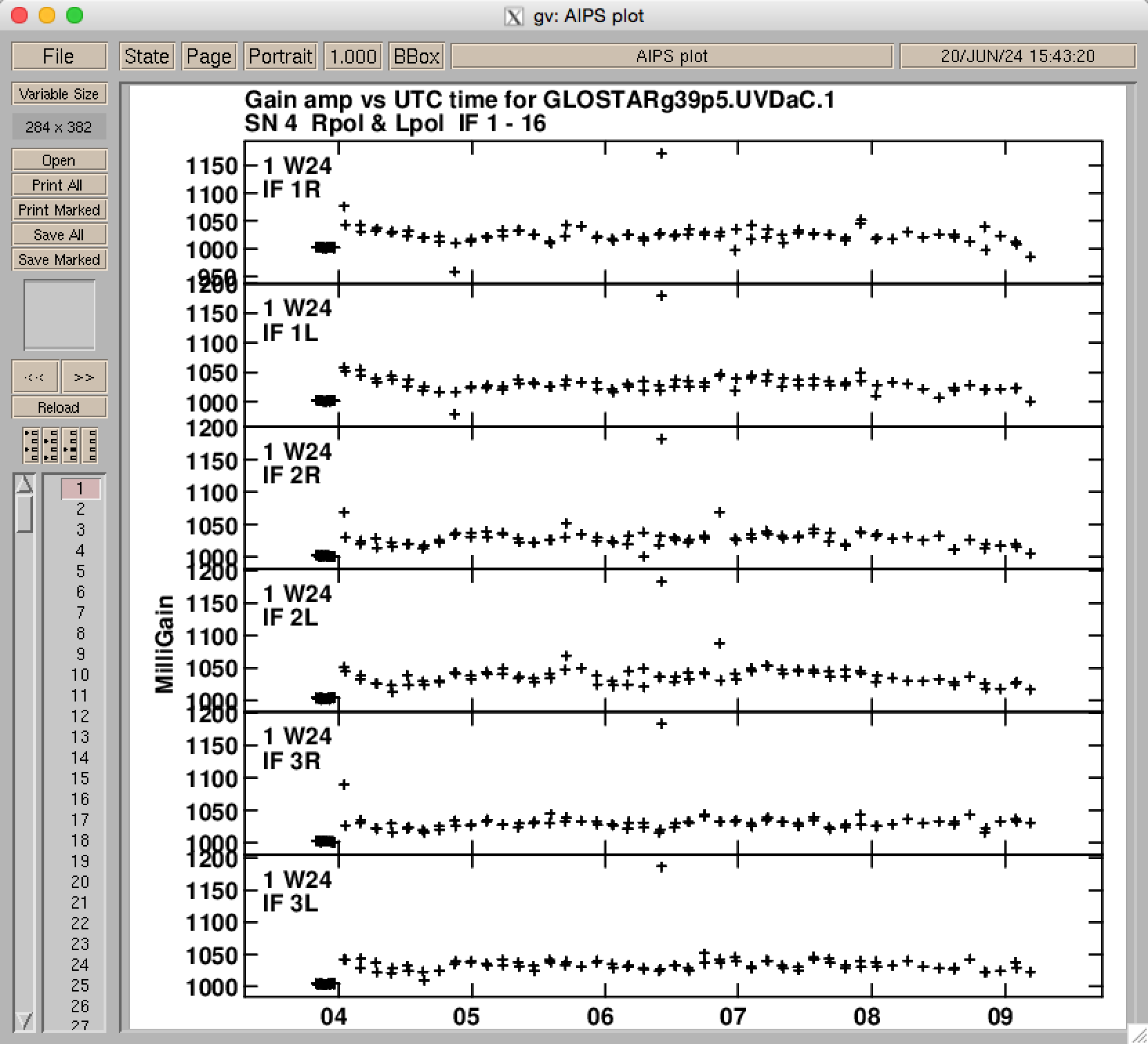

This new outlier is also present in the antenna1 to antenna20, as shown below:



I am wondering where this outlier comes from after the flag.
So do you have any idea about this, and do you have any suggestions about the situation?
Thank you very much in advance.

Cheers,
Aiyuan Yang




------------------------------------------------------
