POSSM's POLPLOT
---------------

           Ticket ID: 14070
                 URL: https://help.nrao.edu/staff/index.php?/Tickets/Ticket/View/14070
                Name: Lynn Matthews
       Email address: lmatthew at haystack.mit.edu
             Creator: User
          Department: AIPS Data Reduction
       Staff (Owner): -- Unassigned --
                Type: Issue
              Status: Open
            Priority: Default
                 SLA: NRAO E2E
      Template group: Default
             Created: 18 June 2019 05:32 PM
             Updated: 18 June 2019 05:32 PM
           Reply due: 20 June 2019 05:32 PM (2d 0h 0m)
      Resolution due: 13 March 2022 08:00 PM (999d 2h 28m)

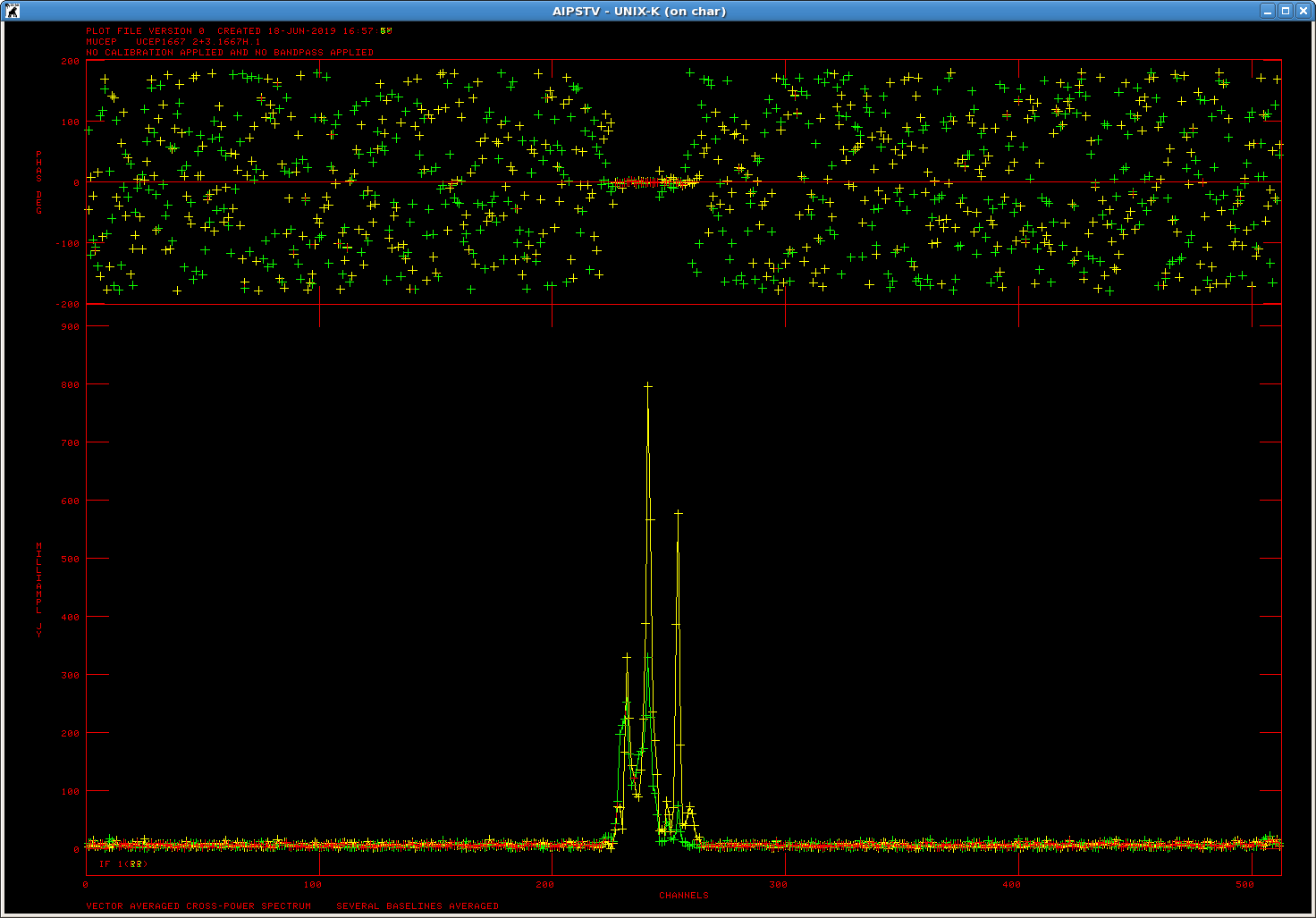

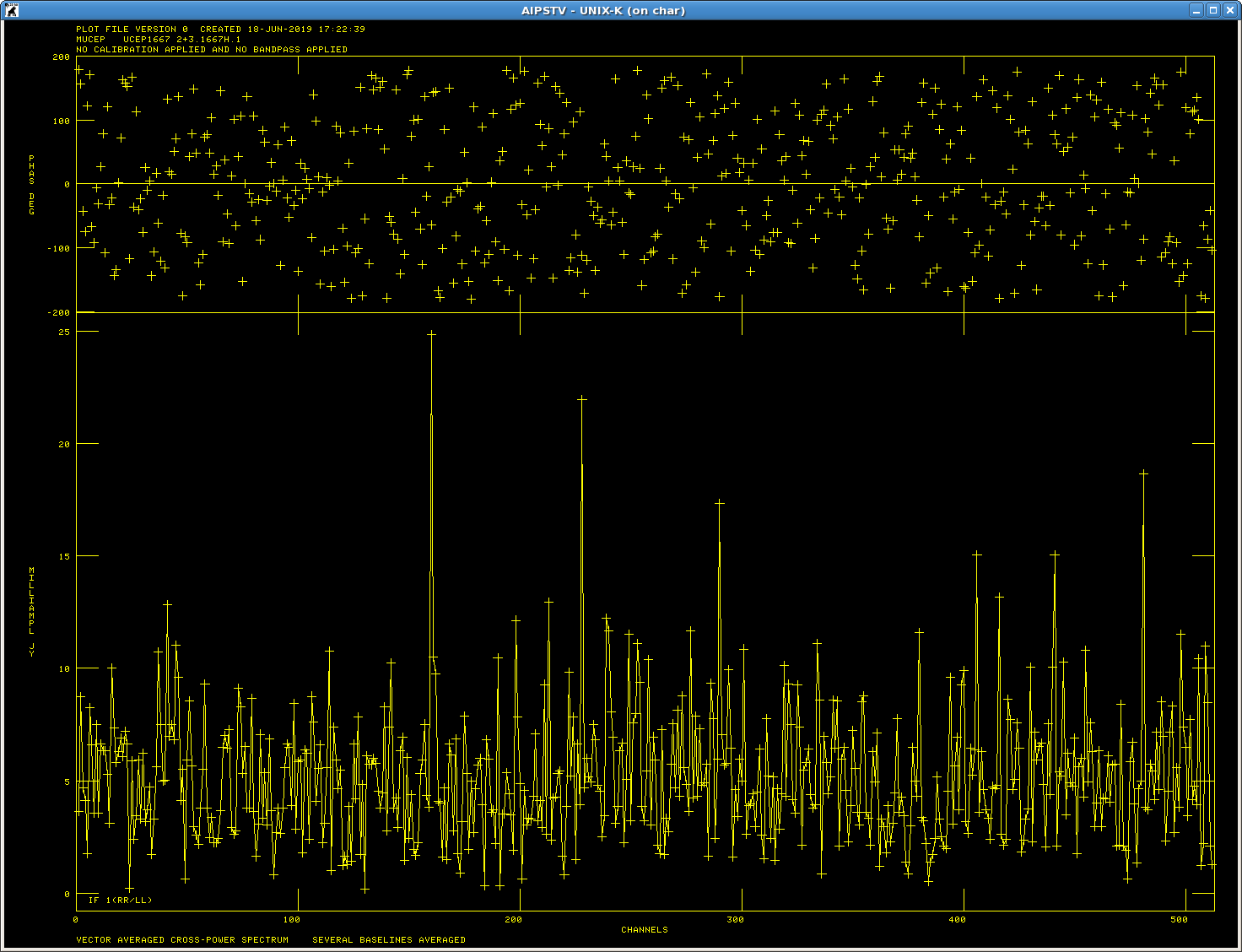

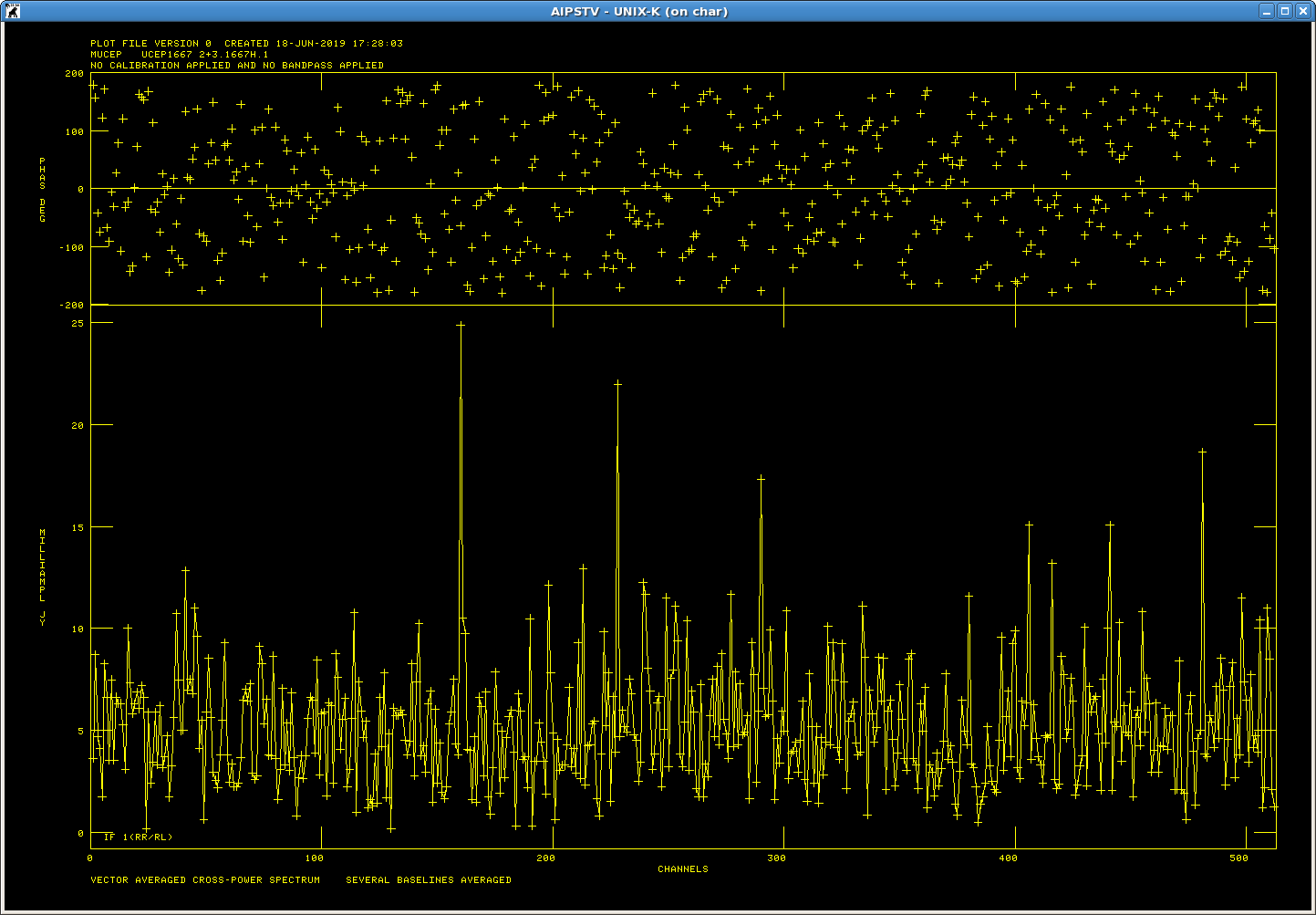

I am attempting to use POSSM's 'POLPLOT' option, but it does not appear to be doing what I expect.I have a spectral line source with strong circular polarization. The first attachment shows RR overplotted with LL. But if I then set POLPLOT='RR/LL', the ratio appears to be a constant, modulo a few noise spikes that occur in channels with no line emission (attachment 2). Indeed, the resulting plot is identical to the one I get if I specify POLPLOT='RR/RL'(attachment 3).Thank you,Lynn

------------------------------------------------------
