Hello,

I am attempting data reduction for VLBA project BL230 using the AIPS VLBAUTIL procedures, and have run into a curious issue while attempting to correct for errors in the sampler threshold using ACCOR. The steps taken were:
1. Load data into AIPS using VLBALOAD
2. Correct the Earth Orientation Parameters using VLBAEOPS (CL1)
3. Remove delays due to ionospheric dispersion using VLBATECR (CL2)
4. Decimate the data by a factor of 10 for processing using AVSPC (CHANNEL=10) and selecting only calibrator sources (CL3)
5. Attempted to derive sampler corrections using VLBACCOR.

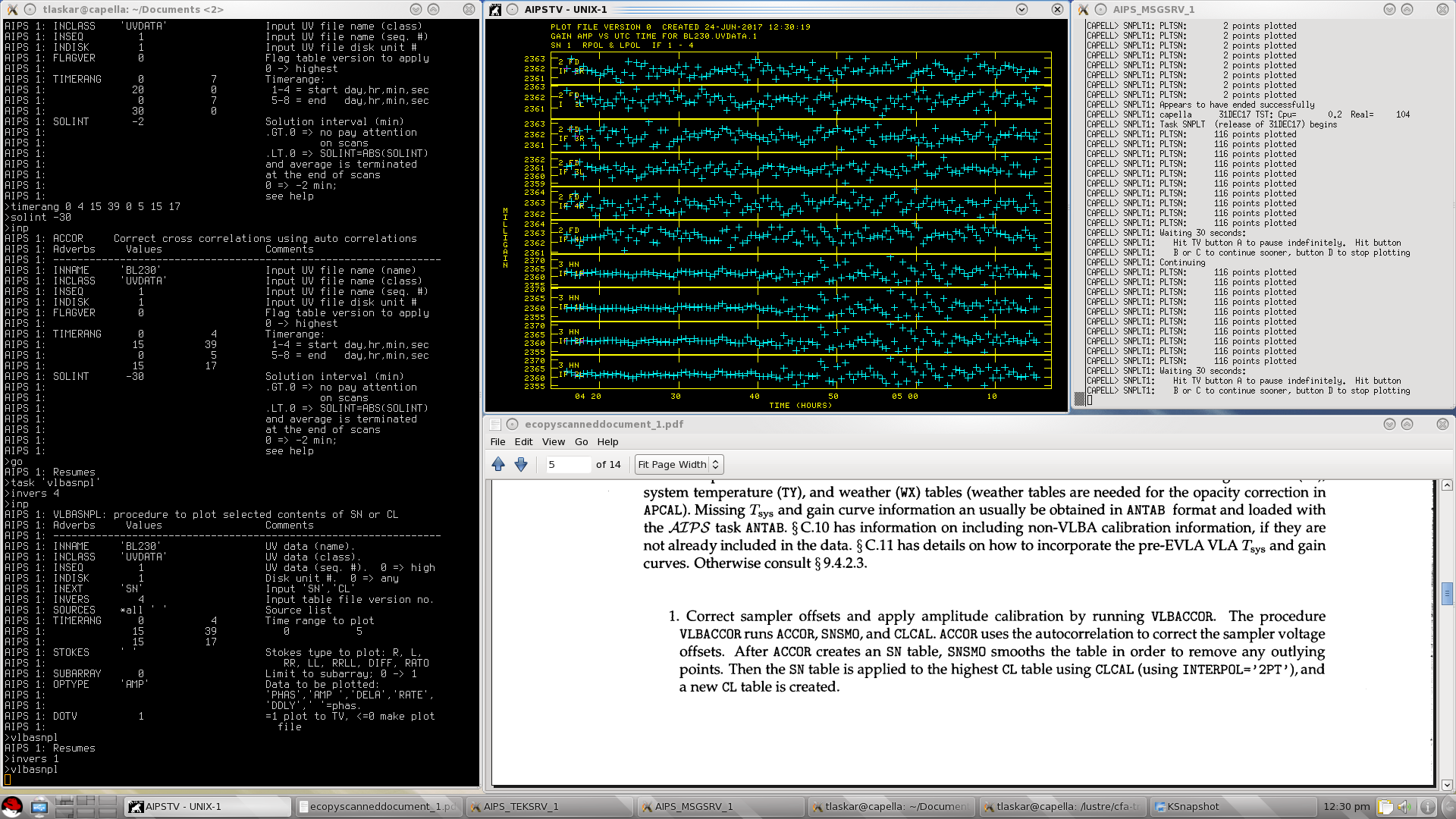

This last step generates SN1 & CL4. Upon plotting the resulting SN table, we find our solutions to be milligains ~ 2300 (see attached plot), regardless of the time range or source selected and solution interval employed. The expected values of the gain is order unity (milligain ~ 1000 rather than ~ 2300), and I am concerned about these differences. Is this a significant issue, and if so, what must be done differently?

Thanks for your help,
Tanmoy Laskar
Jansky Fellow
NRAO & Berkeley

------------------------------------------------------
Staff CP:  https://help.nrao.edu/staff
-------------- next part --------------
A non-text attachment was scrubbed...
Name: snapshot1.png
Type: image/png
Size: 314594 bytes
Desc: not available
URL: <http://listmgr.nrao.edu/pipermail/daip/attachments/20170625/c30f1728/attachment-0001.png>
