[daip] [!9168]: AIPS - clcal introducing amplitude / gain errors

[Amy Mioduszewski]

Amy Mioduszewski updated #9168
------------------------------

                 Due: - Cleared - (was: 01 November 2016 10:58 AM)

clcal introducing amplitude / gain errors
-----------------------------------------

           Ticket ID: 9168
                 URL: https://help.nrao.edu/staff/index.php?/Tickets/Ticket/View/9168
           Full Name: Alexandra Truebenbach
               Email: alexandra.truebenbach at colorado.edu
             Creator: User
          Department: AIPS Data Reduction
       Staff (Owner): Amy Mioduszewski
                Type: Issue
              Status: Open
            Priority: Default
                 SLA: NRAO E2E
      Template Group: Default
             Created: 18 October 2016 11:18 AM
             Updated: 28 October 2016 01:33 PM
      Resolution Due: 31 October 2016 11:37 AM (2d 22h 4m)



Hi Alex,

Sorry, I downloaded your data and decided to run VLBARUN (a pipeline in AIPS I wrote for VLBA data) on it.  This distracted me because your data broke the pipeline so I ended up fixing the pipeline.  Good news is that my pipeline now works on your data, I can send you the inputs I used and if you on the midnight job you will have the fixed pipeline, in case you want to try it.

Anyway, I do not find the effect you do.  After VLBAAMP the amplitudes in the CL tables vary smoothly and do not show big jumps.    VLBAAMP doesn't really have any inputs you can set, but just in case what inputs are you using?  Could you tell me what you do before VLBAAMP?  I know you say you don't get the problem if you do not run VLBAAMP.

Also you do need VLBAAMP or at least to run APCAL.  VLBAAMP runs ACCOR, SNSMO, CLCAL, APCAL, CLCAL, you could possibly run each by hand and see where the trouble comes in.  I can give you directions if you want to do this.

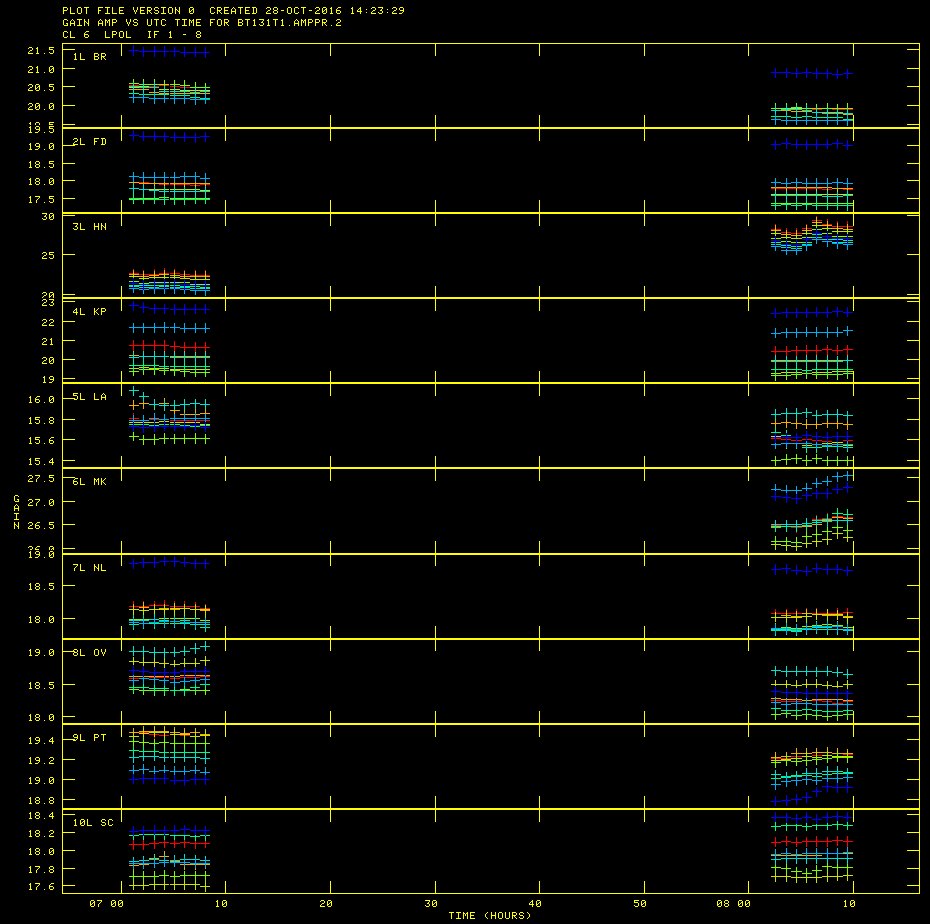

I attach the SNPLT of the CL table after VLBAAMP (just source 0216+011, other sources look OK too.).


Amy Mioduszewski
NRAO

------------------------------------------------------
Staff CP:  https://help.nrao.edu/staff
-------------- next part --------------
A non-text attachment was scrubbed...
Name: SNPLT_CL6.jpeg
Type: image/jpeg
Size: 143581 bytes
Desc: not available
URL: <http://listmgr.nrao.edu/pipermail/daip/attachments/20161028/d755ea62/attachment-0001.jpeg>
