I have noticed a problem with PBCOR that seems to occur only with EVLA data: the center of the primary beam in the corrected image is not at the phase center. A screen shot showing an example is attached.

There appears to be no problem with old VLA data. Further, things are okay for a case where I had combined VLA+EVLA data in DBCON. However, if I take the same data and instead combine them in the reverse order (i.e., as EVLA+VLA), the problem again occurs.

Lynn Matthews

------------------------------------------------------
Staff CP:  https://help.nrao.edu/staff
-------------- next part --------------
A non-text attachment was scrubbed...

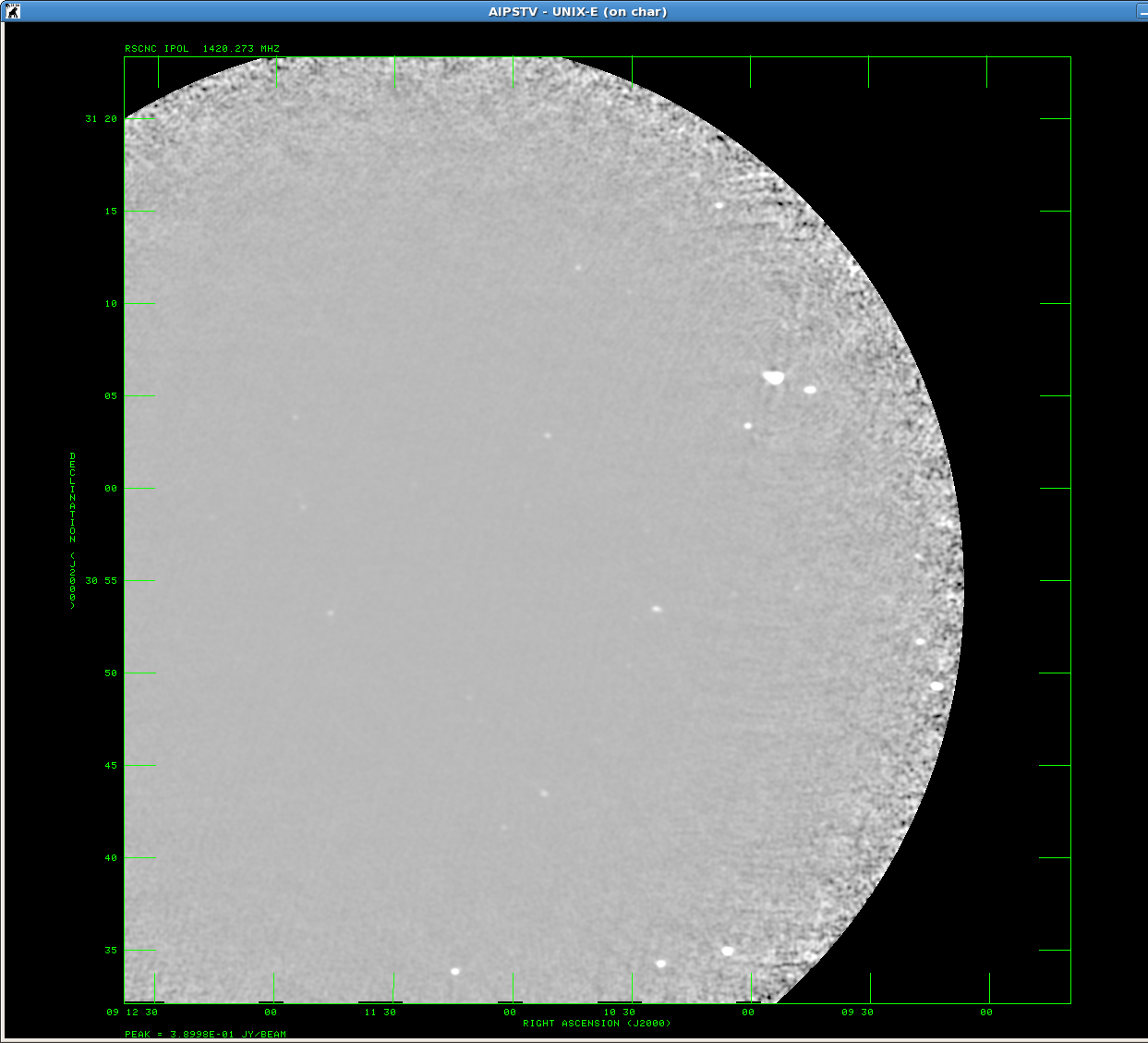

Name: EVLA_PBCOR.png
Type: image/png
Size: 490382 bytes
Desc: not available
URL: <http://listmgr.nrao.edu/pipermail/daip/attachments/20131107/f879ff30/attachment.png>
-------------- next part --------------
A non-text attachment was scrubbed...

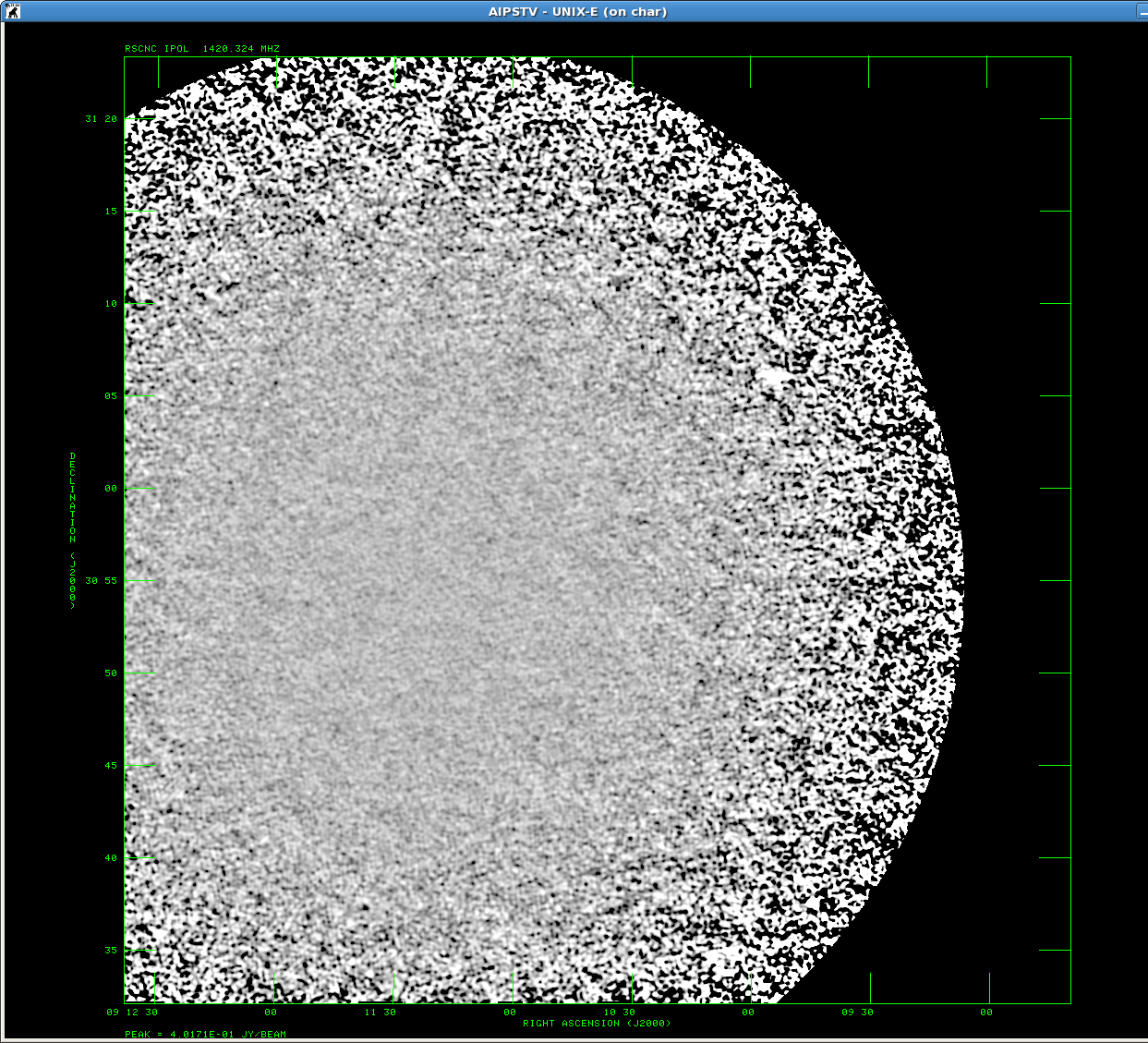

Name: EVLA+VLA_PBCOR.png
Type: image/png
Size: 1135944 bytes
Desc: not available
URL: <http://listmgr.nrao.edu/pipermail/daip/attachments/20131107/f879ff30/attachment-0001.png>
-------------- next part --------------
A non-text attachment was scrubbed...

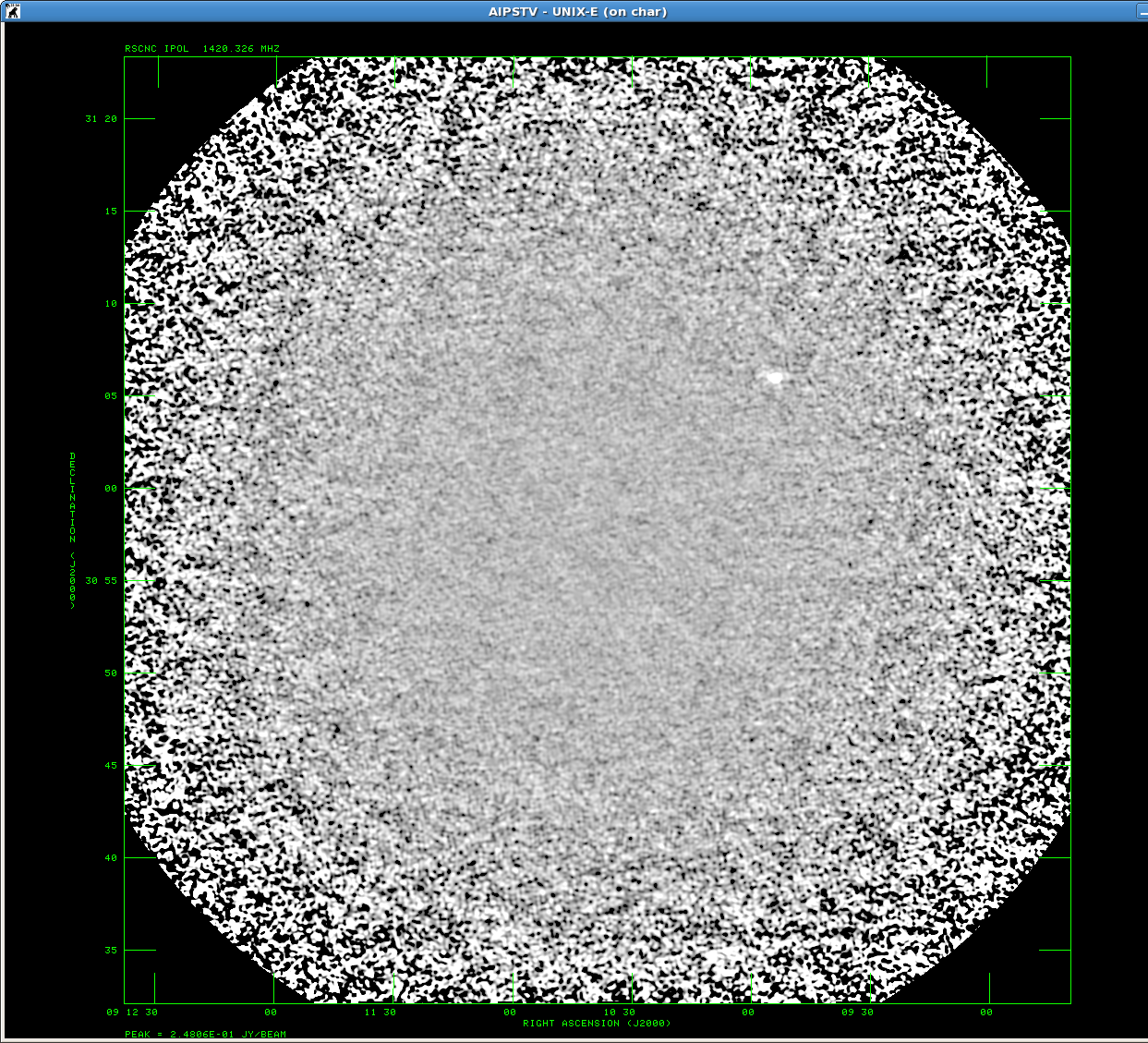

Name: VLA+EVLA_PBCOR.png
