[evlatests] Bizarre Pointing Errors

[Rick Perley]

     My recent observations of the nucleus of Cygnus A at K, Ka, and Q
bands has revealed some bizarre phenomena, clearly due to pointing issues.

     These observations were taken on three days, the first in late
September, the others over the past week.  Each has ~10 minute long
observations of Cygnus A at K, Ka and Q bands, which were preceded by a
referenced-pointing solution on the very nearby calibrator J2007+4029.

     Following the usual calibration, I used the central nucleus of
Cygnus A (~ 1.2 Jy) as a calibrator source.  At these high frequencies
and long baselines, the lobes are completely resolved out.  There is
some residual visibility from the compact hotspots, mostly noticeable in
K-band, but at Q-band, the hotspots lie right on the antenna null, so
all the VLA 'sees' is the nucleus (and some weak surrounding structure,
which is what we are interested in scientifically).

     To summarize the above paragraph:  To all intents and purposes,
Cygnus A is a 1.1 Jy calibrator source, very close to the standard
calibrator J2007+4029.

     The results from performing a calibration on the nuclear source
were quite a (disturbing) surprise.  I have attached four gain plots to
illustrate the weird phenomena.

     There are two phenomena to mention:

     1) Oscillating off-source pointing.

     Plot ea08+25-Q-Day3.png  shows the Cygnus A nucleus gain solutions
from ea08 and ea25, at Q-band.  A level of ~1000 is what we hope to
see.  (At Q-band, we're delighted if the values are between 900 and
1100).  Values greater than 1100 indicate the antenna is off-source.
Roughly, the offset in arcseconds is given by:  77*sqrt(log G), where G
is the gain value on the vertical axis).

     There are six observations, each 10 minutes long.  The gain
solution time is 6 seconds.  The elevations of the six are 83, 79, 72,
66, 60, and 53 degrees.

     Immediately apparent are sinusoidal-like gain variations at some,
but not all, of the observations.  The period is a few minutes, and the
amplitude of the gain corresponds to offsets of 70 arcseconds (for ea25)
and 30 arcsecond (for ea08).  We know these are pointing, since the
amplitude scales with frequency in the way expected, and the same
patterns are seen on the preceding observation at K and Ka bands, with
the same offsets (in arcseconds).

     These oscillating patterns are quite common, especially with these
two antennas.  A more spectacular is shown in the next plot:


     This one is from a different observation day than the preceding.
The elevations are 58, 64, and 70 degrees.  The larger offset is almost
1 arcminute.

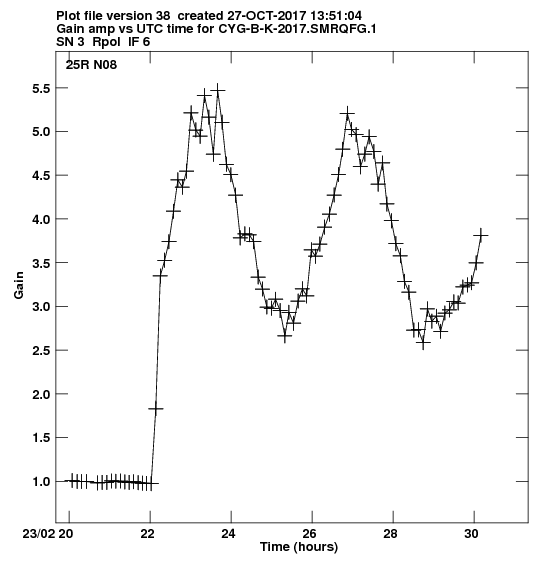

     The third plot shows how this effect can 'come out of the blue'.


     This one, from K-band, shows how ea25, in the middle of the
observation scan, suddenly decided to head way off the source -- by
*more than two arcminutes*, then begin the same oscillatory pattern.
Again, we know this is a pointing issue, since the amplitude of the
effect is much higher with increasing frequency.

     2) Antennas which decide to point elsewhere.

     Similar to the plot noted above, is the phenomenon of antennas
moving off the source, as shown in the last plot


     Here, the antennas start at the correct on-source position (since
the gains are ~1000), but after a few minutes, clearly start moving
offsource, ending up, after a minute or two, pointing off by an
arcminute or more.  In this last plot, ea15 did this on the first scan,
and ea21 did it on the second scan.  The short time-scale over which
this large error occurs is what is surprising (to me).  Since the Q-band
observation is the last in the sequence (a calibration, and pointing
calibration follows), I can't say if the offset carried over to the next
observation.

-----------------------------------------

       Ken and I discussed these results.  He notes that the oscillatory
pointing offsets are likely due to encoder calibration errors -- these
are normally found by applying the procedure 'PN3dB'.  He ran this last
night, and found a small correction for ea08, but none for ea25.  So if
an encoder issue, it's time-variable...

     In my opinion, this is a serious problem -- high fidelity
observations of large sources are impossible with this kind of pointing
behavior.  And it is much more common than we thought.
