[evlatests] Pointing failure for ea14
Rick Perley
rperley at nrao.edu
Tue Mar 24 16:33:24 EDT 2015
I ran the last ACU test this morning. Something bad occured to ea14.
The test is simply to run the referenced pointing routine (cycles
through the half power points in the four cardinal directions, plus one
on-source observation), with 20 seconds per point.

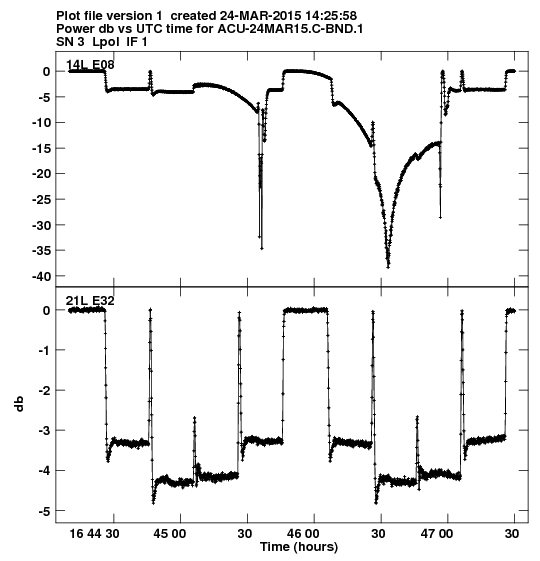

At x-band, ea14 'went crazy'. I attach a plot, showing the power
amplitudes from ea21 (bottom) and ea14 (top).
ea21 shows normal (very nice) behavior. The flat-top traces at 0
dB is the power when on-source. Between these are four flat powers near
-3 dB -- these are the four half-power positions.
ea14, upon reaching the third half-power point (an offset in
azimuth) started heading off 'somewhere else', ending up many arcminutes
away from the intended position. It eventually recovered its senses,
and got back on source near the end of the cycle (right hand edge).
This was at C-band. No other antenna behaved this way.
I have L, X, and Ku band data also -- yet to be reduced. Stand by ...
-------------- next part --------------
A non-text attachment was scrubbed...
Name: ea14Sags.png
Type: image/png
Size: 38998 bytes
Desc: not available
URL: <http://listmgr.nrao.edu/pipermail/evlatests/attachments/20150324/c9860d52/attachment-0001.png>
