[evlatests] ea17 & ea25 phase jump problem
Claire Chandler
cchandle at nrao.edu
Fri Feb 1 12:42:23 EST 2013
In the pipeline-calibrated datasets from this last week we have been
seeing phase jumps at scan boundaries on ea17 and ea25 in observations

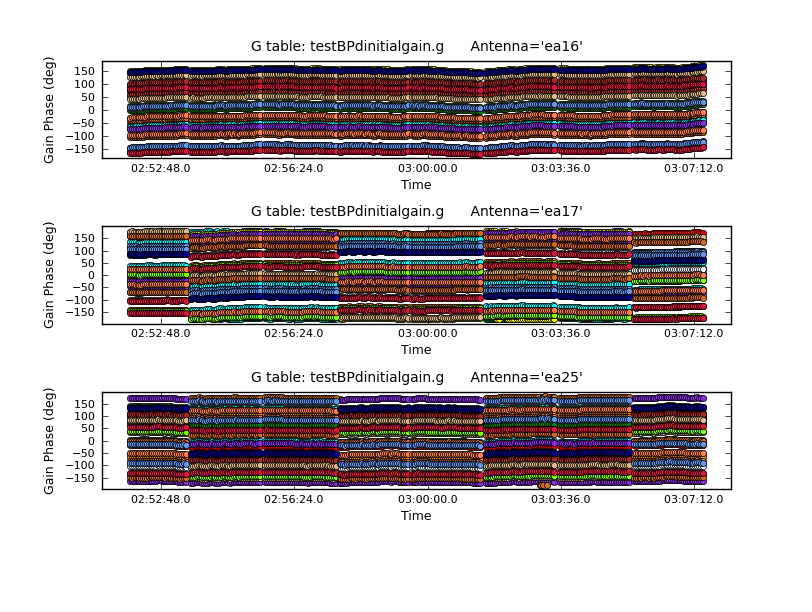

that use the 8-bit system at L, Ku, and K-bands (phase plot attached;
other bands may also be affected, but we are limited to what our observers
are using in this diagnosis). 3-bit observations do not seem to be
affected. The phase jumps occur on all 8-bit IFs (A0C0 and B0D0), and
show multiple (but stable, within scans) phase states. We are having to
advise our users to flag these two antennas completely. Is this a cable
length problem?
Claire
-------------- next part --------------
A non-text attachment was scrubbed...
Name: ea17_ea25_phase.png
Type: image/png
Size: 166398 bytes
Desc:
URL: <http://listmgr.nrao.edu/pipermail/evlatests/attachments/20130201/d107b4c2/attachment.png>
