[evlatests] A different Ka-band birdie

[Keith Morris]

On two occasions (18 March and 29 March) I have observed a birdie during
Ka-band observations at sky frequency ~34.040GHz on ea22.  The strongest
line is present in IF B, but there are other, lower-level lines in IFs A
and D.  There could be additional signals that are not detectable above
the noise in the bandpass plotting tool.

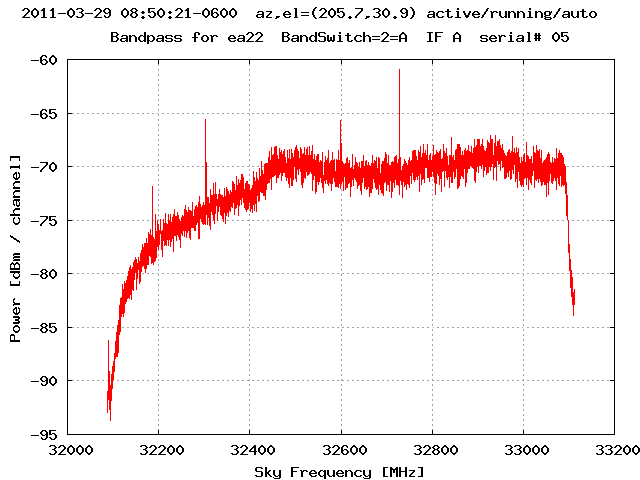

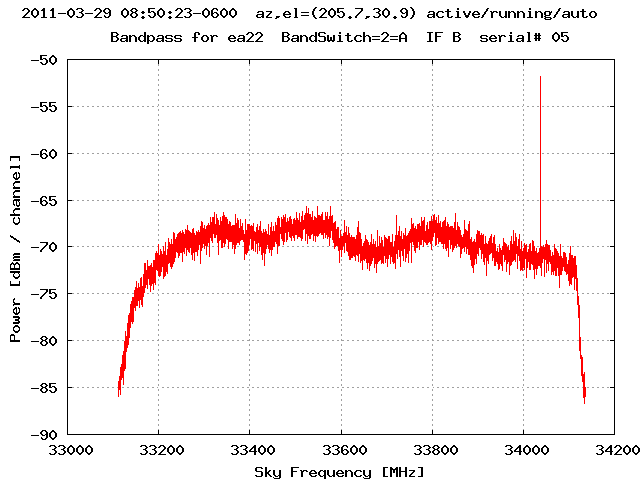

I have attached plots from 29 March as an example.


--
Keith Morris
National Radio Astronomy Observatory
1003 Lopezville Rd.
Socorro, NM 87801
575-835-7060 (phone)
575-835-7027 (fax)
-------------- next part --------------
A non-text attachment was scrubbed...
Name: evla.ea22.D.png
Type: image/png
Size: 7725 bytes
Desc: not available
URL: <http://listmgr.nrao.edu/pipermail/evlatests/attachments/20110331/a57b5762/attachment.png>
-------------- next part --------------
A non-text attachment was scrubbed...
Name: evla.ea22.A.png
Type: image/png
Size: 7803 bytes
Desc: not available
URL: <http://listmgr.nrao.edu/pipermail/evlatests/attachments/20110331/a57b5762/attachment-0001.png>
-------------- next part --------------
A non-text attachment was scrubbed...
Name: evla.ea22.B.png
Type: image/png
Size: 7672 bytes
Desc: not available
URL: <http://listmgr.nrao.edu/pipermail/evlatests/attachments/20110331/a57b5762/attachment-0002.png>
-------------- next part --------------
A non-text attachment was scrubbed...
Name: evla.ea22.C.png
Type: image/png
Size: 7769 bytes
Desc: not available
URL: <http://listmgr.nrao.edu/pipermail/evlatests/attachments/20110331/a57b5762/attachment-0003.png>
