[daip] WIPER task issue with plotting - 31DEC24 {External}

Indrajit Vittal Barve indrajit at iiap.res.in
Wed Sep 3 23:20:35 EDT 2025


Dear daip team,

Recent upgrade to 31DEC24 ended up with the following issues. We
followed the steps mentioned in the email thread below
(https://listmgr.nrao.edu/pipermail/daip/2017-August/023790.html). Still
having issues.

UVPLT, IMAGR, and other plotting tasks work fantastically. Please see
the attached screenshot images.

Kindly, someone, suggest how to solve it.

LOCALH> WIPER1: Task WIPER  (release of 31DEC24) begins
LOCALH> WIPER1: ANREFM: NO ANTENNA OR ARRAY RECOGNIZED
LOCALH> WIPER1: UVGET: doing no flagging this time
LOCALH> WIPER1: ANREFM: NO ANTENNA OR ARRAY RECOGNIZED
LOCALH> WIPER1: Not calibrating  gains  bandpass  polarization
LOCALH> WIPER1: PLOTUV: X axis in      Wavlngth        0.000E+00  6.555E+02
LOCALH> WIPER1: PLOTUV: Y axis in      Janskys         0.000E+00  7.542E-01
LOCALH> WIPER1: ANREFM: NO ANTENNA OR ARRAY RECOGNIZED
LOCALH> WIPER1: PLOTUV:     366720 Points put in array
LOCALH> WIPER1: Warning: more than 25 baselines at a single point
LOCALH> WIPER1: This will complicate flagging by baseline
LOCALH> WIPER1: Loading image smoothed by 2 pixels
LOCALH> WIPER1: Select a sub-image to edit
LOCALH> WIPER1: Set B.L.C. : button A, B, C, or D to change to T.R.C.
LOCALH> WIPER1: Set T.R.C. : button A or B to repeat other corner
LOCALH> WIPER1: Push C or D to exit
LOCALH> WIPER1: Loading image pixel replicated by44 pixels
LOCALH> WIPER1: Press buttons A, B, or C to choose an operation
LOCALH> WIPER1: Press button D for on-line help
LOCALH> WIPER1: ANREFM: NO ANTENNA OR ARRAY RECOGNIZED
LOCALH> WIPER1: Appears to have ended successfully
LOCALH> WIPER1: localhos 31DEC24 TST: Cpu=     12.9  Real=     38  IO=
      52


--
Thanks and Regards

Indrajit Vittal Barve
Engineer
Radio Astronomy Group
Indian Institute of Astrophysics
Gauribidanur
-------------- next part --------------
A non-text attachment was scrubbed...

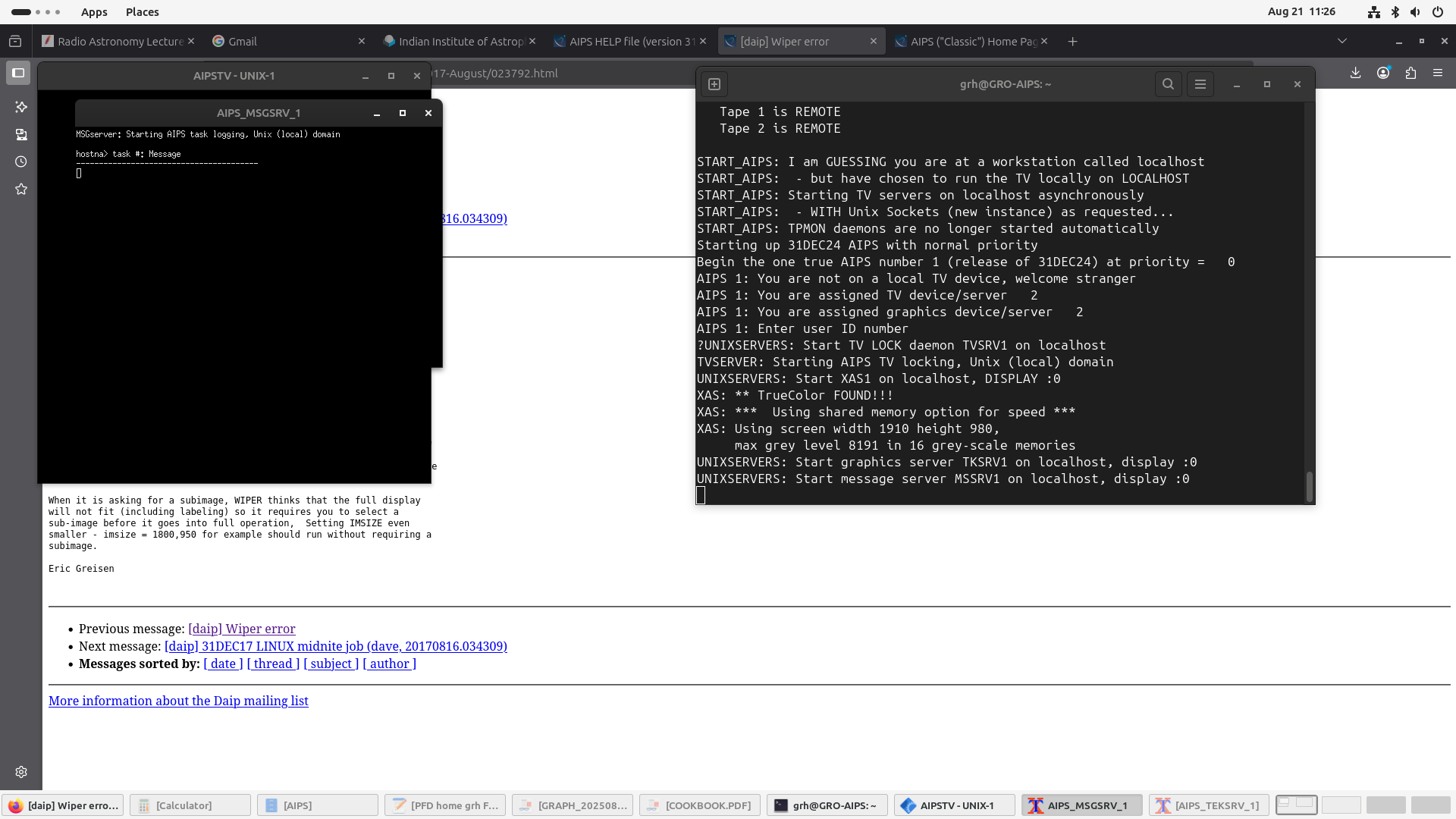

Name: AIPS_24_login_screen_resolution_1910X980.png
Type: image/png
Size: 237016 bytes
Desc: not available
URL: <http://listmgr.nrao.edu/pipermail/daip/attachments/20250904/874c6744/attachment-0007.png>
-------------- next part --------------
A non-text attachment was scrubbed...

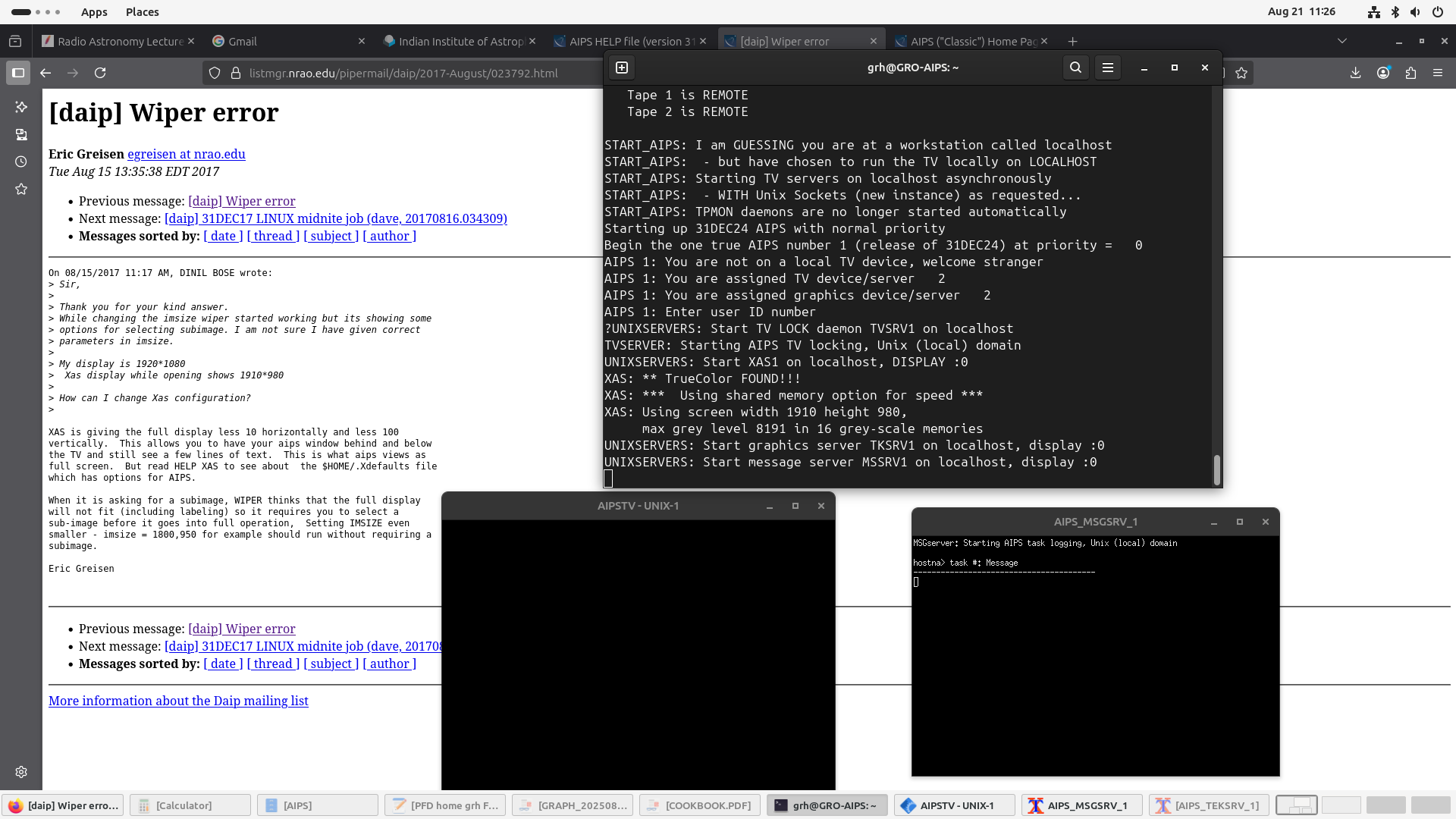

Name: AIPS_17_email_same issue_thread.png
Type: image/png
Size: 341177 bytes
Desc: not available
URL: <http://listmgr.nrao.edu/pipermail/daip/attachments/20250904/874c6744/attachment-0008.png>
-------------- next part --------------
A non-text attachment was scrubbed...

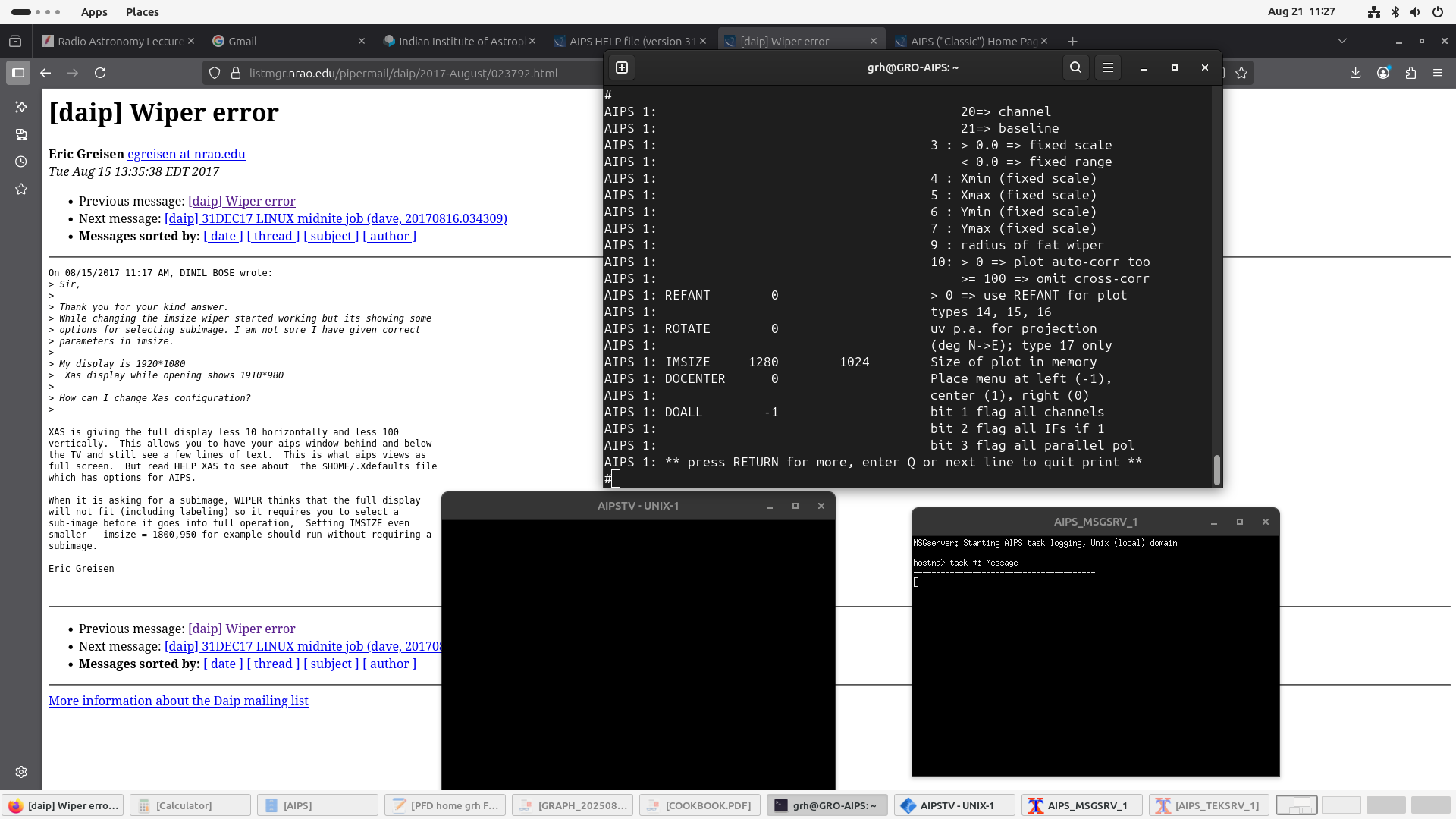

Name: AIPS_imsize_changed_asper_the_email_thread.png
Type: image/png
Size: 322691 bytes
Desc: not available
URL: <http://listmgr.nrao.edu/pipermail/daip/attachments/20250904/874c6744/attachment-0009.png>
-------------- next part --------------
A non-text attachment was scrubbed...

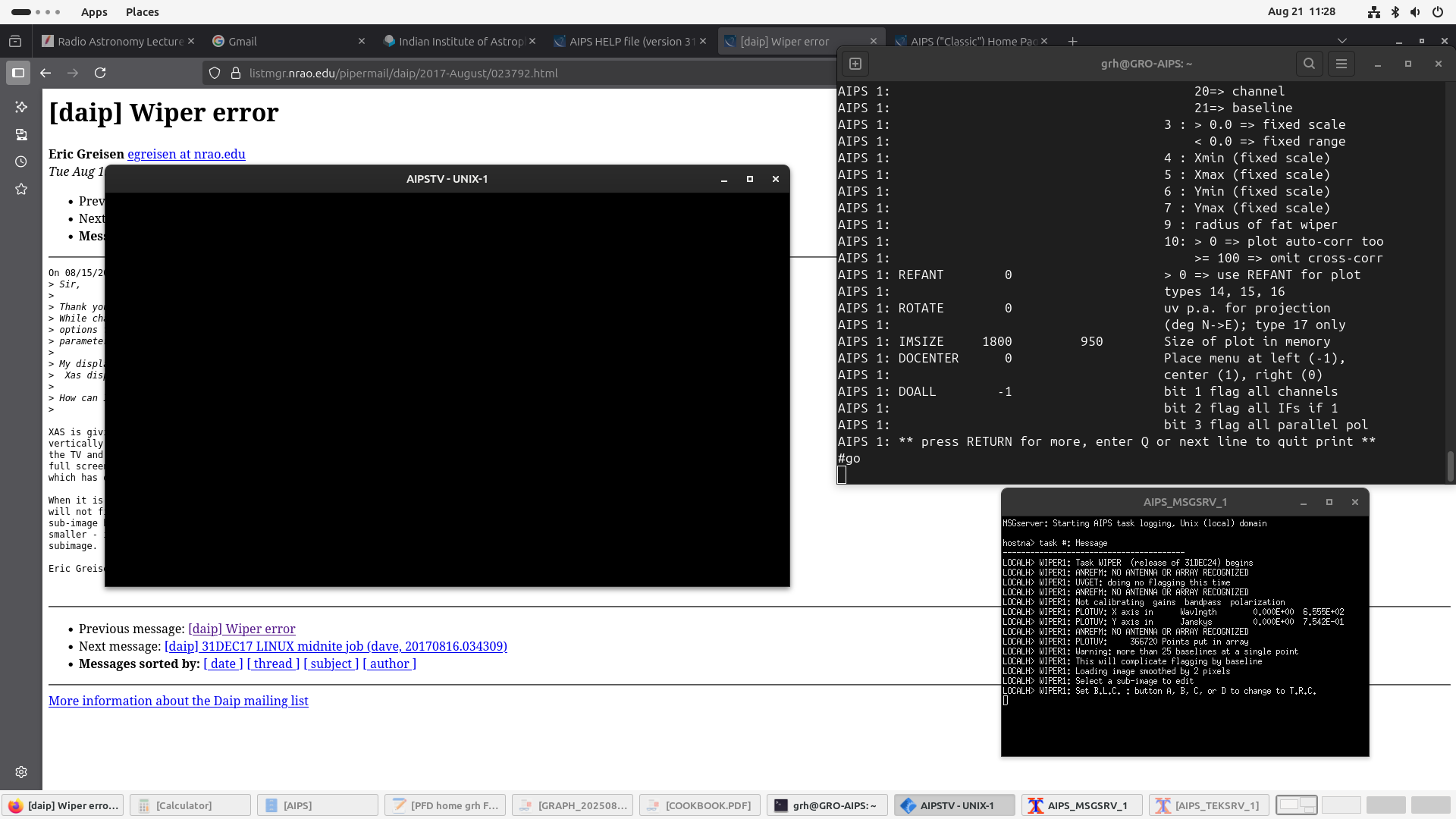

Name: AIPS_24_Wiper_start_screen_no_plotting.png
Type: image/png
Size: 251024 bytes
Desc: not available
URL: <http://listmgr.nrao.edu/pipermail/daip/attachments/20250904/874c6744/attachment-0010.png>
-------------- next part --------------
A non-text attachment was scrubbed...

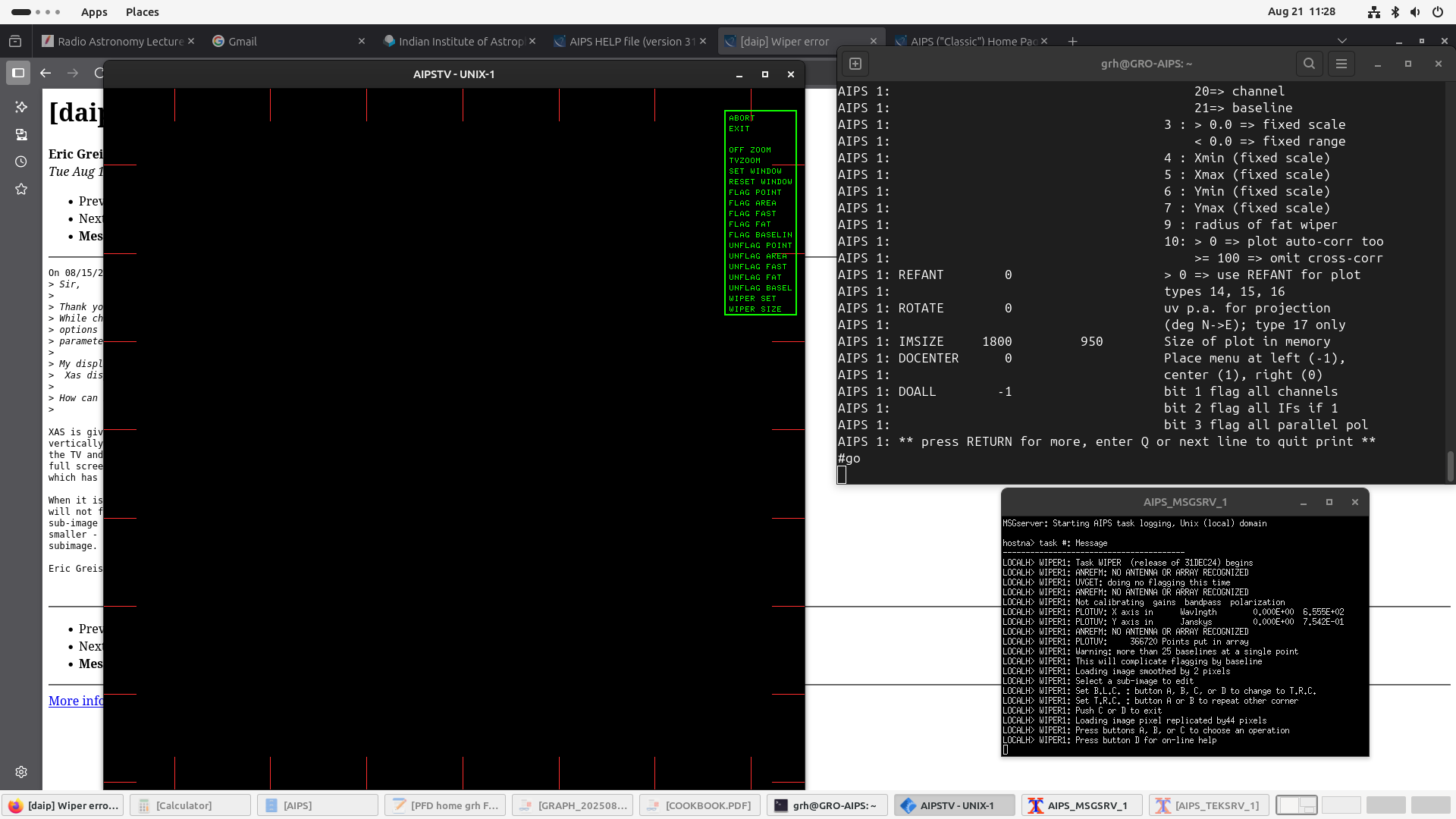

Name: AIPS_24_exit_wiper_screen_appeared_without_plot.png
Type: image/png
Size: 217906 bytes
Desc: not available
URL: <http://listmgr.nrao.edu/pipermail/daip/attachments/20250904/874c6744/attachment-0011.png>
-------------- next part --------------
A non-text attachment was scrubbed...

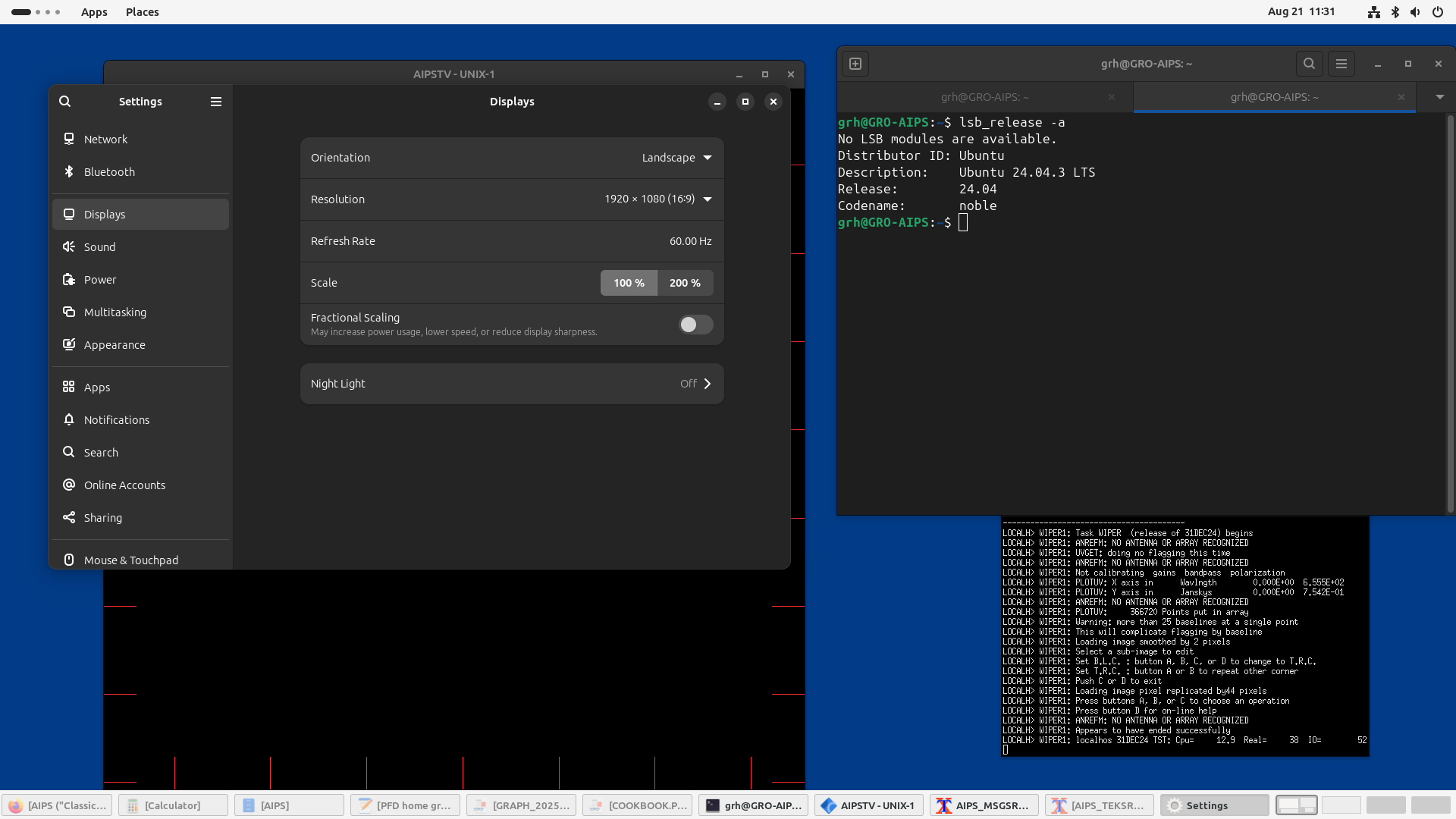

Name: AIPS_24_System_screen_size.png
Type: image/png
Size: 137316 bytes
Desc: not available
URL: <http://listmgr.nrao.edu/pipermail/daip/attachments/20250904/874c6744/attachment-0012.png>
-------------- next part --------------
A non-text attachment was scrubbed...

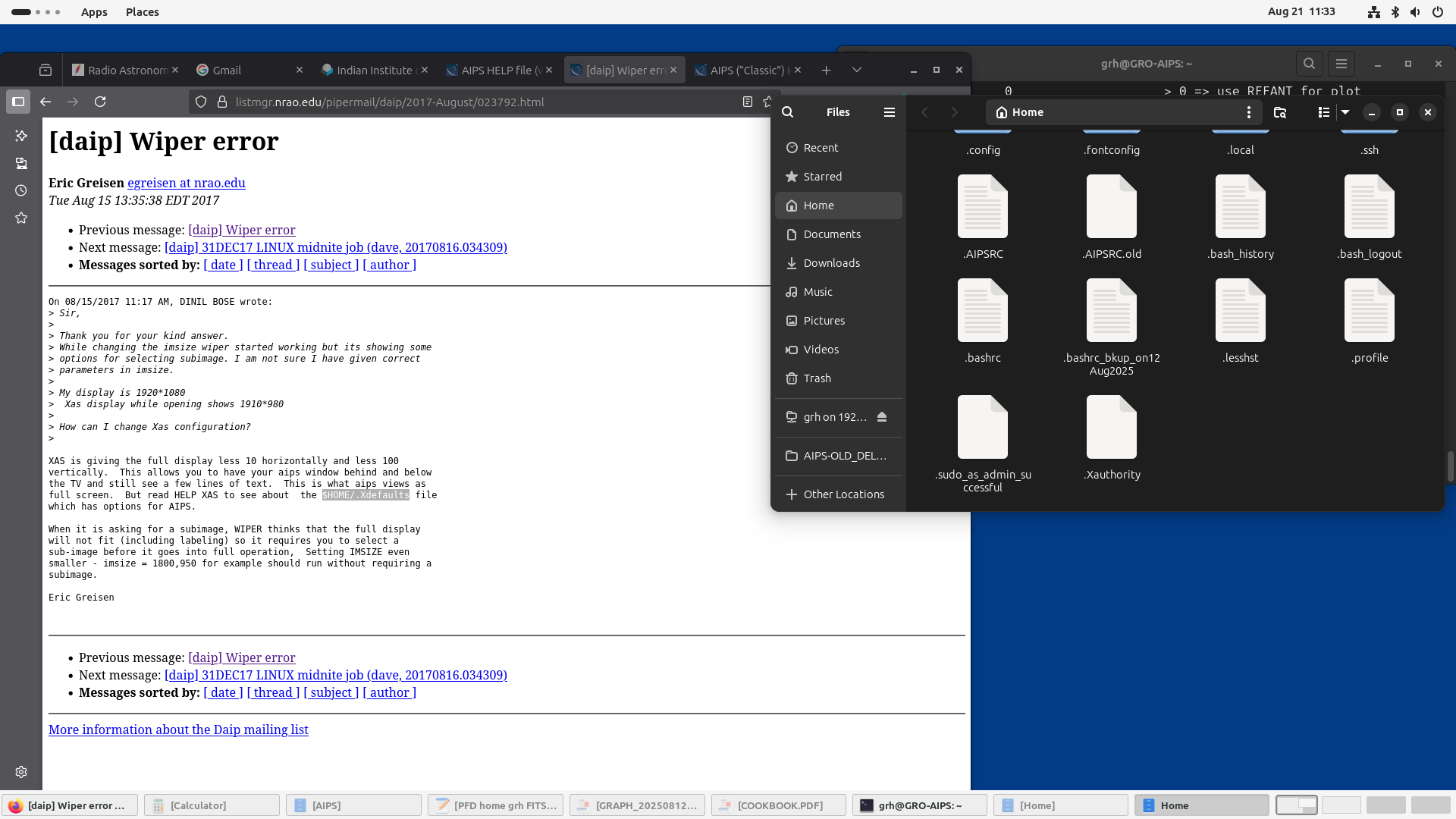

Name: AIPS_24_Xauthority_file_missing.png
Type: image/png
Size: 263668 bytes
Desc: not available
URL: <http://listmgr.nrao.edu/pipermail/daip/attachments/20250904/874c6744/attachment-0013.png>
-------------- next part --------------
A non-text attachment was scrubbed...

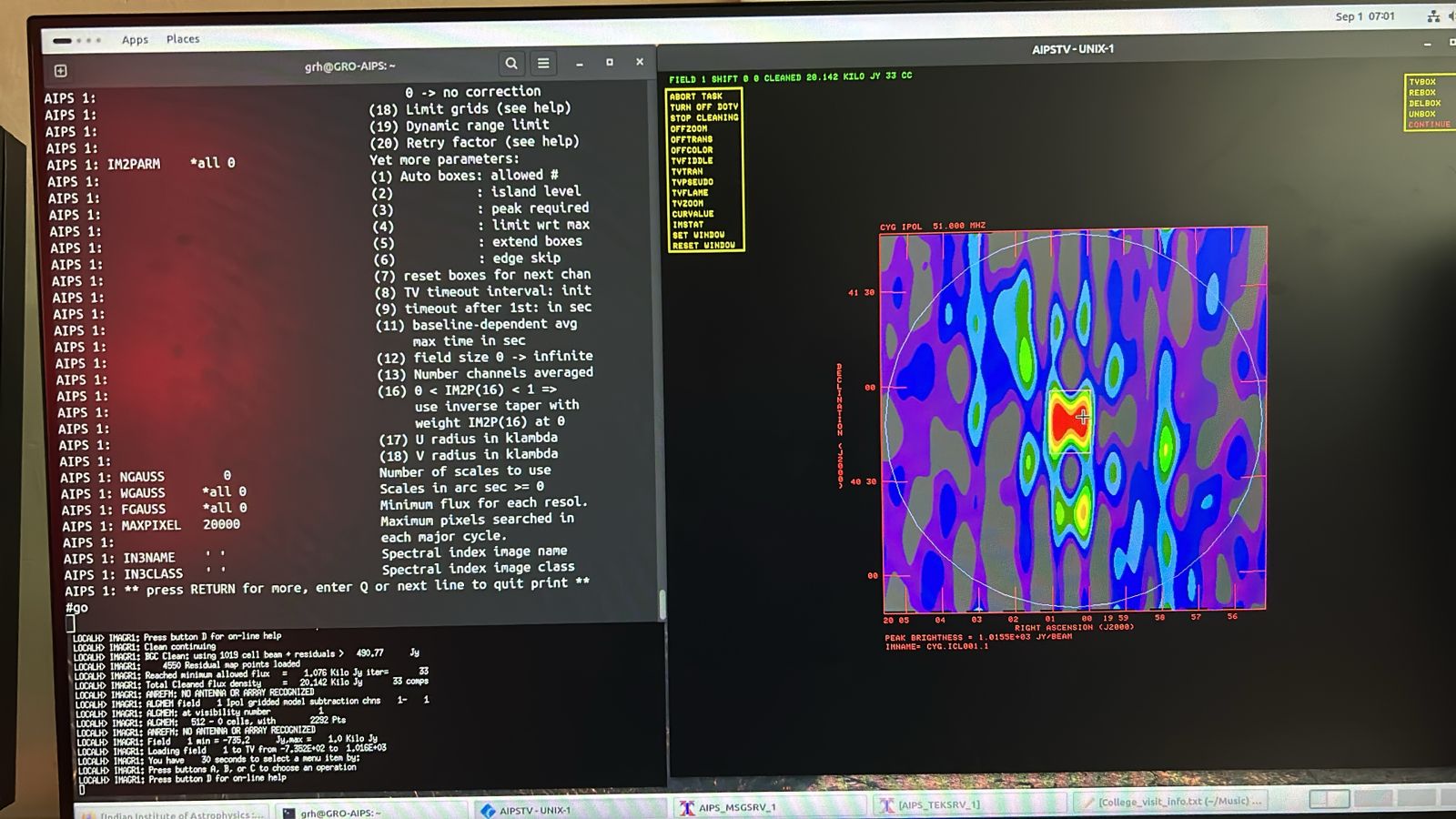

Name: AIPS_24_Imager_task_working.jpeg
Type: image/jpeg
Size: 214767 bytes
Desc: not available
URL: <http://listmgr.nrao.edu/pipermail/daip/attachments/20250904/874c6744/attachment-0001.jpeg>
