[daip] How to flag the bad data using uvflg

[Aiyuan Yang]

Dear AIPS helpdesk staff,

Hope this email finds you well.
I am new to use AIPS to do calibration and now I need to flag the bad data using uvflg.
But I am confused by the example in the section 2.2 error recognition of AIPS guidelines, which said the bad data is antenna 11, IF 2, and stokes R and the example of flag commands are as below :
"antenna 11 0
timerang 0 10 20 20 0 14 0
stokes 'rr'
bif 2
eif 2
inp please always check your input
go"

I am wondering why the stokes were being set to ‘rr’ but the bad stokes is R?

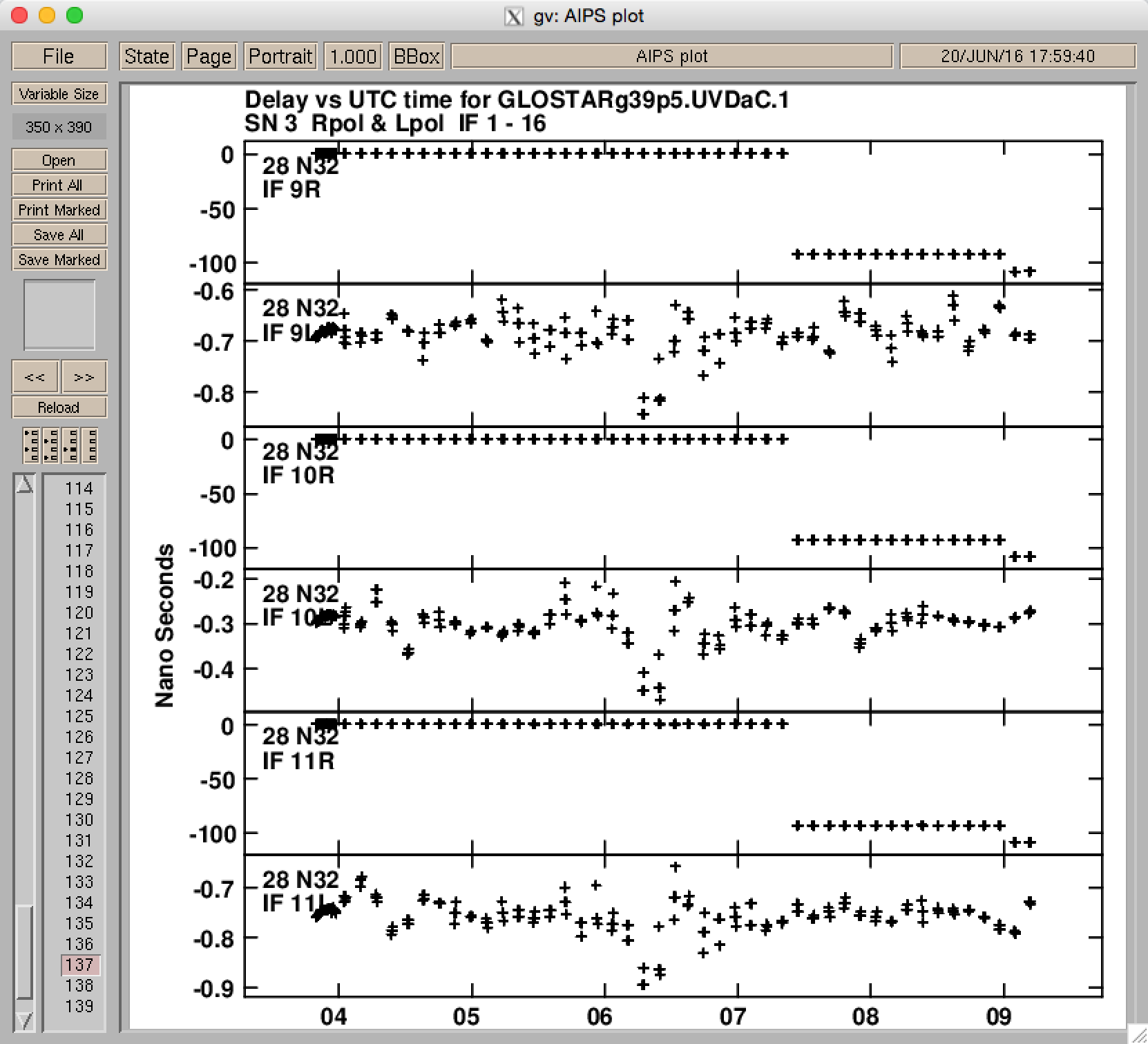

So how can I set my flag commands if my bad data are in stokes R, as shown in the figure?


Thank you very much in advance.

Cheers,
Aiyuan
