[daip] Amplitude plot for one of the Antennas not showing in SNPLT

[Abdulla Alhosani]

Dear,

I hope this email reaches you well.

I have, for the most part, followed the AIPS simple self-calibration guide.
I have run those four tasks, VLBATECR, VLBAEOPS, VLBACCOR, VLBAMPCL and,
VLBABPSS, in the order written leading to having the 5th CL  and 1st BP
tables. So far, the plots have been matching the expected from the guide. I
have attached screenshots of the plots generated from running POSSM given
the tables above with the step after bandpass calibration. I have then run

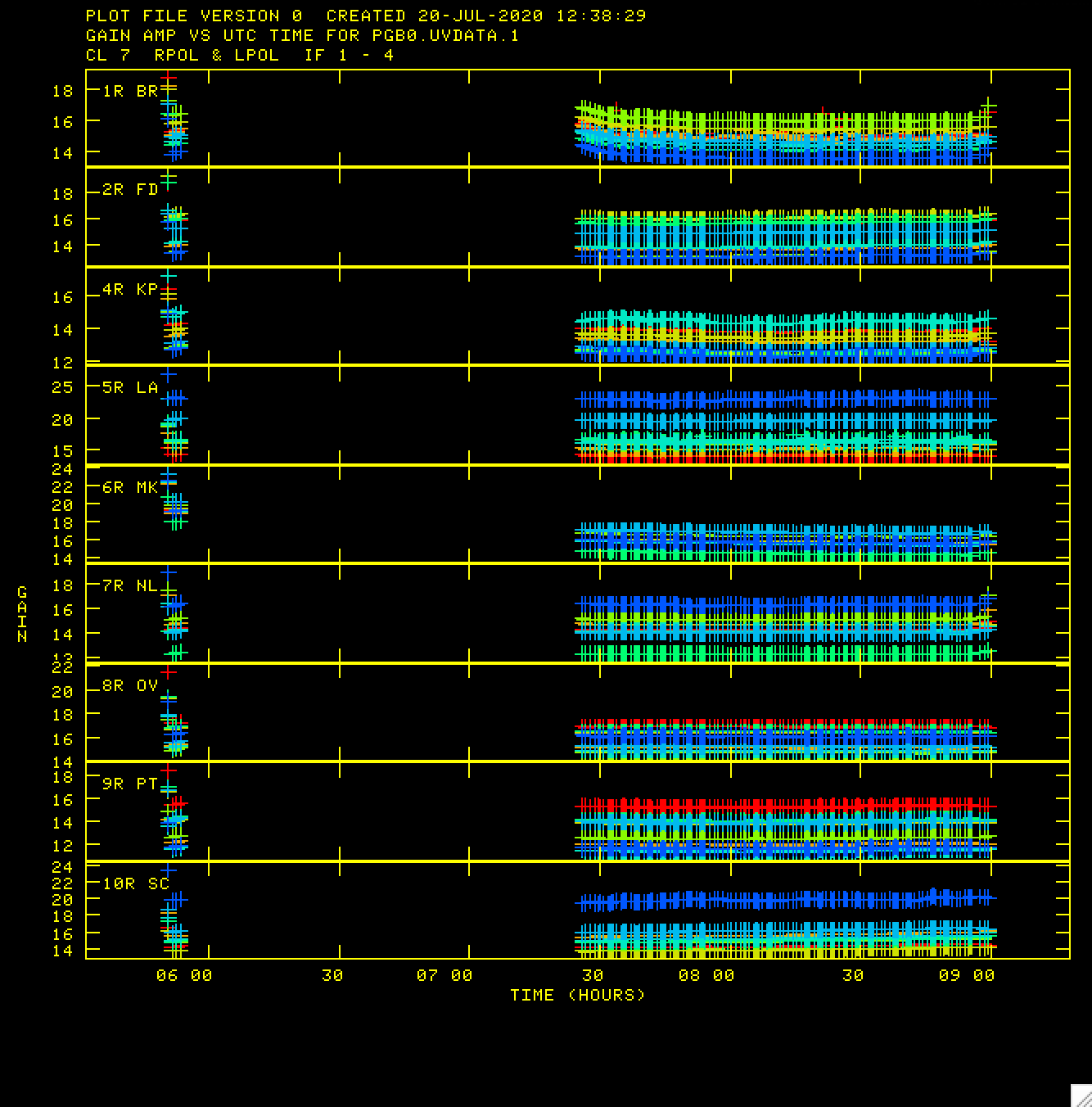

VLBAAMP which created two more CL tables and 2 SN tables. I have run
SNPLT with the inputs from the guide. However, the plots generated is
missing the one for antenna 3, Hancock. (screenshot attached as well).
Please let me know why the plot is missing.

Best,
*Abdulla Alhosani*
Rising Senior Year

New York University Abu Dhabi (Class of 2021)
*B.S. Physics*

*Mobile (UAE)*: +971 56 5613431
Email: ama1029 at nyu.edu
-------------- next part --------------
An HTML attachment was scrubbed...
URL: <http://listmgr.nrao.edu/pipermail/daip/attachments/20200722/e2727383/attachment-0001.html>
-------------- next part --------------
A non-text attachment was scrubbed...
Name: vlbaamp_CL7.png
Type: image/png
Size: 165074 bytes
Desc: not available
URL: <http://listmgr.nrao.edu/pipermail/daip/attachments/20200722/e2727383/attachment-0004.png>
-------------- next part --------------
A non-text attachment was scrubbed...

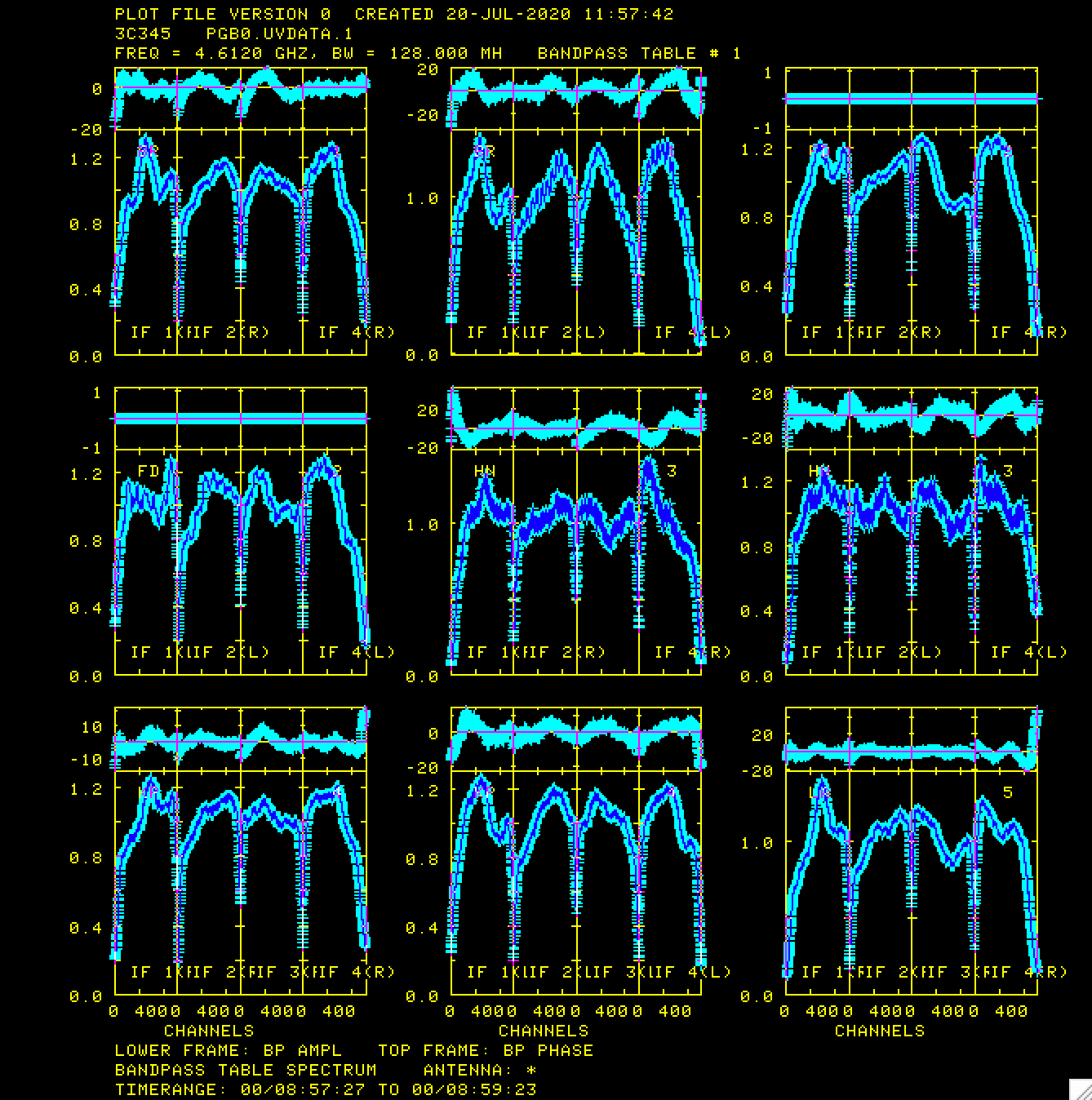

Name: POSSM_CL5_BP1_1.png
Type: image/png
Size: 224834 bytes
Desc: not available
URL: <http://listmgr.nrao.edu/pipermail/daip/attachments/20200722/e2727383/attachment-0005.png>
-------------- next part --------------
A non-text attachment was scrubbed...

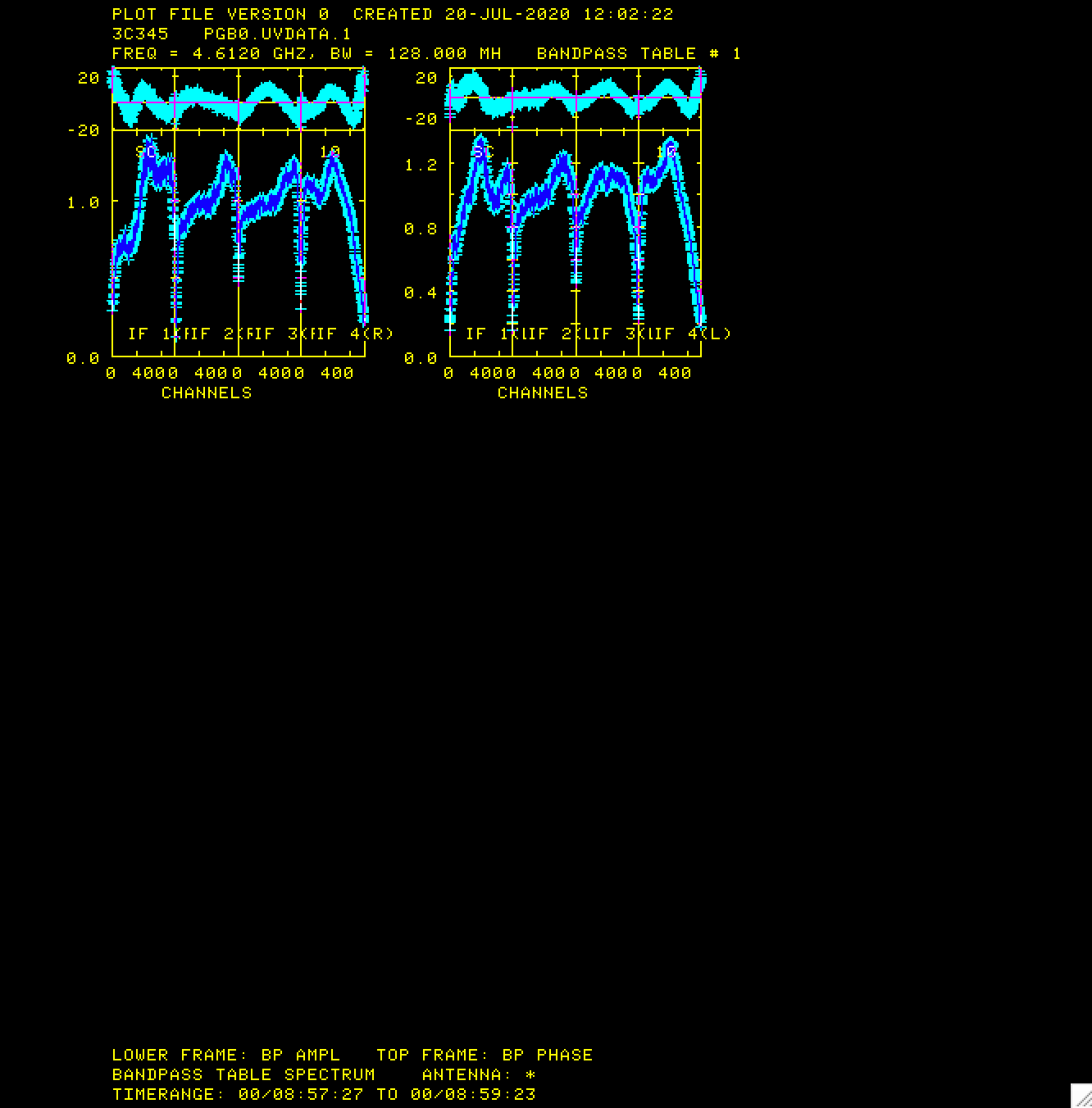

Name: POSSM_CL5_BP1_3.png
Type: image/png
Size: 95325 bytes
Desc: not available
URL: <http://listmgr.nrao.edu/pipermail/daip/attachments/20200722/e2727383/attachment-0006.png>
-------------- next part --------------
A non-text attachment was scrubbed...

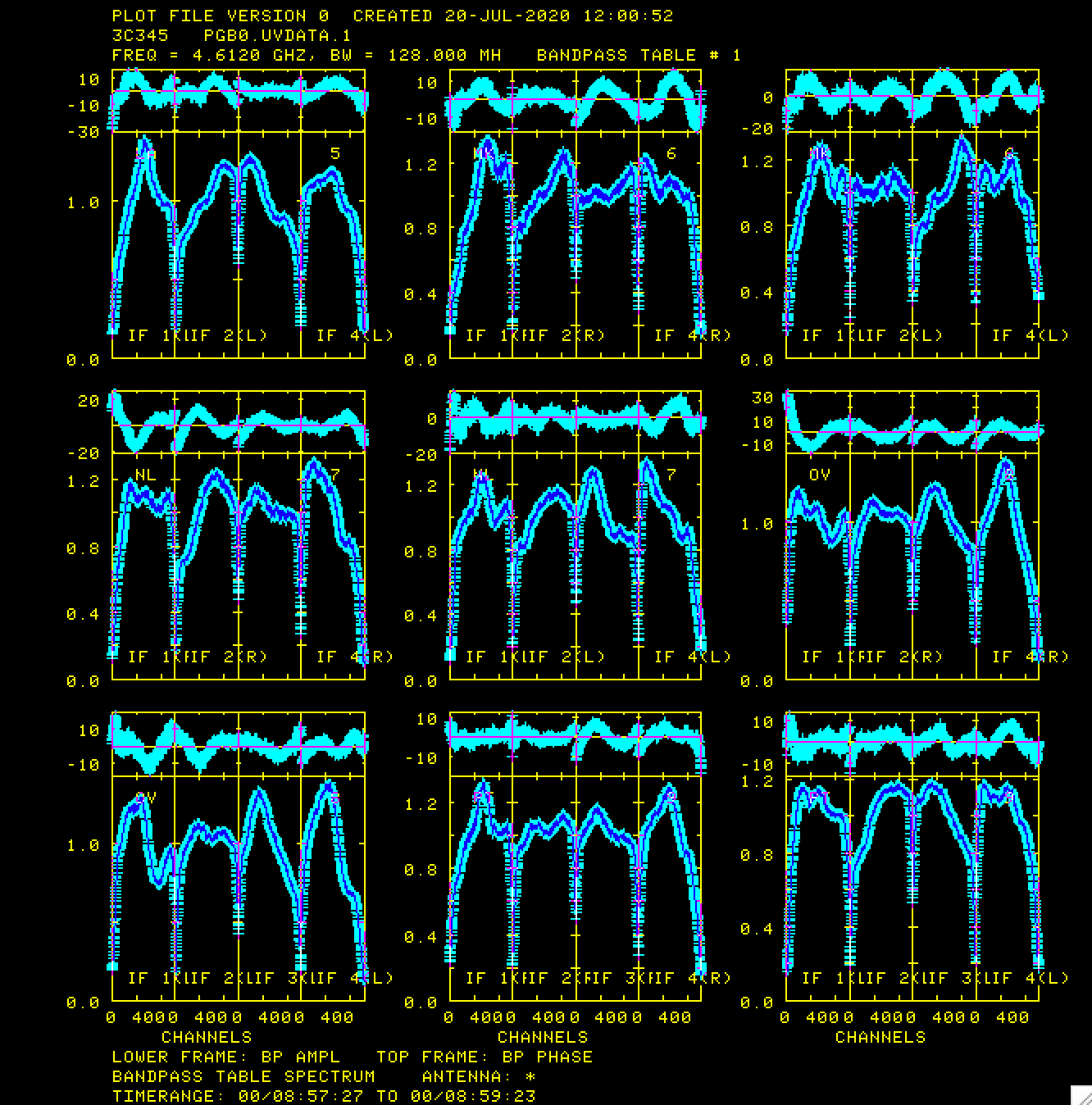

Name: POSSM_CL5_BP1_2.png
Type: image/png
Size: 227998 bytes
Desc: not available
URL: <http://listmgr.nrao.edu/pipermail/daip/attachments/20200722/e2727383/attachment-0007.png>
