There is a simple explanation for the R-L phase differentials -- a
differential tilt between the two antennas. If the two antennas' poles
point in slightly different directions, the parallactic angles seen by
each are different, which results in a different measured phase for the
two polarizations.
For the 'RR' correlation, the phase difference is -(delta par angle),
for the 'LL' correlation, it is +(delta par angle), so the R-L
difference is twice the difference is parallactic angle between the two
antennas.
This effect is independent of band -- it is purely geometrical.
To show how these differentials vary with source declination, I
generated plots for the four sources observed: 3C286 (dec = 30.5),
OQ208 (dec = 28.5), 3C287 (dec = 25.2), and 3C273 (dec = 2.1). I
generated curves for a E-W tilt, and a N-S tilt.

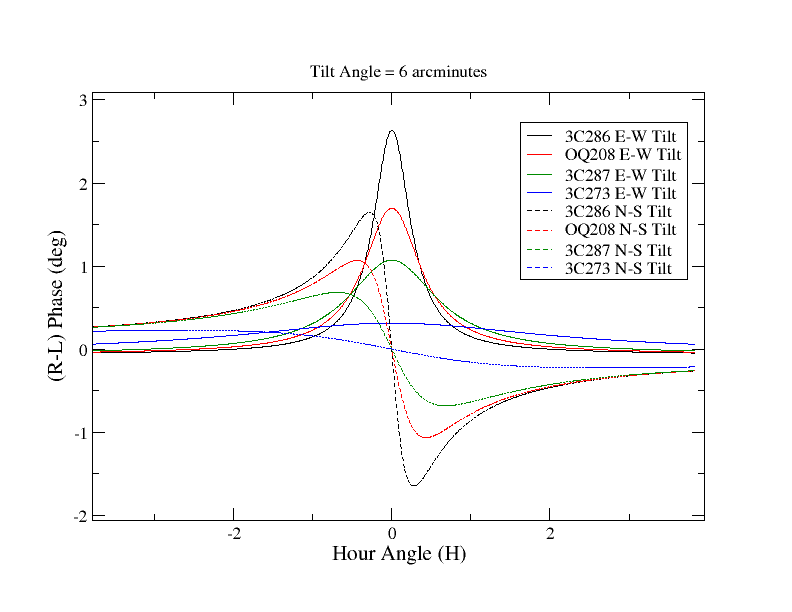

Attached is the resulting plot, showing the predicted R-L phase in
degrees as a function of Hour Angle, for the four sources. Solid lines
are for an E-W tilt, Dashed lines for N-S tilt.
The match to the observed data is extremely good. (To be fair, the
match to the largest of the 'even' tilts is extremely good). But I bet
that a suitable combination of E-W and N-S tilts would give a good fit
to almost all of the data.
There is only one problem -- the amplitude of the tilt required to give
the size of the observed phase is about 5 times larger than the largest
measured tilt. The plots were generated with a tilt differential
(between the two antennas) of 6 arcminutes.
So, if this model has any relevance, it begs the question: How do we
measure the antenna tilts? Are these tilts different than those used in
the model?
Rick
